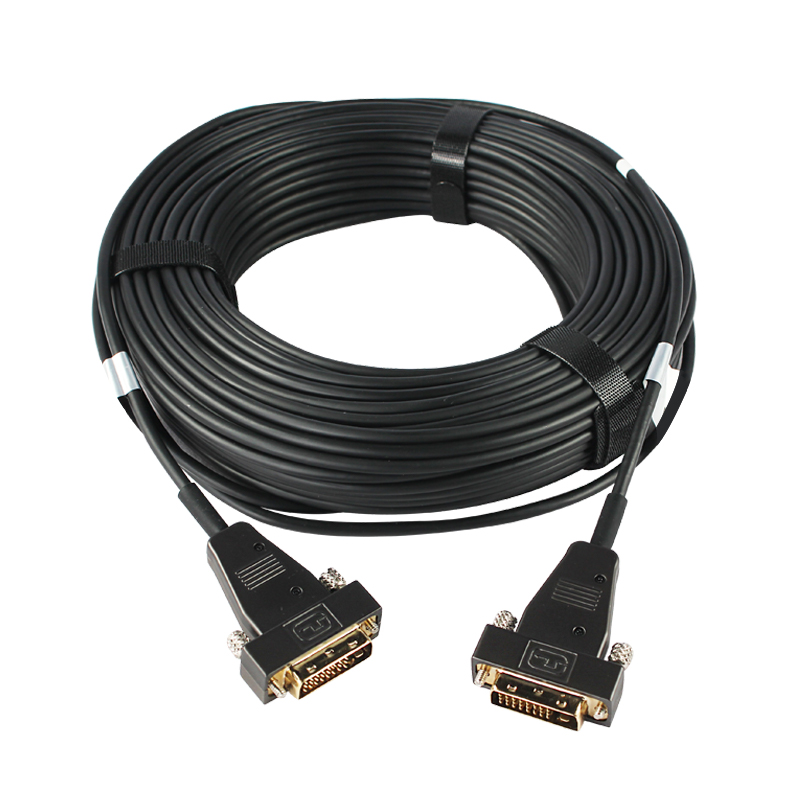

DVI-D aoc fiber extend cable ,18G ,4096x2160P/60Hz, 10m-100m

  • Support 4096x2160P/60Hz resolution

  • DVI-D Single Link (18+1) for resolutions up to 1920x1200@60HZ

  • Gold plated precision mating contacts, EMI protection, low attenuation

  • DVI-D (18+1) male to LC female, full metal housing

  • Zero frame delay delay and compression free transmission

  • description

  •     DVI-D aoc fiber extend cable ,18G ,4096x2160P/60Hz, 10m-100m

      AOC cables greatly exceed the capabilities of copper conductors. Cables Gefen HDTV Fiber Optic DVI-D is an active electro-optical solution: the cable connectors are built converters and transmitting optical modules.
    The structure of the cable is hybrid: there is a fiber optic for video signals and copper conductors for power transmission and DDC signals. Given the size of the cable connectors,
    when laying, it is necessary to use cable channels with a diameter of at least 25 mm. Cables support transmission of HDCP protected signals and are available in lengths from 10 to 100 meters.







      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
