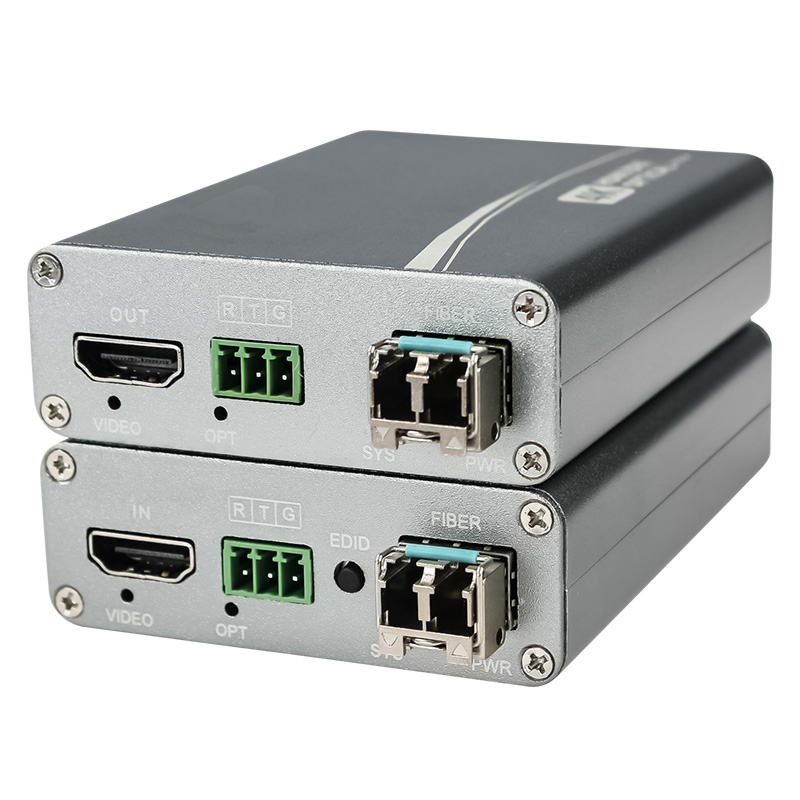

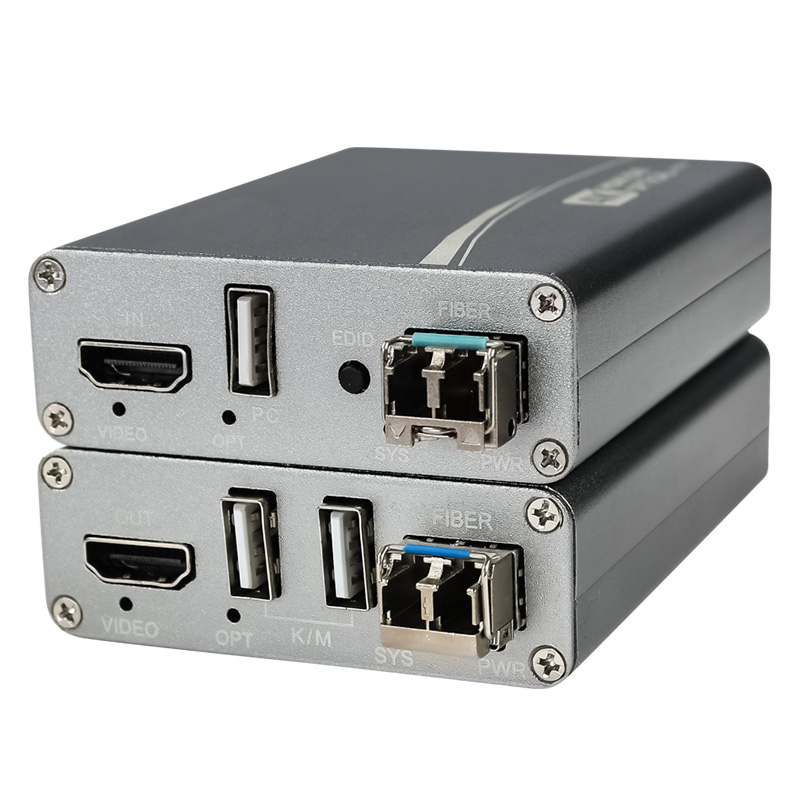

HDMI1.4 4K@30Hz Fiber Optic Extender with RS232/USB/KVM, 10G Transmission bandwidt.

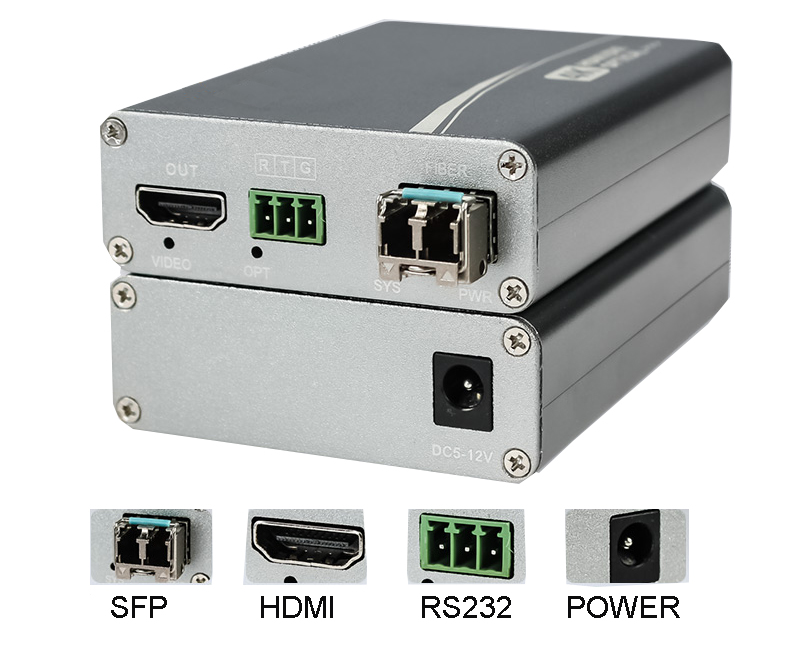

  • Fiber optic input/output: 1 x LC simplex connector (SFP)

  • RS-232: 1 x connector block, 3-pin

  • Fiber optic transmission : 300 m (MM)

  • 10km single mode fiber (SM)

  • HDMI output: 1 x HDMI type A

  • description

  • HDMI1.4 4K@30Hz Fiber Optic Extender with RS232/USB/KVM, 10G Transmission bandwidt.

  • Extends the transmission path of HDMI, USB and RS-232 signals over a fiber optic cable
  • Extremely long transmission distances - up to 300m or 20km
  • HDMI (3D, Deep-Color) and HDCP compatible - signal rates up to 10 Gbps

    • Enhanced graphics quality - resolutions up to 4K at 30 Hz
    • Uses fiber optic cable to connect the local and remote device
    • Supports widescreen formats
  • It is an HDMI extender that far exceeds the traditional limit of cable lengths for transmitting HD picture and sound, thanks to fiber optic transmission. It converts the image and audio signal from a local signal source into serial data that is transmitted over a 10 Gbps fiber optic link (for resolutions up to 1080p at 60 Hz and 24-bit color depth). At the same time, It can transmit USB signals and RS-232 data bidirectionally up to a maximum of 115 Kbps, making it possible to connect serial devices such as touch screens and barcode scanners.

    Extends the transmission path of HDMI, USB and RS-232 signals over a fiber optic cable Extremely long transmission distances - up to 300m or 20km HDMI (3D, Deep-Color) and HDCP compatible - signal rates up to 10 Gbps Enhanced graphics quality - resolutions up to 4K at 30 Hz Uses fiber optic cable to connect the local and remote device Supports widescreen formats Built-in protection against static

    discharges up to 8 kV / 15 kV RS-232 serial port for peripheral devices such as touch screens, bar code scanners, etc. Two-way RS232 transmission Rack mounting possible Hot-plug function

    •


      SPECIFICATIONS:

      OperatingTemperatureRange

      -5 to +35℃(+23 to +95℉)

      OperatingHumidityRange

      5 to 90%RH (No Condensation)

      Video Input(Transmitter)





      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .



      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight

      475g(Pair)

     .
