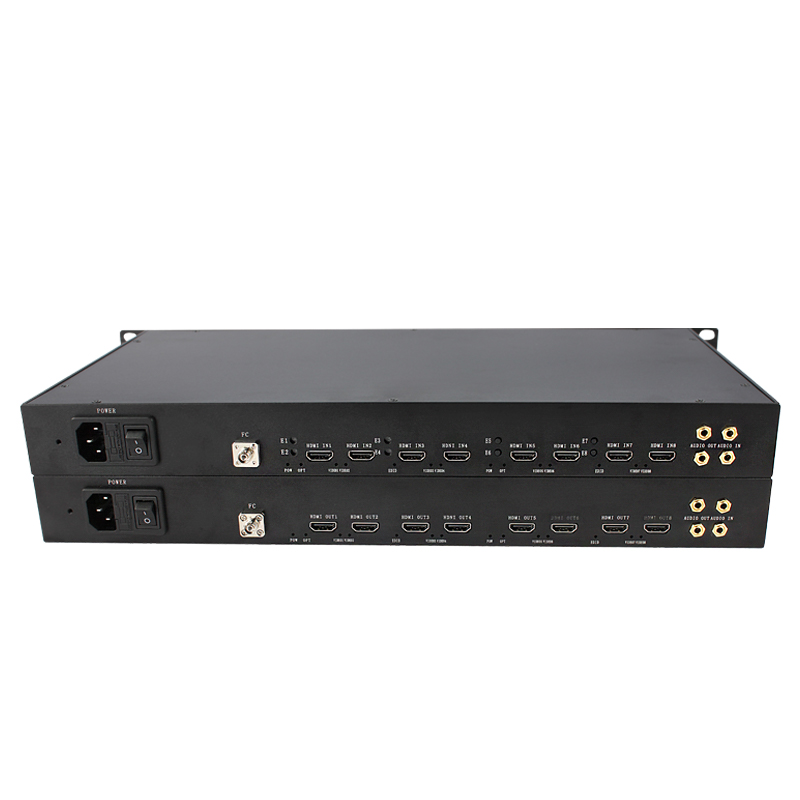

8-ch HDMI fiber extender rack mount

  • RGB, YCbCr 4:4:4, YCbCr 4:2:2 and YCbCr 4:2:0

  • Bandwidth up to 600 MHz (18 Gbps)

  • Supports HDCP 2.2

  • Up to 48-bit color depth

  • via MM Fiber Optics ,mpo ,300m

  • description

  •  8-ch HDMI fiber extender rack mount

  •   8 ways HDMI fiber extender
    rack mount for insert HDMI/DVI fiber card
    2U standard
    Fiber optic rack mount
    Category:1080P HDMI Fiber Optic Extender

    Inquiry Send Email

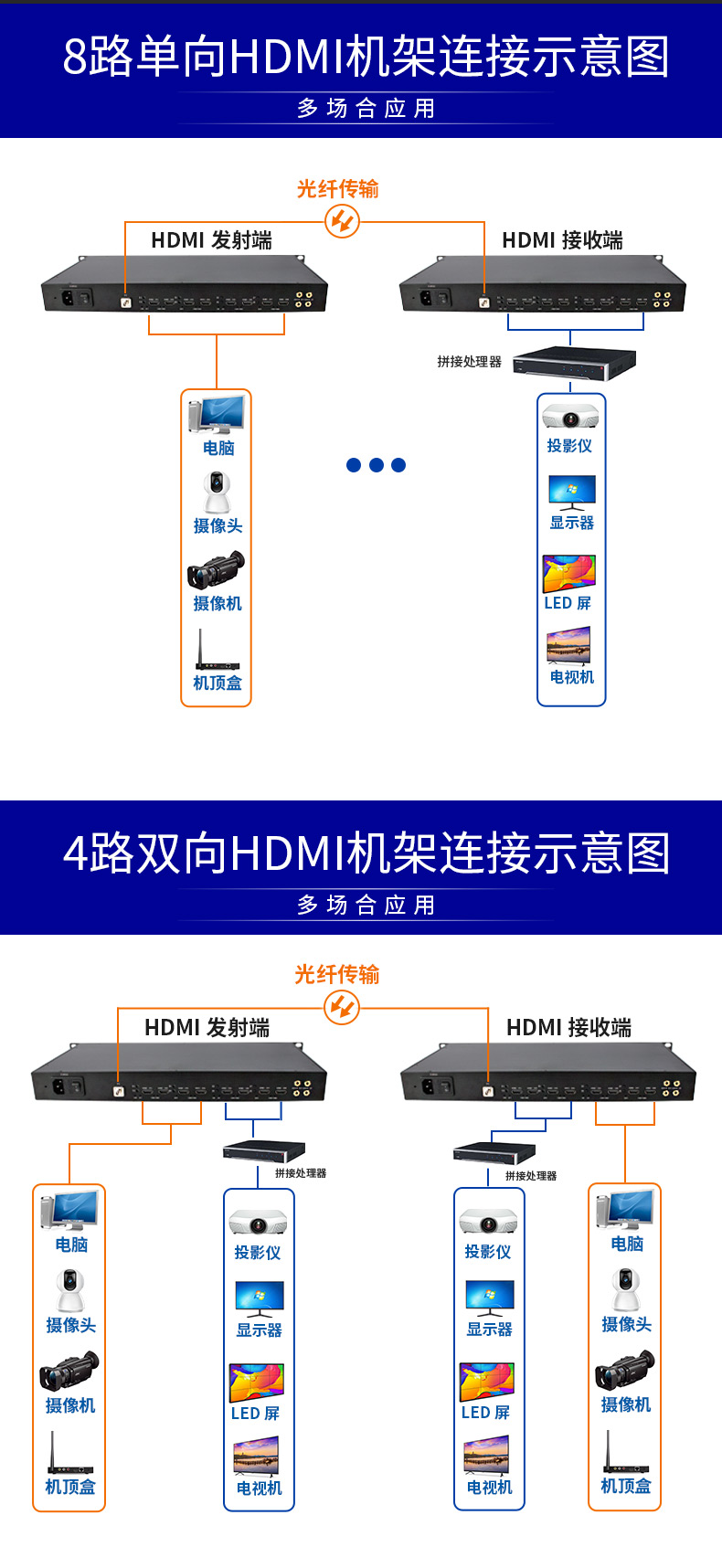

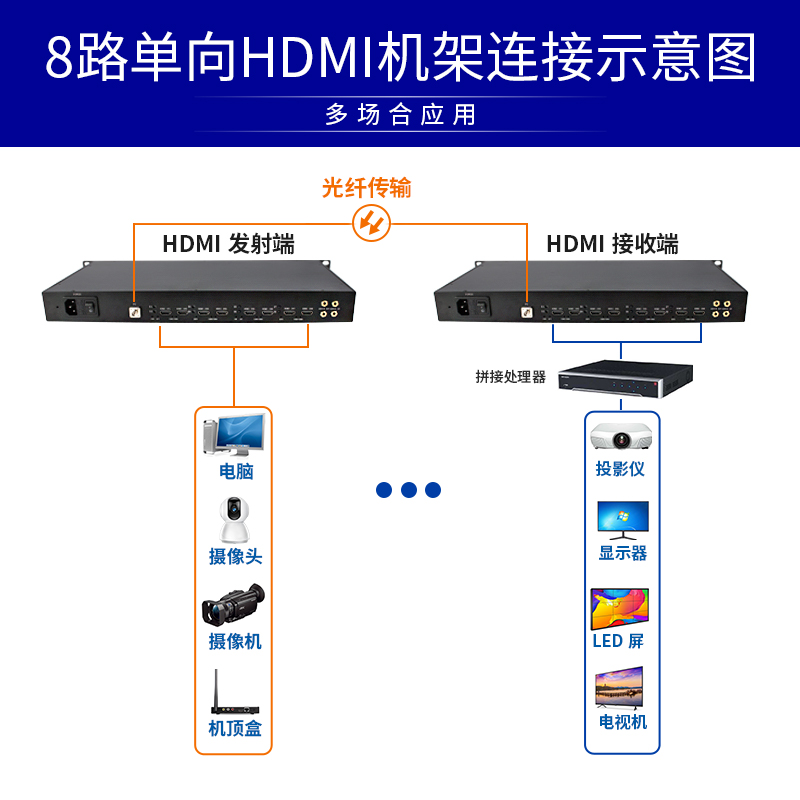

    This is a flexible plug-in rack mount for 8-ch HDMI fiber optic extender cards, it also support DVI fiber cards, and HDbaseT card. It is a mixed rack mount with insert cards. user could easily change the mainboard by themselves according to their video and audio transmission requirements. The HDMI fiber cards have HDMI loop in transmitter end and receive end. SFP modules make the fiber box more easy to control, install and maintain.
    1.8-ch HDMI with loop out in TX and RX end , standard 20KM, optional max 80KM
    2. Support video resolution up to 1920*1080P@60Hz, compatible with lower resolution
    3. Support mixed insert with other cards like DVI fiber converter and HDbaseT extender
    4. Support 8-ch external stereo audio, 3.5mm jack
    5. Optional 8-ch RS232 duplex transmission
    6. Compliance with HDMI 1.3
    7. High compatibility, can auto-match source and display device
    8. Built-in automatic adjustment system, make the image smooth, clear and stable
    9. Optional CWDM, DWDM multiple HDMI over single core fiber cable




      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
