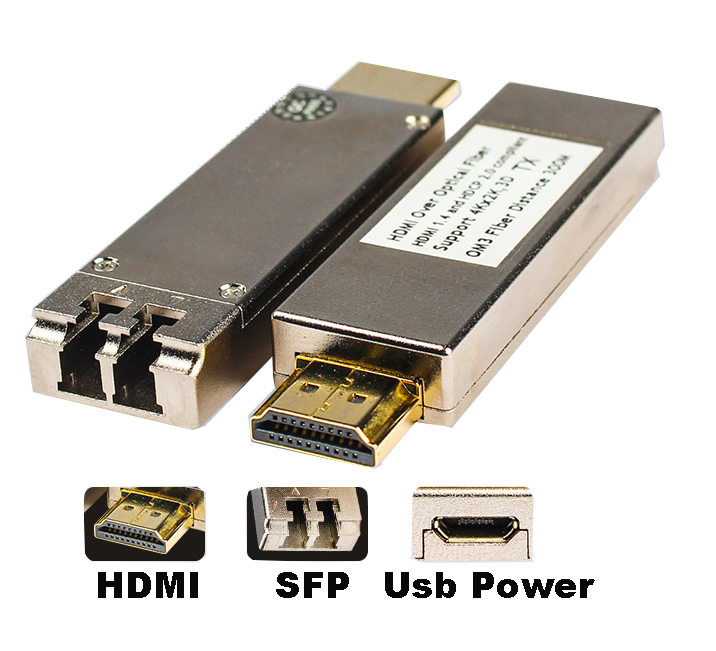

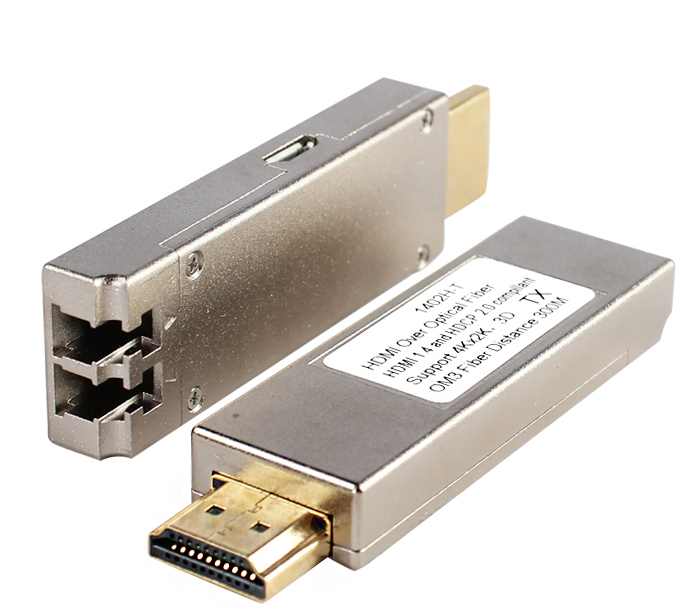

MINI 4K@30Hz HDMI 1.4 Fiber Optic Extender

  • dual core Multi Mode optical fiber

  • Transmission distance 300M

  • Resolution up to 3840*2160/30Hz(Y:U:V 4:4:4)

  • Support HDCP and 3D

  • Micro USB-B power connector

  • description

  • MINI 4K@30Hz HDMI 1.4 Fiber Optic Extender with dual core Multi Mode optical fiber ,Transmission distance 300M.

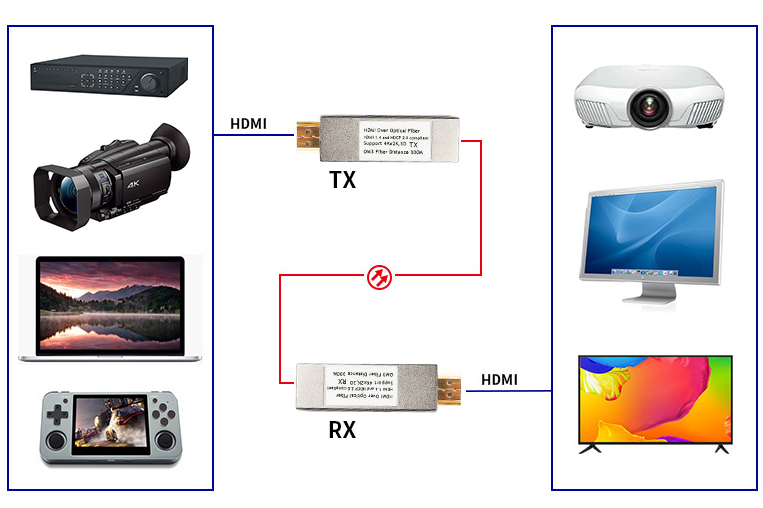

  • It is an enclosed HDMI optical module designed to support transmission of uncompressed HDMI 1.4A signals over multimode fiber at 850nm over distances up to 300m with 4Kx2K @ 30HZ resolution. IT converts the HDMI signal to a single 10Gb/s serial data stream for transmission over two fibers. It converts the serial data back to HDMI signal. The transceiver is RoHS compliant and is lead-free in both Europe and the US. The product is ideal for large screen displays, conference systems and home entertainment. The device is interference resistant to ensure signal stability

  • 1. Miniature type, plug and play
  • 2. Resolution up to 3840*2160/30Hz(Y:U:V 4:4:4)
  • 3. Support resolution 3840*2160/60Hz(Y:U:V 4:2:0)
  • 4. Extend the HDMI up to 300 meters
  • 5. Support HDCP
  • 6. Support 3D

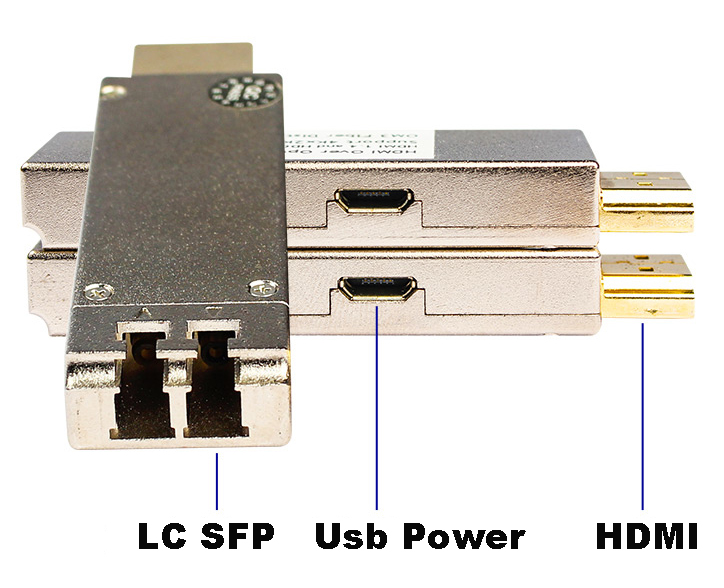

  • 7. Detachable feature with 2x LC OM3 MM Fiber
  • 8. The modules are compact enough to directly plug to graphic sources and displays by adopting HDMI plugs
  • 9. Micro USB-B power connector;
  • 10. Data security with negligible RFI/EMI emissions and loss of video quality due to no copper conductor present
    •


      SPECIFICATIONS:

      OperatingTemperatureRange

      -5 to +35℃(+23 to +95℉)

      OperatingHumidityRange

      5 to 90%RH (No Condensation)

      Video Input(Transmitter)





      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .



      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight

      475g(Pair)

     .
