2U 16 Bay Rack Mount hdmi 4k30Hz fiber Extender , Dual Power Supply,

  • Supports 16 hdmi extender card in 2U of rack space

  • Dual redundant load-sharing power supplies

  • Four redundant fans for system cooling

  • Rugged aluminium & steel construction

  • Simple & quick field maintenance

  • description

  •   2U 16 Bay Rack Mount hdmi 4k30Hz fiber Extender , Dual Power Supply,

  • Supports 16 hdmi extender card in 2U of rack space
    Dual redundant load-sharing power supplies
    Four redundant fans for system cooling
    Rugged aluminium & steel construction
    Simple & quick field maintenance
    Intelligent power backplane
    Individually fused converter mounting bays

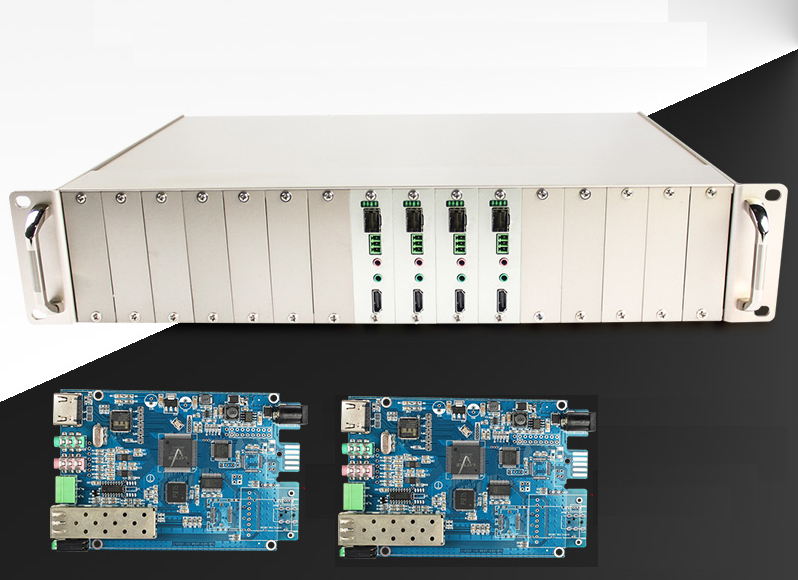

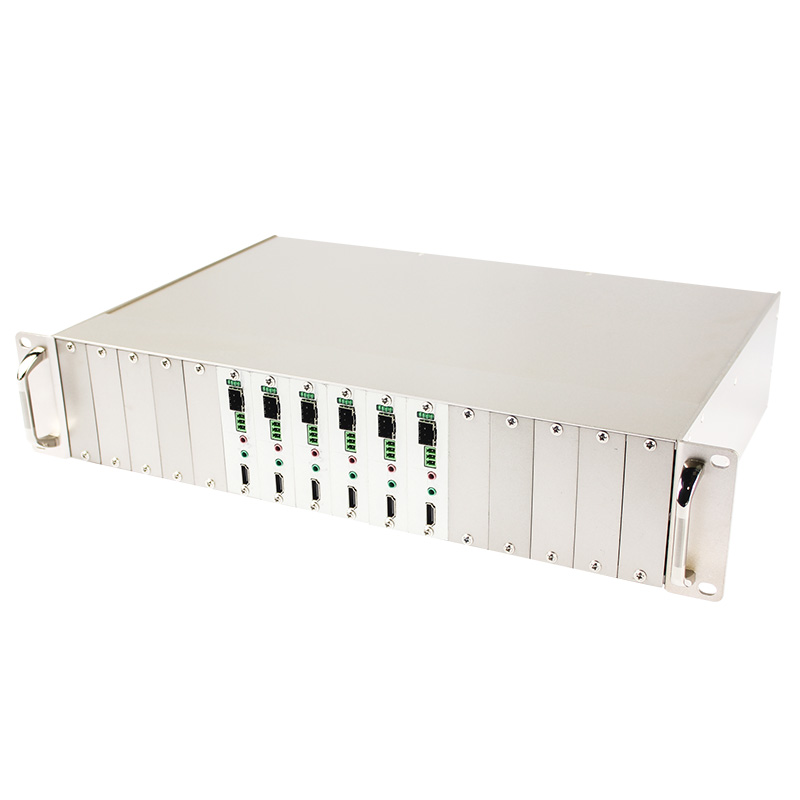

    16-Bay Rack Mount hdmi 4K@30hz fiber extender Chassis provides higher rack mount hdmi extender density for large installations that can accommodate rear access to the chassis for power supply maintenance. The chassis provides 16 bays of space for hdmi extender in a standard two rack unit high enclosure.

    The redundant, fan-cooled load-sharing power supplies can be hot-swapped to ensure system up-time. High port density allows a variety of hdmi extender solutions to be housed in a minimum amount of rack spaces for enterprise-level businesses and carriers.


    DESCRIPTION
    Description

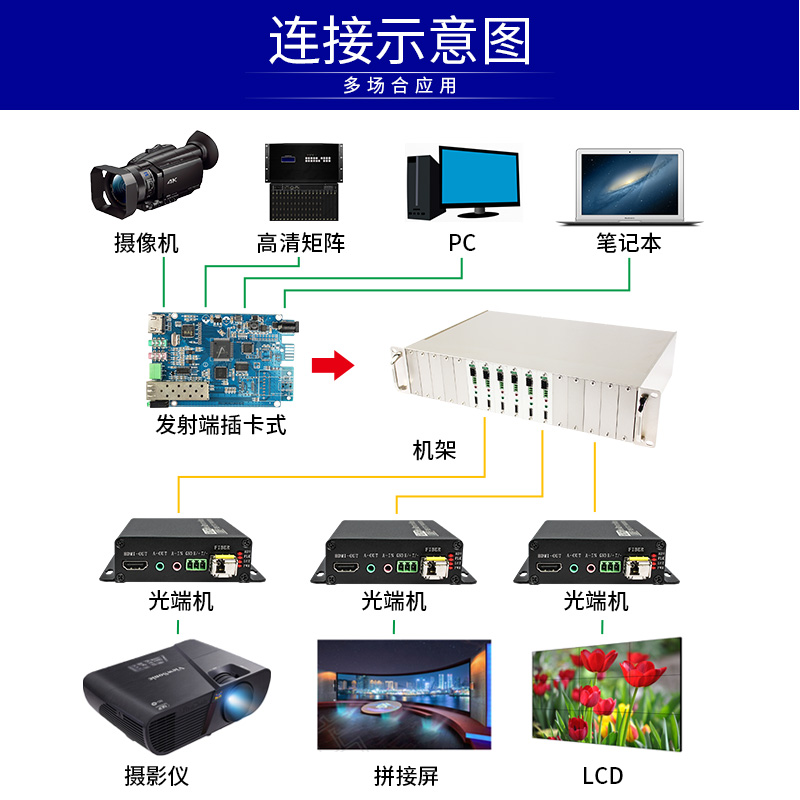

    This is a flexible plug-in rack mount for 8-ch HDMI fiber optic extender cards, it also support DVI fiber cards, and HDbaseT card. It is a mixed rack mount with insert cards. user could easily change the mainboard by themselves according to their video and audio transmission requirements. The HDMI fiber cards have HDMI loop in transmitter end and receive end. SFP modules make the fiber box more easy to control, install and maintain.
    Features
    1. Max 16-ch HDMI , standard 20KM
    2. Support video resolution up to 1920*1080P@60Hz, compatible with lower resolution
    3. Support mixed insert with other cards like DVI fiber converter and HDbaseT extender
    4. Support 16 channels audio,
    5. Support 16-ch RS232
    6. Compliance with HDMI 1.4
    7. High compatibility, can auto-match source and display device
    8. Built-in automatic adjustment system, make the image smooth, clear and stable
    9. Optional CWDM, DWDM multiple HDMI over single core fiber cable

    •


      SPECIFICATIONS:

      OperatingTemperatureRange

      -5 to +35℃(+23 to +95℉)

      OperatingHumidityRange

      5 to 90%RH (No Condensation)

      Video Input(Transmitter)





      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .



      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight

      475g(Pair)

     .
