120m HDMI Extender with IR, Local loop out, Uplink
4K HDMI extender with IR over cat 5e/6 Ethernet cable to 120m HDMI extender
-
DC/5V: 5V power supply for the Receiver
-
CAT5E/6 OUT: Network cable output port
-
HDMI OUT: HDMI output port
-
Up to 200m HDMI1.4 extension for home theaters
- description
120m HDMI Extender with IR, Local loop out, Uplink

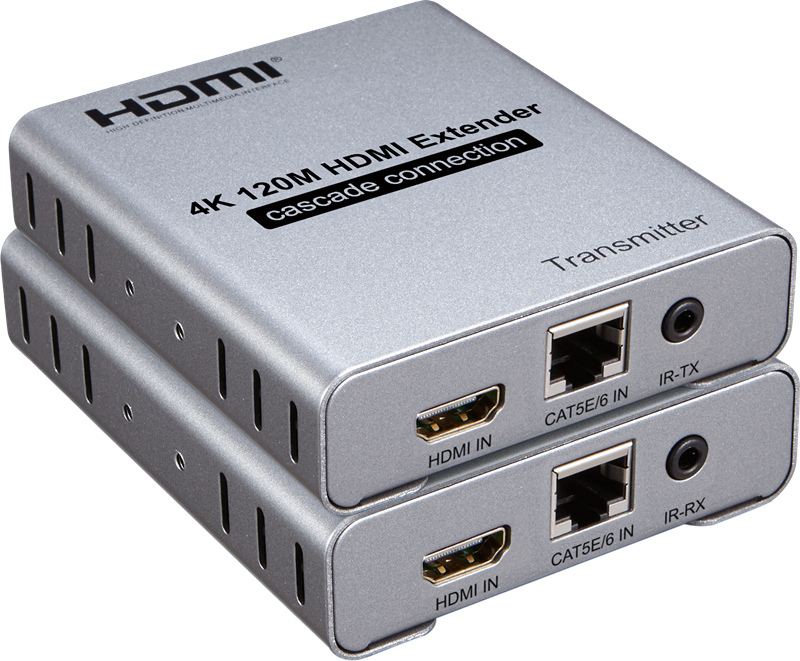

The 120m HDMI extender set HD22-150X consists of a transmitter and a receiver and transmits 1080p HDMI signals over a single CATx cable up to 120m.
Besides HDMI A/V signal transmission, this 150m HDMI extender set supports transmission of infrared signals
Thanks to the l IR transmission, you can control local HDMI devices with IR remote control or 3rd party devices from remote location.
Operating and Connecting:
1. Connect source device with transmitter by one HDMI cable with max length 10 meters.
2. Connect display device with receiver by one HDMI cable with max length 10 meters.
3. Connect TX with RX by one cat 6(recommended) or cat5e cable. the cable max length is 120 meters.
4. One pair of IR RX and IR TX cable, connected to the 3.5mm IR RX and IR TX ports of the transmitter and receiver respectively.
5. Connect the power supply to the TX and RX.
6.LED indicator:When a signal is input to work, steady blue light.

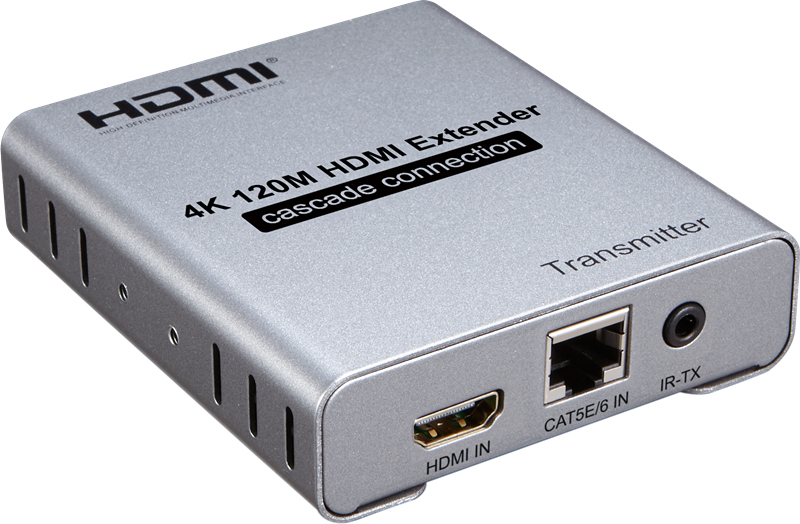

C/5V: 5V power supply for the Transmitter
Sw-signal:Switch input signal button
hdmi: HDMI input indicator
rj45: Network port input indicator
CAT5E/6 OUT: Network cable output port
HDMI OUT: HDMI output port
HDMI IN: HDMI input port
CAT5E/6 IN: Network cable input port
IR-TX: Connect to the IR transmitting port

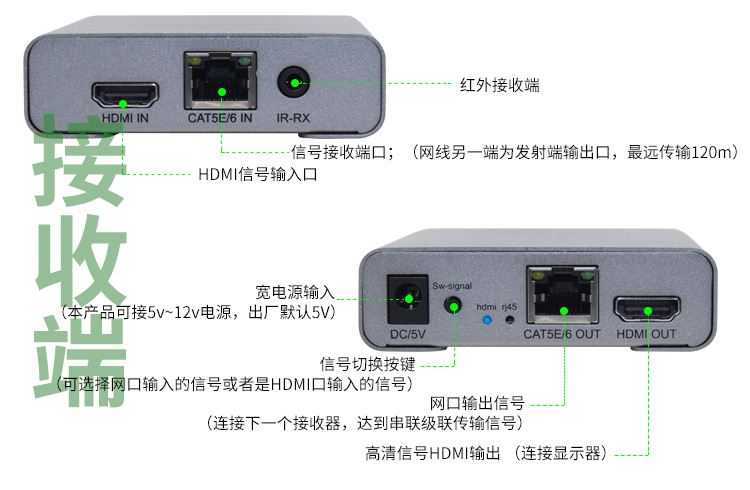

Receiver (RX):
4K HDMI extender with IR over cat 5e/6 Ethernet cable to 120m HDMI extender
DC/5V: 5V power supply for the Receiver
Sw-signal: Switch input signal button
hdmi: HDMI input indicator
rj45: Network port input indicator
CAT5E/6 OUT: Network cable output port
HDMI OUT: HDMI output port
HDMI IN: HDMI input port
CAT5E/6 IN: Network cable input port
IR-RX: Connect to the IR receiving port
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
