4K HDMI Cat5/6 Extender with PoC/ unidirectional IR
HDMI-HDBT Extender Advanced PoC Supply
-
Inputs: HDMI, 3.5mm jack for IR signals
-
CAT5E/6 OUT: Network cable output port
-
HDMI OUT: HDMI output port
-
Up to 200m HDMI1.4 extension for home theaters
- description
4K HDMI Cat5/6 Extender with PoC/ unidirectional IR
with unidirectional IR control

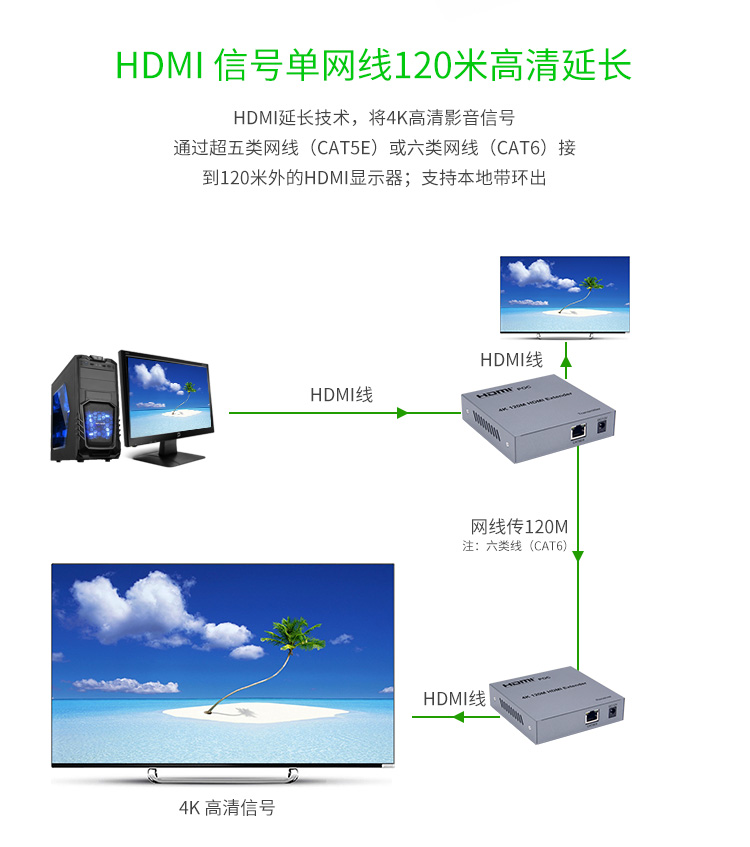

this 4K HDMI HDBaseT Extender Set with unidirectional PoC - 120m

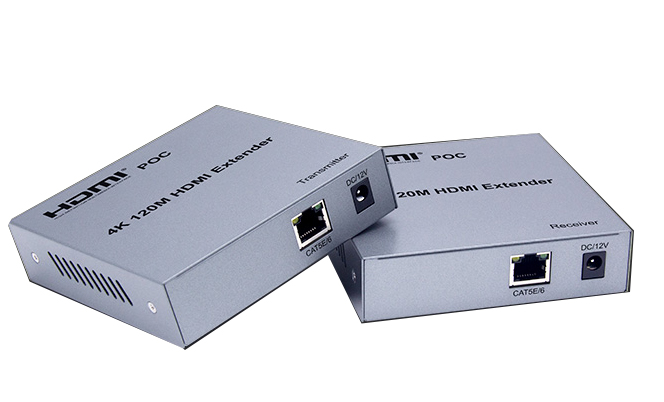

The ultra-slim 4K catT Extender Set consists of a transmitter and a receiver. This cat hdmi extender impresses with its compact dimensions and uses HDBaseT? technology to transmit (ultra-)high resolution 4K signals over a CAT5e/CAT6 cable .
In addition, This HDMI cat5/6 extender supports CEC, bidirectional transmission of unidirectional IR and unidirectional PoC.
HDMI-HDBT Extender Advanced PoC Supply
The transmitter transmits HDMI, IR and
and RS232 signals over a Cat-5E/6
cable via HDBaseT standard,
Range up to 70 m at 1080p resp.
120 m at 4K2K@30Hz, incl.
bidirectional PoC (Power over Cable) functionality
Power supply locally or by reciever
Supports HDMI 1.4, HDCP, EDID, 3D & 4K2K@30Hz

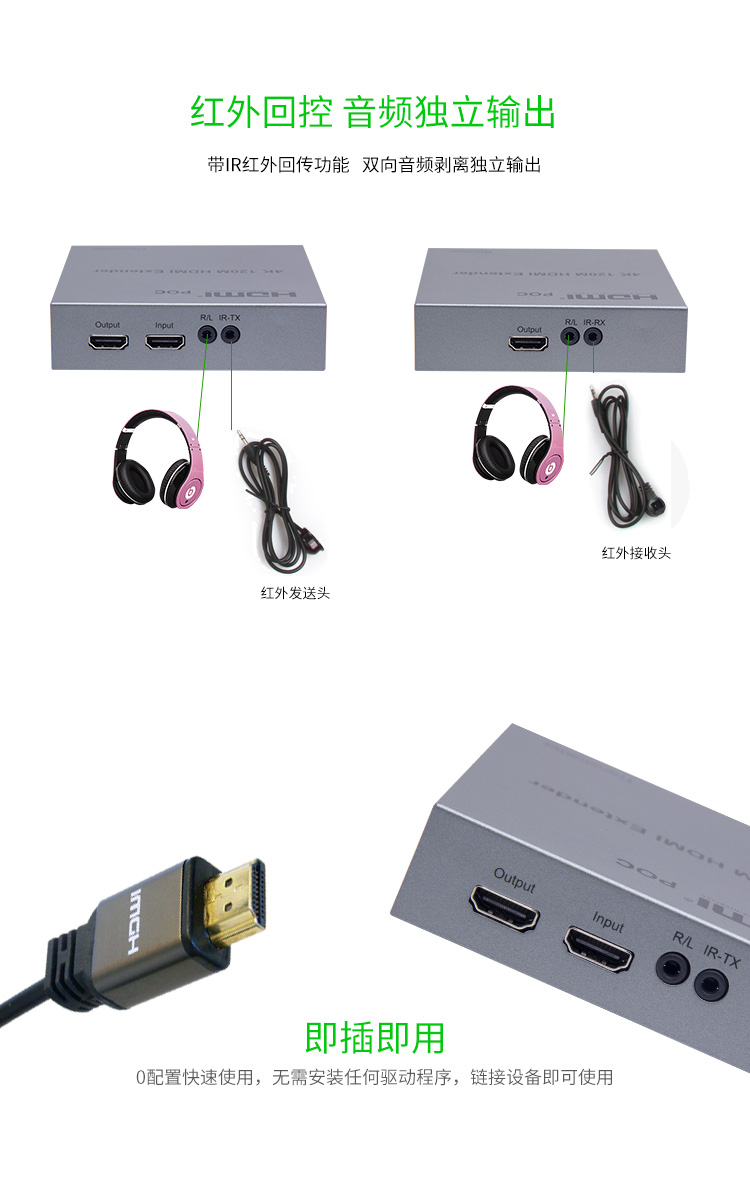

Inputs: HDMI, 3.5mm jack for IR signals,
Outputs: RJ45, 3.5 mm jack for IR signals, (all jack)
Translated with www.DeepL.com/Translator (free version).
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
