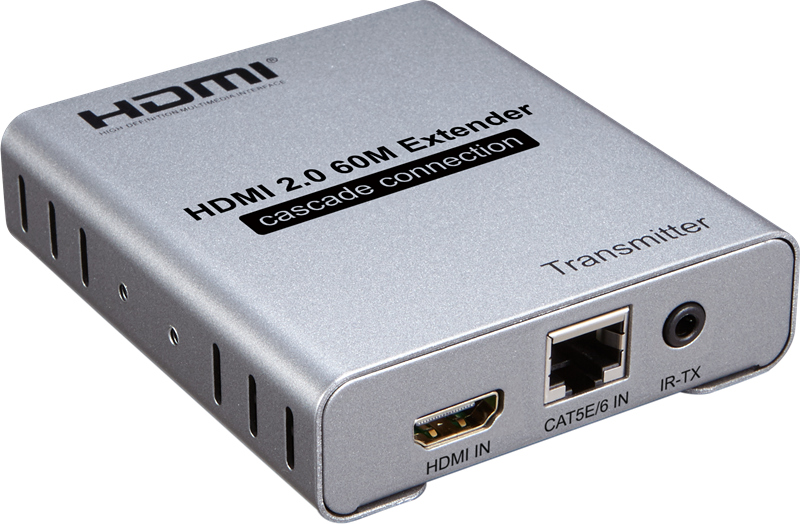

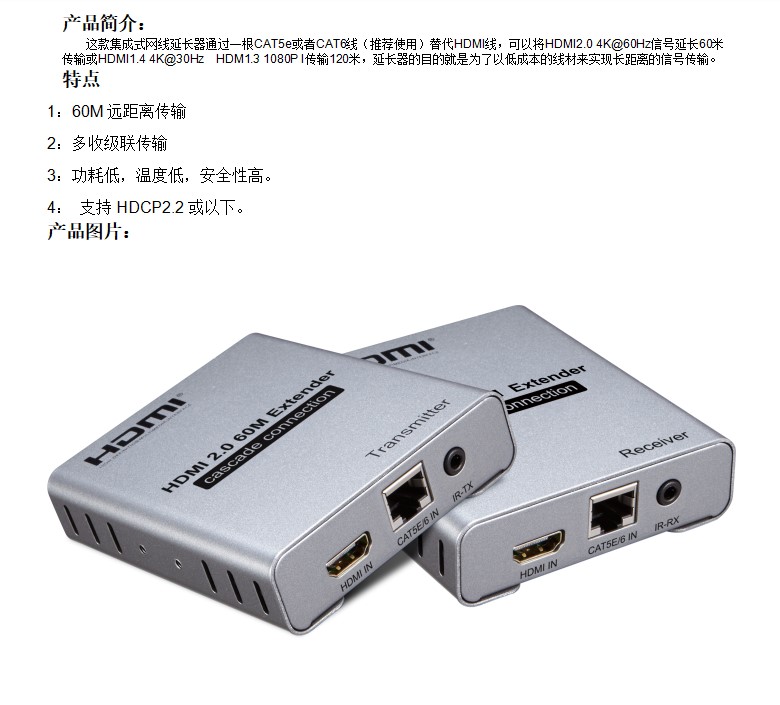

4k@60HZ HDMI2.0 cat5/6 Extender with IR ,60M , Cascade transmission
Supports HDMI 2.0 and HDCP2.2
-
Inputs: HDMI, 3.5mm jack for IR signals
-
CAT5E/6 OUT: Network cable output port
-

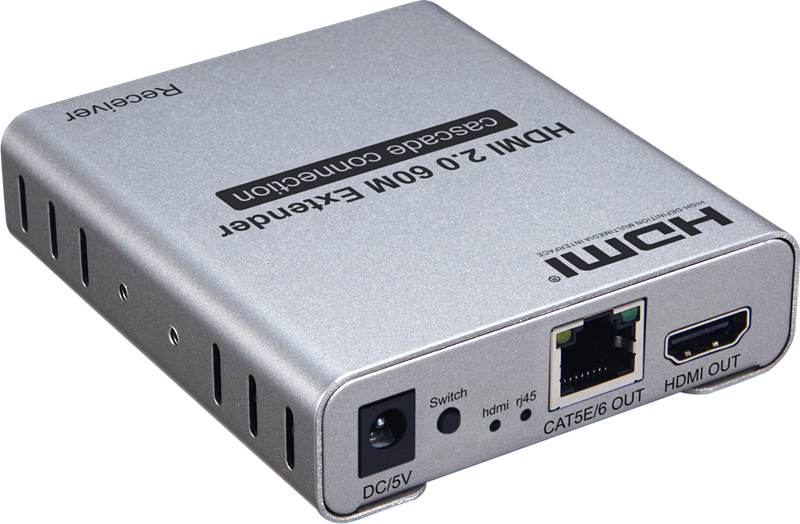

HDMI OUT: HDMI output port
-
Up to 200m HDMI1.4 extension for home theaters
- description
4k@60HZ HDMI2.0 cat5/6 Extender with IR ,60M , Cascade transmission
4K@60HZ HDMI signal extension up to 60m
Cascade transmission 4K@60HZ HDMI signal
60m HDMI 2.0 cat T Extender Set withIR
The 150m HDMI extender system for full HD HDMI signals supports the CAT cable, over which the HDMI A/V and control signals (IR ) are also transmitted,
Features
Supports HDMI 2.0 and HDCP2.2
Transmission of HDMI signals up to 1080p @60Hz (Full HD)
Extremely long range: up to 60 meters at 4K@60HZ
High bandwidth: 18 Gbit/s
.
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
