HDMI1.4 Extender over CAT cable with POE ,Transmission distance 60M

  • 4K/30HZ up to 150m, 1080p up to 100m via CAT cable

  • Inputs: HDMI, 3.5mm jack for IR signals

  • CAT5E/6 OUT: Network cable output port

  • HDMI OUT: HDMI output port

  • Up to 200m HDMI1.4 extension for home theaters

  • description

  •     HDMI1.4 Extender over CAT cable with POE ,Transmission distance 60M

    4K/ 1080p HDMI-over-CAT Extender
    HDMI extender extends HDMI signal distances up to 60m over a single CAT5e /6 cable.

    The low-cost HDMI extender transmits full-HD (1080p) digital audio and video signals at up to 225MHz (6.75 Gbps) bandwidth over a single CAT5e /6 network cable.

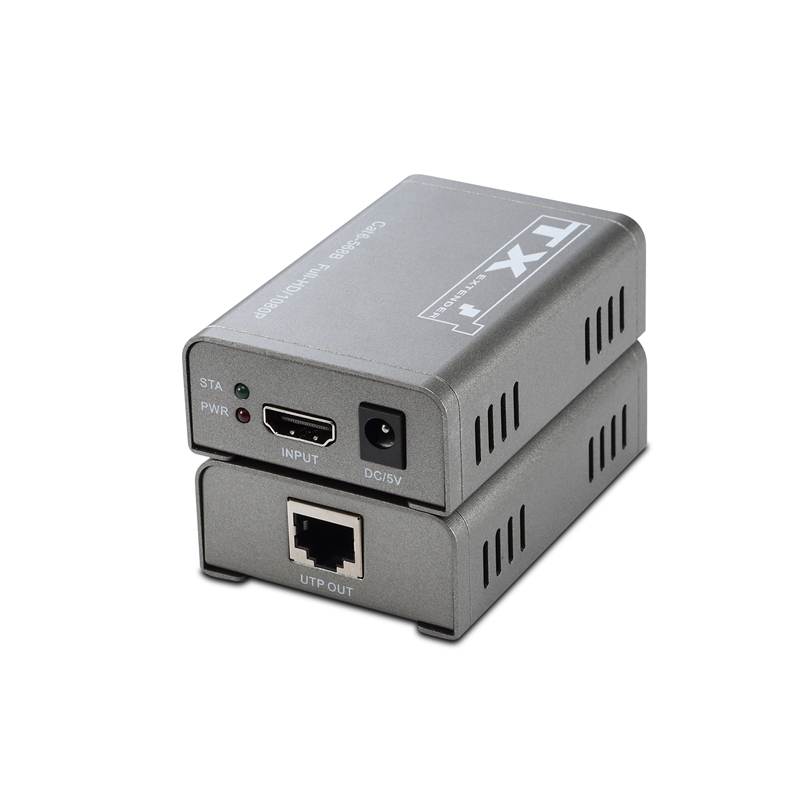

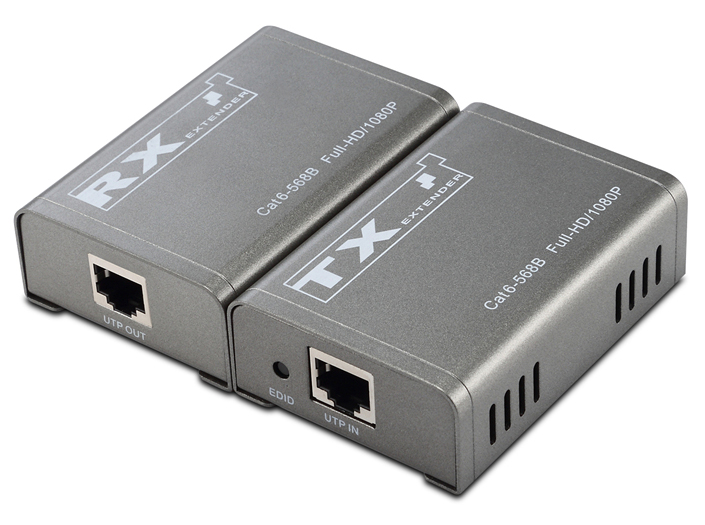

    This HDMI extender set consists of a local unit (transmitter) that connects to an HDMI source and a remote unit (receiver) that connects to an HDMI display or projector.
    Transmitter (transmitter) and receiver (receiver) of this HDMI over CAT extension are directly connected to each other with a standard CAT5e or CAT6 cable. The length of the CAT cable may be up to 46m, so this HDMI extender allows you to transmit 3D and 4K/1080p full HD video and digital audio signals over distances of up to 60m

    HDMI Extender for 3D and 1080p - up to 36-bit color depth
    This extender for digital video and audio signals not only allows you to extend HDMI signals up to 60m via a network cable, but also still delivers brilliant images even with 3D and Full HD content.
    So you can transmit HDMI with a color depth of up to 36-bit with this HDMI extender set, so that you get brilliant images on the HDMI display or projector even with transmission distances of 60 meters.

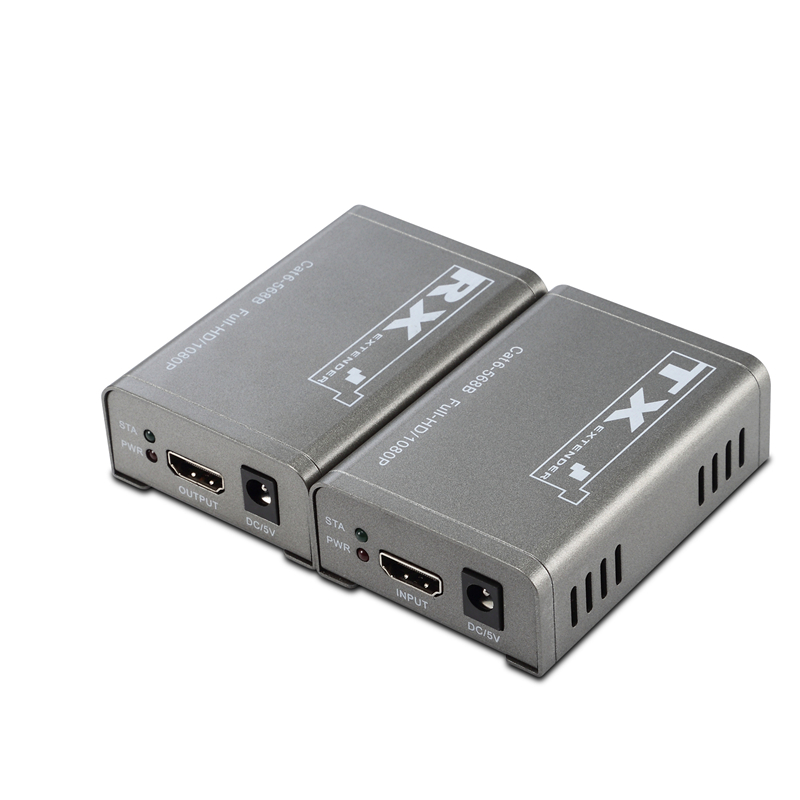

    The extender set for HDMI signals consists of a transmitter and a receiver
    Transmits the HDMI signal over a single UTP LAN cable (CAT5e / 6) over plugs of up to 60 meters
    Supports HDTV resolutions up to 1080p
    Full HD resolution (1080p) when plugged up to 46 meters
    HDMI 1.4 and HDCP 1.2 compatible
    HDCP compatible
    Supported HDMI features:
    Up to 36-bit color depth
    3D video
    Supports lossless compressed digital audio:
    Dolby TrueHD and DTS-HD Master Audio
    Bandwidths up to 225 MHz (6.75 Gbps)
    Transmission of digital video and audio signals without signal loss







      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
