4 channel /2 channel bidirectional HDMI Fiber Extender

  • 4-ch HDMI,4-ch Audio, single fiber

  • single mode, LC, up to 20KM,)

  • Supports HDCP 2.2

  • 4k @ 30Hz are supported

  • Supports EDID pass-through communications

  • description

  • 4 channel HDMI 4K@30Hz Fiber Extender with 4-ch bidirectional audio,optional 4-ch RS232
       2 channel bidirectional HDMI 4K@30Hz Fiber Extender with audio and RS232

  • 1.Overview

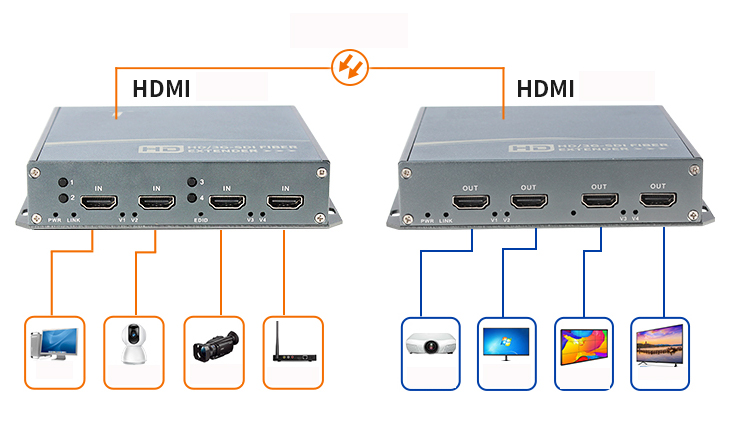

    The 4-channel HDMI Fiber Extender extends HDMI signals over long distances using single-mode fiber.
    HDTV video resolutions of up to 4k @ 30Hz are supported. The HDMI Fiber Extender can also transmit audio and data.
    It is widely used by video conferencing, multimedia, distance learning, video walls and other digital video transmission projects.

    4-ch 1.4 HDMI (4K@30Hz), with 4-ch bilateral audio,optional 4-ch RS232
    10-bit digital video encoding and uncompressed transmission technology
    0-20KM transmission distance optional
    Supports EDID pass-through communications

    3. Applications

    Remote OB Van/Truck Video Feeds
    Broadcast Studio Camera Feeds
    Long-haul Signal Transport
    TV station/video conference
    Lecture Hall Projector Connectivity
    Medical/Surgical Room Broadcast
    Small corporate campus video links
    Building to Building video conference calling

    4. Ordering Information
    HDMI Fiber Optic Extender

    4-ch HDMI,4-ch Audio, single fiber, single mode, LC, up to 20KM, stand alone.





      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)

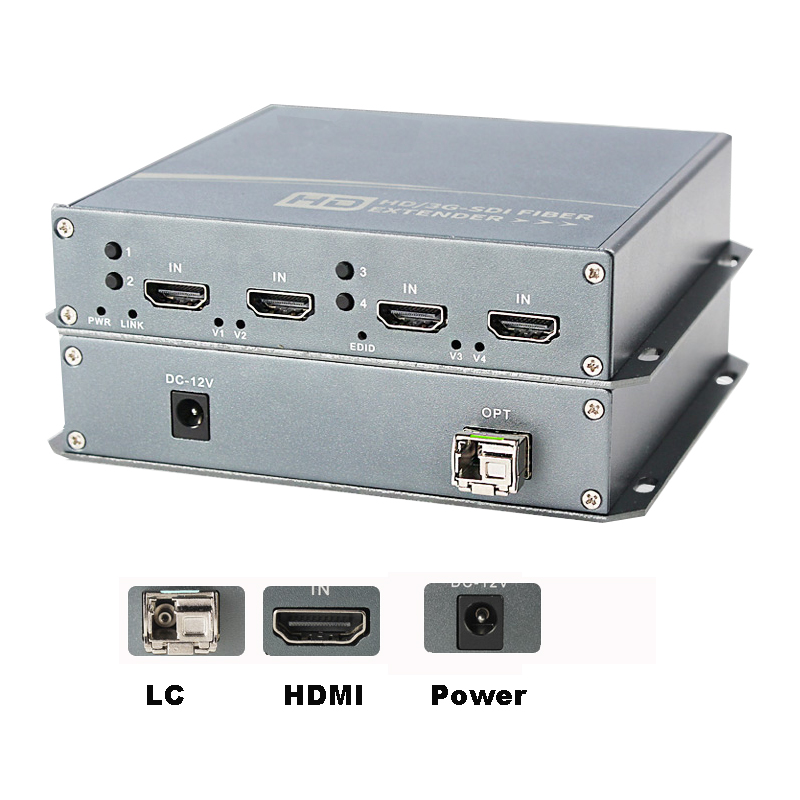

      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
