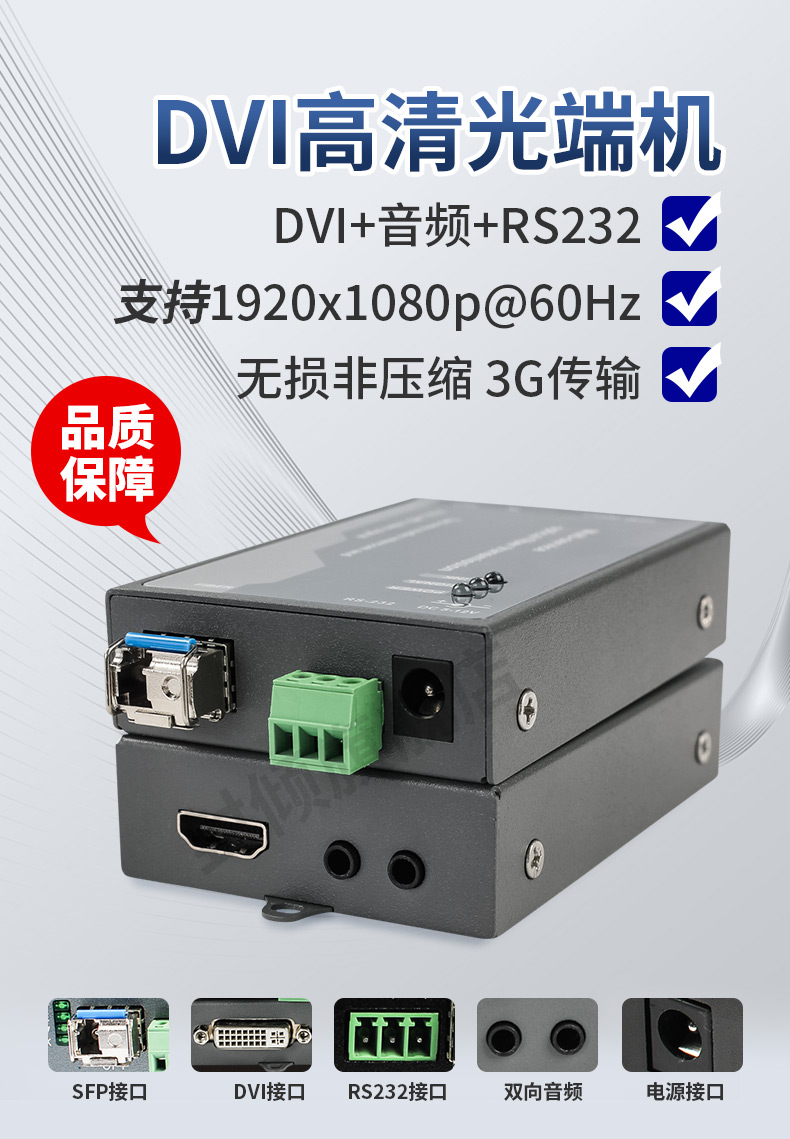

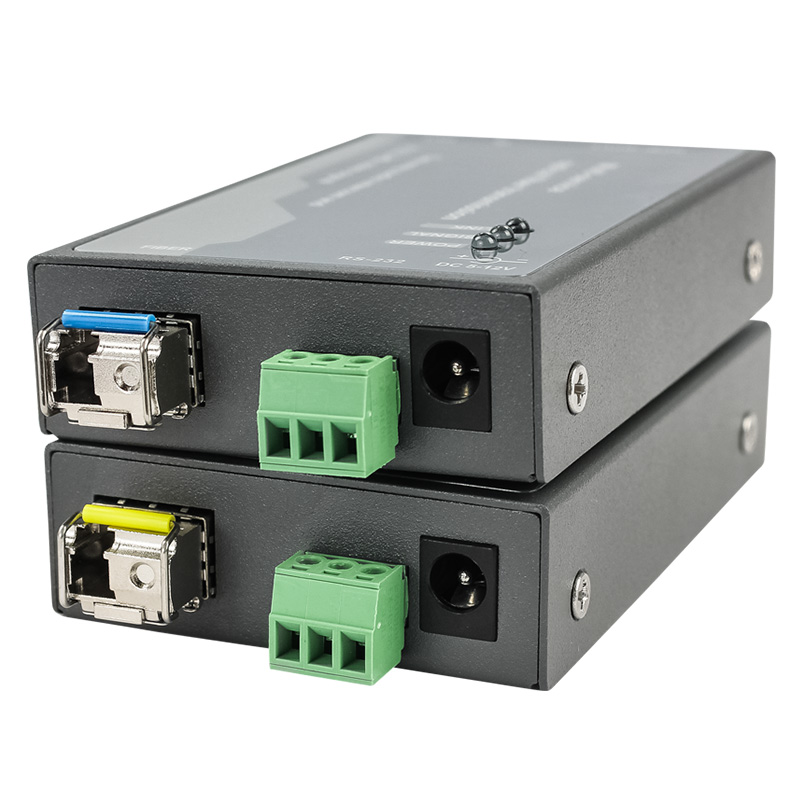

DVI Fiber Optic Extender ,edid, 1920x1080p@30hz ,Audio,bilateralrs232, Single fiber ,LC ,20KM
Supports Single Mode up to 1500m, Multimode:500m
-
DVI-D Single Link (18+1) for resolutions up to 1920x1200@60HZ
-
Gold plated precision mating contacts, EMI protection, low attenuation
-
DVI-D (18+1) male to LC female, full metal housing
-
Zero frame delay delay and compression free transmission
- description
DVI Fiber Optic Extender ,edid, 1920x1080p@30hz ,Audio,bilateralrs232, Single fiber ,LC ,20KM

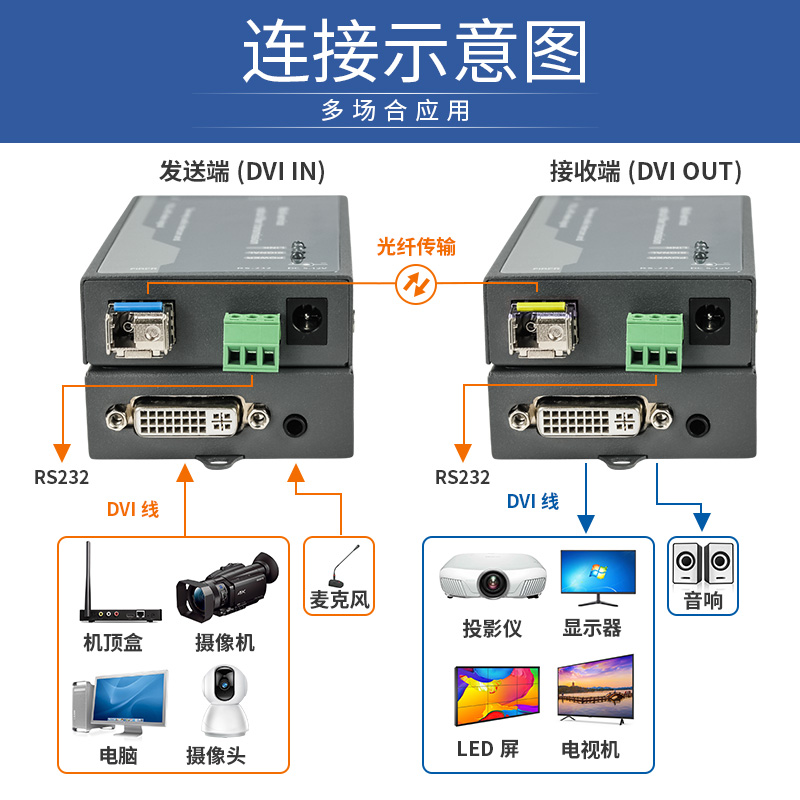

This fiber optic extender is an effective and affordable transmitter and receiver set for transmitting single link DVD-D signals over long distances using fiber optic cables. The set uses all-digital technology for perfect, pixel-perfect transmission of computer video images at resolutions up to 1920x1080p@30hz, including HDTV 1080p/60 and 2K. The DVI 104 extends DVI-D signals up to 20km over single fiber optic cables.The transmitter and receiver are in very compact housings in the form of connectors with DVI connectors on one side and industry standard fiber optic cable LC connectors on the other. For simplified installation, the cables can be routed in cable ducts or other narrow spaces without the transmitter and receiver being connected. In addition, the transmitter and receiver can be connected directly to DVI sources and displays, eliminating the need for special mounting accessories.
It is ideal for many different applications where high quality, long distance transmission of high resolution content is required. Because the content transmitted over fiber is secure from outside access, applications using fiber are preferred in many commercial environments, as well as in the rental and events, and medical sectors
Features
Transmits single link DVI-D signals up to 20km over single fiber optic cables
Fully digital technology for pixel-perfect signal transmission up to 1920x1080p@30hz, including HDTV 1080p/60 and 2K
Transmitter and receiver can be detached from the cable - Once the DVI transmitter and receiver are detached, fiber optic cables can be easily routed in cable ducts or other narrow spaces.
Direct device connection - The transmitter and receiver are housed in adapter-sized enclosures that connect directly to the source device and display without the need for additional cables or mounting accessories.
Energy-efficient, external universal power supply included - Provides worldwide compatibility.
.
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
-
