4 into 1 out HD SDI switcher
SD/ HD/ 3G SDI extender over fiber optic/ fiber optic cable
-
Supports HDTV resolutions up to 1080p bie 60Hz (Full HD)
-
Fiber optic transmission : 300 m (MM)
-
10km single mode fiber (SM)
-
HDMI output: 1 x HDMI type A
- description

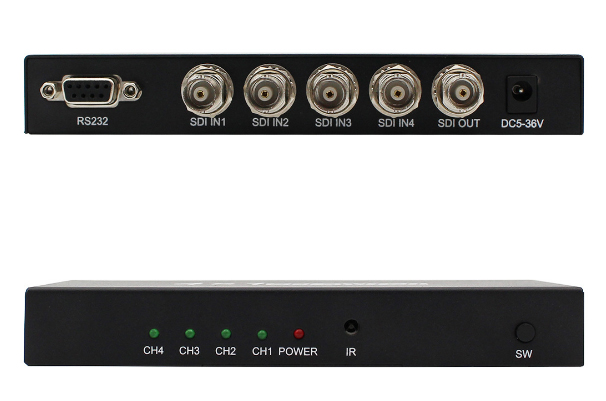

4 into 1 out HD SDI switcher
4 into 1 out HD SDI switcher WT-SQ401 intelligent identification function is more compatible, professional signal processing technology broadcast-grade signal transmission, automatic identification compatible with SD-SDI, HD-SDI, 3G-SDI, full-format SDI signal, support from 143/Mb/s to 297/Mb/s full-format SDI rate, unique signal enhancement transmission distance farther.
Product Features
- Intelligent identification function for greater compatibility, automatic identification compatible with SD-SDI, HD-SDI, 3G-SDI, full-format SDI signal, support from 143/Mb/s to 297/Mb/s full-format SDI rate.
- professional signal processing technology broadcast-level signal transmission, intelligent circuit design technology, effective prevention of circuit electromagnetic interference, professional signal processing technology, direct signal transmission non-compression, signal distortion-free, no delay, HD 1080p perfect output, up to broadcast level.
- flexible switching methods more convenient and faster, the device provides a variety of flexible switching methods to meet more needs.
- unique signal enhancement transmission distance farther, support SDI signal ultra-long 300 meters output, high fidelity design, professional op amp chip, long distance output still perfect HD 1080p.
- can withstand instant high voltage lightning protection indicators can reach contact discharge 8kv, air discharge 15kv products tested by a variety of display equipment, perfect output, good compatibility, the shell is designed with high-grade metal, strong oxidation resistance, corrosion resistance.

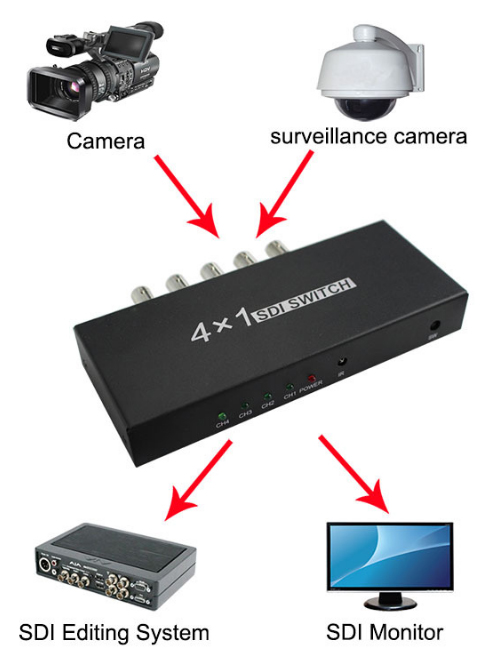

- Widely used in radio broadcast rooms at all levels, security monitoring, video conference rooms, multimedia teaching, advertising displays, TV outlets and other one-stop office space.
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
