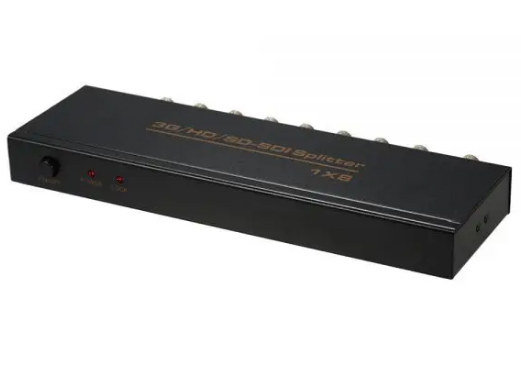

1-in/8-out SDI Splitter

  • SD/ HD/ 3G SDI extender over fiber optic/ fiber optic cable

  • Supports HDTV resolutions up to 1080p bie 60Hz (Full HD)

  • Fiber optic transmission : 300 m (MM)

  • 10km single mode fiber (SM)

  • HDMI output: 1 x HDMI type A

  • description

  •     1-in/8-out SDI Splitter

  •   SDI distributor is an SDI distributor that distributes any one way SD/HD/3G-SDI serial digital video signal into 8 synchronized signals to multiple HDTVs with high definition, no distortion and no delay using broadcast-grade processing technology, and automatically identifies SDI signals compatible with SD-SDI, HD-SDI and 3G-SDI full formats.

    1-in/8-out SDI Splitter Features
    Built-in distribution chip processing solution for broadcasting, distributes one SDI signal into 8 channels with high definition, no distortion and no delay, supports SD-SDI (270Mbps), HD-SDI (1.485Gbps) and full HD 3G-SDI (2.97Gbps) video formats, built-in auto-detection chip, which can automatically identify compatible SD-SDI, HD- SDI, HD-SDI, 3G-SDI full-format SDI signal.

    The use of all-digital, uncompressed technology, no software settings, support for hot-swappable, high-bandwidth chip, high-performance image processing and signal long moment away from the transmission distortion gain compensation technology, full SMD SMD process, lightning shock and power surge, conductive chassis, effective shielding interference signal for harsh field installation environment, simple installation, plug and play.

    Input signal: SD-SDI/HD-SDI/3G-SDI signal
    Output signal: SD-SDI/HD-SDI/3G-SDI signal
    Connector: BNC (3G-SDI) female connector
    Input specification: compatible with SMPTE424M, SMPTE292M, SMPTE259M
    Output specification: each output supports signal regeneration function, output signal swing 800mv
    SDI input and output distance: SD supports 400m, HD supports 200m, 3G supports 100m
    Input bandwidth: Adaptive SD-SDI/HD-SDI/3G-SDI standard (143Mb/s~2.97Gb/s)
    Embedded audio: Support
    Transmission distance: with automatic cable equalization function, typical cable equalization length of 1964A type is as follows
    Operating temperature range: 20to65℃
    Power: 15W





      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
