2 in 2 out SDI matrix
SD/ HD/ 3G SDI extender over fiber optic/ fiber optic cable
-
Supports HDTV resolutions up to 1080p bie 60Hz (Full HD)
-
Fiber optic transmission : 300 m (MM)
-
10km single mode fiber (SM)
-
HDMI output: 1 x HDMI type A
- description
2 in 2 out SDI matrix
2 SDI to 2 SDI, mini size and lightweight, attractive and durable, strong heat resistance and durable, superior performance.
Audio and video sync output: Designed with audio and video sync output to share a better life with you.
Compatible with SDI standard: SMPTE 424M, SMPTE 292M and SMPTE 259M-C.
SDI input/output support resolution: 480I60, 576I50, 720P50/60, 1080I50/60, 1080P24/25/30/50/60.
Features:

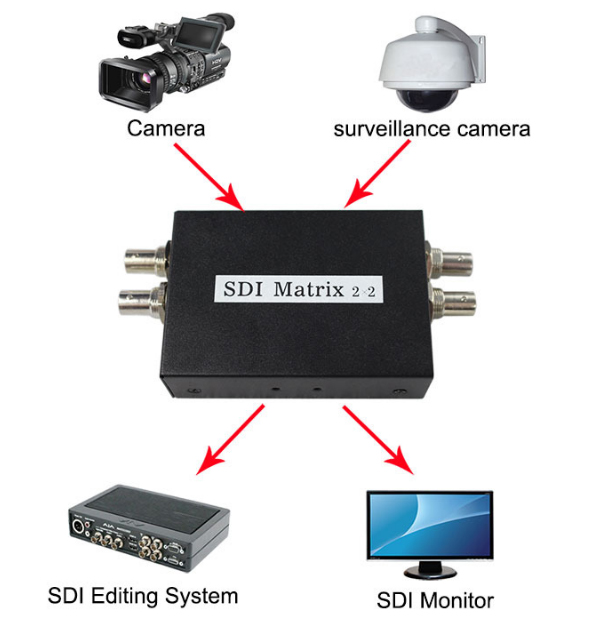

2 SDI to 2 SDI simultaneously
Lightweight and easy to handle.
Attractive and durable.
High heat resistance and durable.
SDI standard compatibility: SMPTE 424M, SMPTE 292M and SMPTE 259M-C.
Specifications:

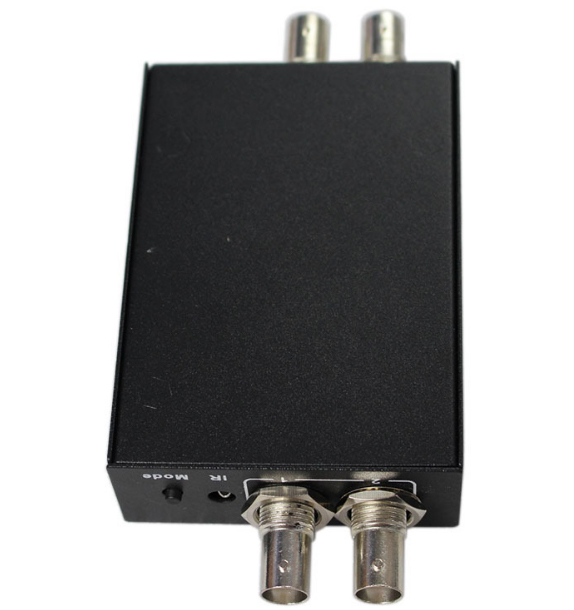

A. Input connector: 2 x SDI.
b.Output connector: 2 x SDI.
c.Mode button: to change the status of "Lock" source light.
- Light on: The 2 SDI monitors display the image of the SDI No.2 signal.
- Light flicker: the 2 SDI monitors display the image of the No.1 signal.
- Illumination: The 2 SDI monitors display the image of the No.1 signal.
Power Supply: 5 V - 12 V DC/1 A.
e.SDI Input and Output Support Resolution: 480I60, 576I50, 720P50/60, 1080I50/60, 1080P24/25/30/50/60
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
