2-in/1-out sdi switchers
SD/ HD/ 3G SDI extender over fiber optic/ fiber optic cable
-
Supports HDTV resolutions up to 1080p bie 60Hz (Full HD)
-
Fiber optic transmission : 300 m (MM)
-
10km single mode fiber (SM)
-
HDMI output: 1 x HDMI type A
- description

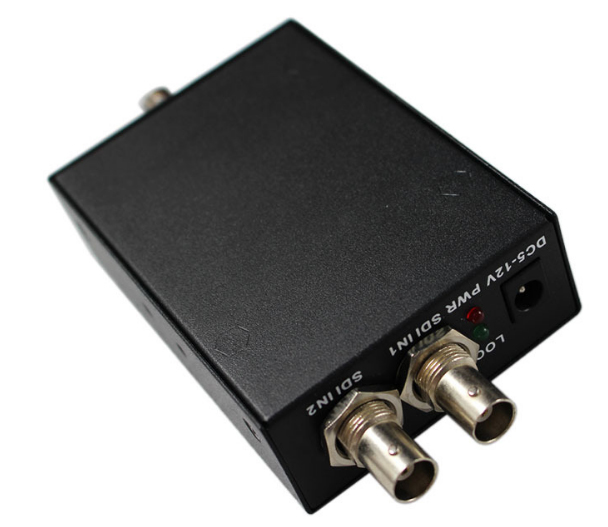

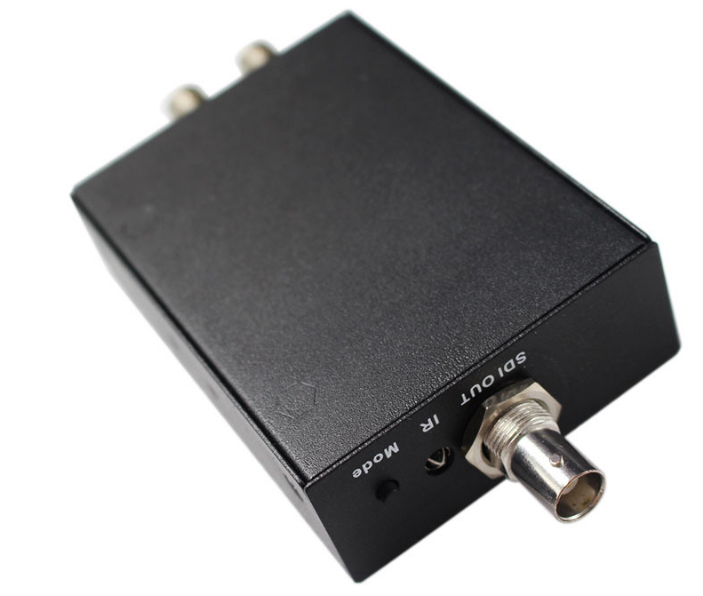

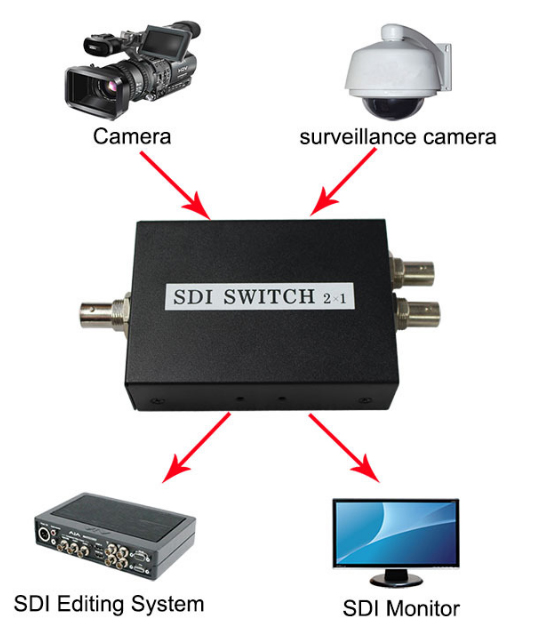

2-in/1-out sdi switchers
Second, 2 into 1 out SDI switcher features, details
1、Intelligent identification function is more compatible
Automatic identification compatible with SD-SDI, HD-SDI, 3G-SDI, full-format SDI signal, support from 143/Mb/s to 297/Mb/s full-format SDI rate.
2、Professional signal processing technology broadcast-grade signal transmission
Intelligent circuit design technology, effective prevention of circuit electromagnetic interference, professional signal processing technology, direct signal transmission non-compression, signal distortion-free, no delay, HD 1080p perfect output, up to broadcast level.
3、Flexible switching mode is more convenient and faster
Equipment provides a variety of flexible switching methods to meet more needs
4、Unique signal enhancement transmission distance farther
Support SDI signal long 300 meters output, high fidelity design, professional op amp chip, long distance output is still perfect to achieve HD 1080p
5、The details determine the quality
Can withstand instant high voltage lightning protection indicators can reach contact discharge 8kv, air discharge 15kv products tested by a variety of display devices, perfect output, good compatibility, the shell uses high-grade metal design, strong antioxidant capacity, corrosion resistance.
Three, 2 into 1 out SDI switcher parameters
SDI input interface: BNC SDI*2
SDI output interface: BNC SDI*1
SDI impedance: 75 ohms
Support SDI rate: 143-297Mb / s
SDI signal output amplitude: 800mVp-p
SDI signal format: SD-SDI HD-SDI 3G-SDI
Operating temperature: 0℃-60℃
SDI standard: compatible with SMPTE424M,SMPTE292M and SMPTE259M-C
SDI input resolution: 480i@60Hz/576i@50Hz/720P@50Hz/720P@60Hz/1080i@50Hz/1080i@60Hz/1080P@24@25@30@50@60Hz
SDI output resolution: 480i@60Hz/576i@50Hz/720P@50Hz/720P@60Hz/1080i@50Hz/1080i@60Hz/1080P@24@25@30@50@60Hz
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
