• SD/ HD/ 3G SDI extender over fiber optic/ fiber optic cable

  • Supports HDTV resolutions up to 1080p bie 60Hz (Full HD)

  • Fiber optic transmission : 300 m (MM)

  • 10km single mode fiber (SM)

  • HDMI output: 1 x HDMI type A

  • description

  •      1x4 SPLITTER

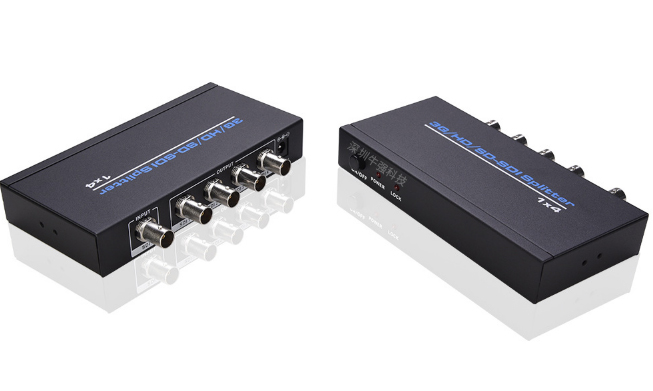

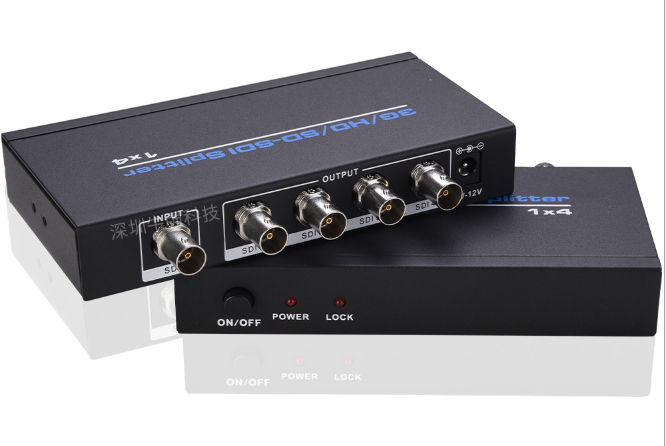

  •   SDI Splitter One-in-four SDI One-in-four SDI Extender Splitter 1 in 4 (3G / HD/ SD-SDI TO Repeater)
    The four-port SDI distributor can easily distribute one SDI serial digital video signal to four SDI display devices without loss, distortion or delay, supporting SD-SDI, HD-SDI and 3G-SDI format signals, and amplifying SDI signals.

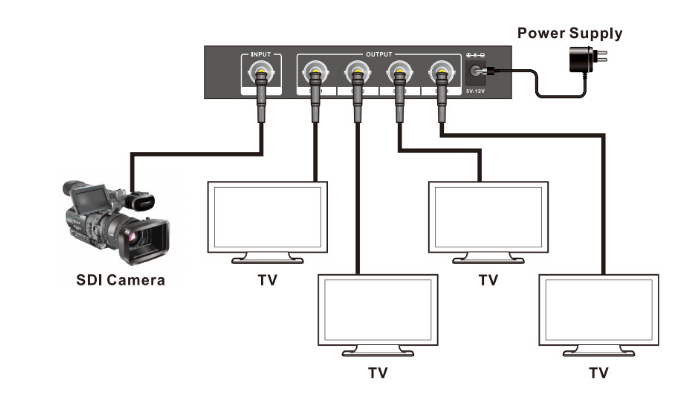

    One SDI signal input is distributed into four SDI signal outputs
    Support SD-SDI, HD-SDI and full HD 3G-SDI video formats
    SDI supports 1080P/1080I/720P/576I/ 480I video formats
    Support SDI transmission rate SD-SDI: 270Mbps, HD-SDI: 1.485Gbps and 3G-SDI: 2.97Gbps.
    Maximum cable length (SYV-75-5): SD supports 400m, HD supports 200m, 3G supports 80-100m (Note: transmission distance for different cable specifications, test results will vary)
    Support 8bit, 10bit, 12bit deep color
    Support up to 3G-SDI
    Synchronous output of audio and image
    Support clock recovery function
    Built-in ESD protection circuit, can effectively prevent electrostatic damage
    No software setting, support hot-swappable, plug-and-play function
    Wide voltage input, can support DC5V~12V input

    Applications in
      Urban traffic monitoring system
      Public security, safe city monitoring system
      Industrial monitoring (airport, chemical, steel, petroleum, railroad, water conservancy, mining, etc.)
      Military command system, military monitoring (warehouses, border defense, guards, national defense, etc.)
      Stadiums (live video, audio transmission)
      TV program transmission system, live relay, HD video conference system





      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
