4 into 4 out SDI matrix

  • SD/ HD/ 3G SDI extender over fiber optic/ fiber optic cable

  • Supports HDTV resolutions up to 1080p bie 60Hz (Full HD)

  • Fiber optic transmission : 300 m (MM)

  • 10km single mode fiber (SM)

  • HDMI output: 1 x HDMI type A

  • description

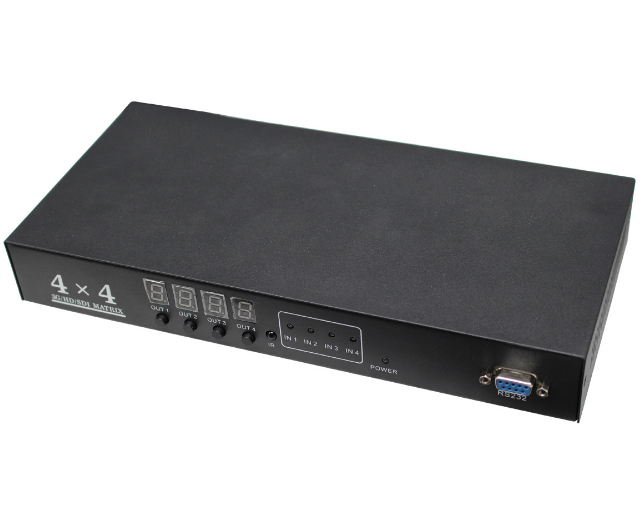

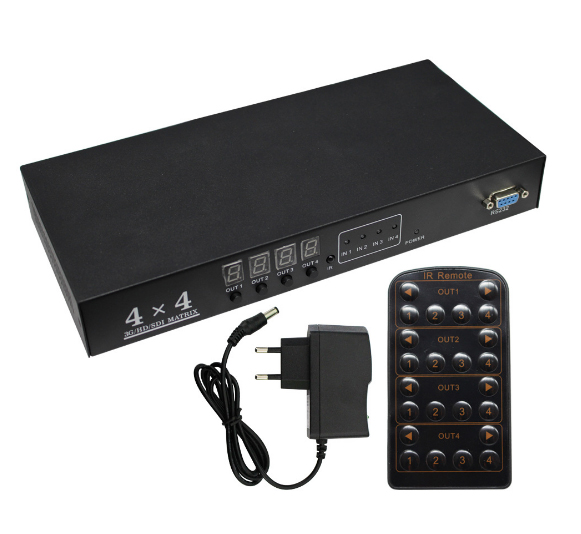

  •   4 into 4 out SDI matrix

  • SDI matrix 4 into 4 out switcher with full SMD process, high reliability, strong shock resistance!

    Product features

    1、Power-off state memory function
    With power failure field switching memory protection function, video synchronization or separation switching function, with RS232 communication interface

    2、Original digital chip
    4 into 4 out sdi matrix switcher using the original digital video processing chip, the image is particularly clear, the maximum data rate of 4.5Gbps ultra-high bandwidth transmission

    3、ESD electrostatic protection function
    All SMD SMD process has high reliability, strong shock resistance, low defect rate of solder joints, ESD process and electrostatic protection function

    4、Long distance transmission distortion gain compensation technology
    Adopt signal distance transmission distortion gain compensation technology, balanced compensation transmission distance up to 300 meters

    5、Three switching modes
    4 into 4 out sdi matrix switcher with a panel button, infrared control, RS232 three control methods, so you can control the remote more convenient and fast

    Overall power consumption: <2W
    Product material: metal shell
    Support SDI rate: 143-2970MB / S
    SDI standard compatibility: SMPTE424M,SMPTE292Mand SMPTE259M-C
    SDI signal output amplitude: 800mVp-p
    SDI signal format: SD-SDI HD-SDI 3G-SDI
    SDI input interface: BNC SDI×4
    Adaptable temperature: 0℃~60℃

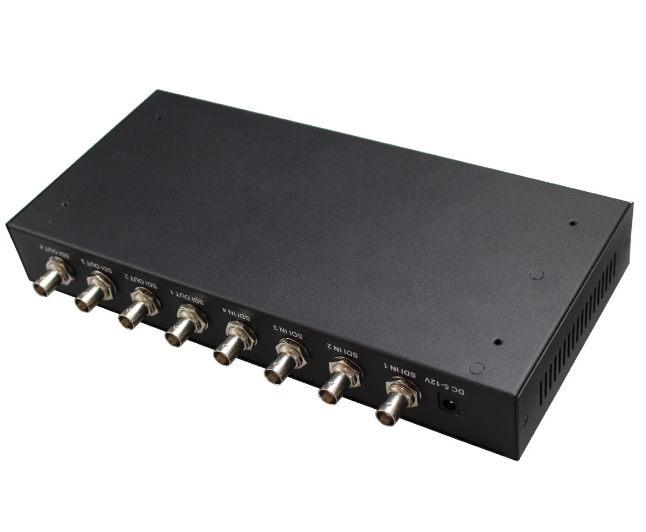

    SDI output interface: BNC SDI×4
    SDI input resolution: 480i@60Hz/576i@50Hz/720@50Hz/720P@60Hz/1080i@50Hz/1080i@60Hz/1080P@24@25@30@50@60Hz/
    SDI output resolution: 480i@60Hz/576i@50Hz/720@50Hz/720P@60Hz/1080i@50Hz/1080i@60Hz/1080P@24@25@30@50@60Hz/.






      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
