8 in 4 out SDI Matrix

  • SD/ HD/ 3G SDI extender over fiber optic/ fiber optic cable

  • Supports HDTV resolutions up to 1080p bie 60Hz (Full HD)

  • Fiber optic transmission : 300 m (MM)

  • 10km single mode fiber (SM)

  • HDMI output: 1 x HDMI type A

  • description

  •    8 in 4 out SDI Matrix

  •  8X4 SDI Matrix Switcher SDI 8 in 4 out Full HD SD-SDI HD-SDI 3G-SDI SDI signal digital video matrix switcher for DVD STB monitor

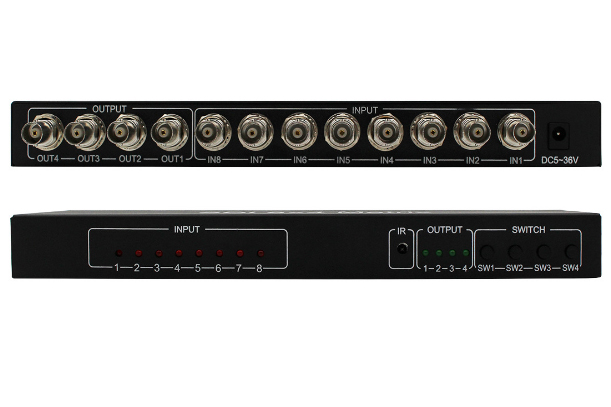

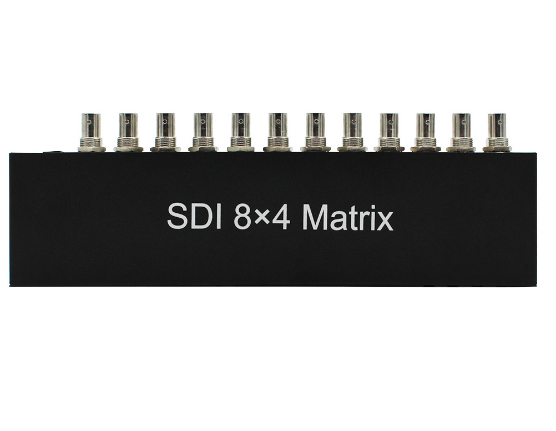

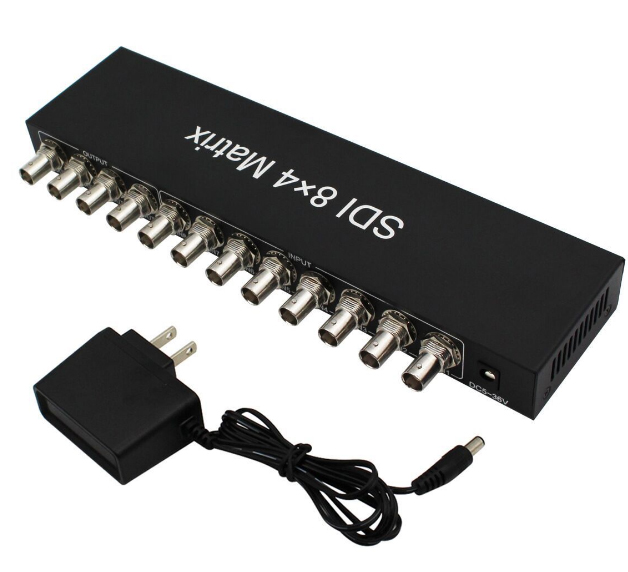

    This product is SDI 8×4 matrix, which can convert 8 ports of SDI signal to any other 4 independent output ports, supporting Full-HD SDI signal input and output. This matrix can be widely used in SDI broadcast room, non-linear editing field, CCTV security system and training showroom, etc.

    ---Input: 8*SDI
    ---Output: 4*SDI
    ---SDI input/output resolution: 480i60,576i50,720p50/60,1080i50/60,1080p24/25/30/50/60
    ---This product is built-in wide voltage design, support DC 5-12V voltage input (maximum support 2W), more suitable for projects.
    ---Infrared remote control, so you can use without the remote control
    Matrix exposure.
    --- Support signal transmission distance up to SD-SDI support 300M, HD-SDI support 200M, 3G-SDI support 100M.
    ---Video format: support SD-SDI (270Mb/s), HD-SDI (1.485Gb/s), 3G-SDI (2.97Gb/s) video format.
    --- Power supply: DC5-36V






      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
