HD 3G SDI extender over fiber optic cable with audio ,LC, SM or MM fiber

HD 3G SDI extender over fiber optic cable with audio ,LC, SM or MM fiber.

SD/ HD/ 3G SDI extender over fiber optic/ fiber optic cable
Supports HDTV resolutions up to 1080p bie 60Hz (Full HD)
Fiber optic transmission : 300 m (MM)
10km single mode fiber (SM)
HDMI output: 1 x HDMI type A

description

HD 3G SDI extender over fiber optic cable with audio ,LC, SM or MM fiber

E3G SDI Fiber Extender
NTI XTENDEX ST-1FO3GSDI-LC

SD/ HD/ 3G SDI extender over fiber optic/ fiber optic cable

Extends , HD 3G SDI signals up to 20km
Suitable for LC singlemode and multimode fiber optic cables
SDI loop output on transmitter
Two displays can be connected to the receiver

3G HD-SDI extender over fiber optic cable (over a LC single mode or multimode fiber optic cable).
It is HD 3G-SDI fiber optic extender that extends the transmission path of SDI video signals over a fiber optic cable up to 20 kilometers

This 3G-SDI extender over singlemode or multimode fiber optic cable allows you to connect up to two displays to an SD / HD / 3G-SDI video source located up to 20 kilometers away.

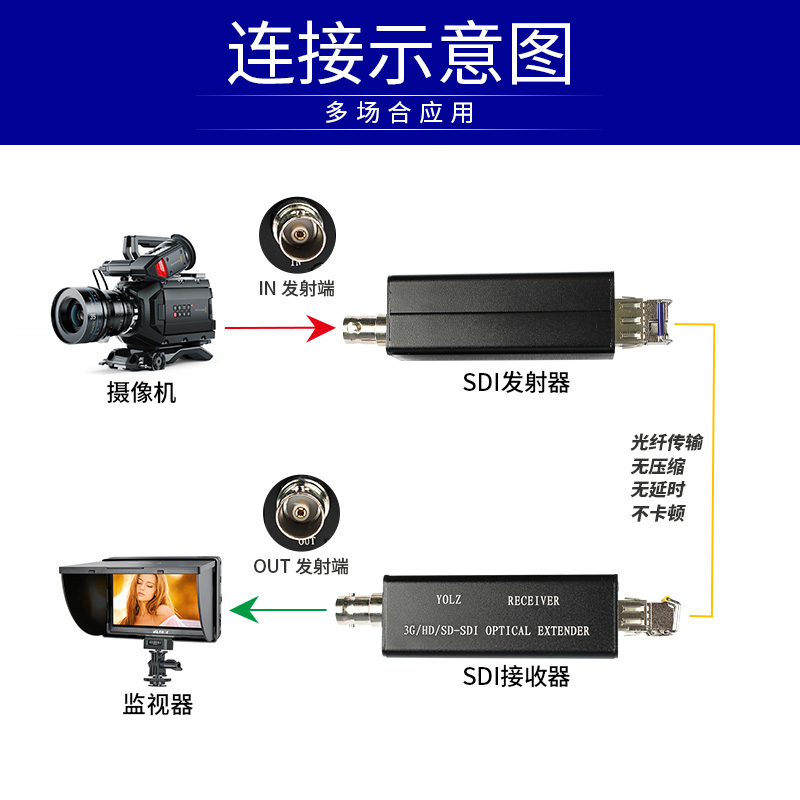

This device for 3G-SDI video signals from consists of a transmitter and a receiver to which you can connect up to two SD / HD / 3G-SDI displays that are interconnected via multimode or singlemode LC fiber optic cable.

Features
Supports HDTV resolutions up to 1080p bie 60Hz (Full HD).
SD, HD and 3G SDI signal transmission over singlemode or multimode LC fiber cable.
With a singlemode 9 micron cable, 1080p60 SDI signals can be transmitted up to 20 kilometers.
With a multimode 50 micron cable, 1080p60 SDI signals can be transmitted up to 500 meters.
Simultaneous output of the transmitted SDI video signal to two SD / HD / 3G SDI displays at the receiver.
Low RFI / EMI for sensitive applications
Fiber optic cable can be installed in conduit prior to extender installation
Integrated mounting brackets for easy surface / wall mounting
Cables can be installed before the extender is installed.
Plug-and-play SDI extender: no software installation required.

SPECIFICATIONS:

OperatingTemperatureRange	-5 to +35℃(+23 to +95℉)
OperatingHumidityRange	5 to 90%RH (No Condensation)
Video Input(Transmitter)	1xHDMI Type A, 19-pin, female
Video Output(Receiver)	1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)	1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required^①	SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format	4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format	Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input	HDCP 2.2, HDCP 1.4
HDCP Output	HDCP 1.4
Power consumption	Transmitter: 3watts(Maximum) Receive: 3watts(Maximum)
Dimension (L×W×H)	Transmitter: 9610025mm Receive: 9610025mm
Net Weight	475g(Pair)
