3G SDI Extender over a Singlemode LC Fiber Optic Cable with Reverse 485 Tally

3G SDI Extender over a Singlemode LC Fiber Optic Cable with Reverse 485 Tally.

3G HD-SDI Extender over Fiber Optic Cable
Supports HDTV resolutions up to 1080p bie 60Hz (Full HD)
Fiber optic transmission : 300 m (MM)
10km single mode fiber (SM)
HDMI output: 1 x HDMI type A

description

3G SDI Extender over a Singlemode LC Fiber Optic Cable with Reverse 485 Tally

3G SDI Extender over a Singlemode LC Fiber Optic Cable

3G HD-SDI Extender over Fiber Optic Cable
HD / 3G-SDI fiber optic extender extends the transmission path of SDI video signals over a single-mode LC fiber optic cable up to 20 kilometers .

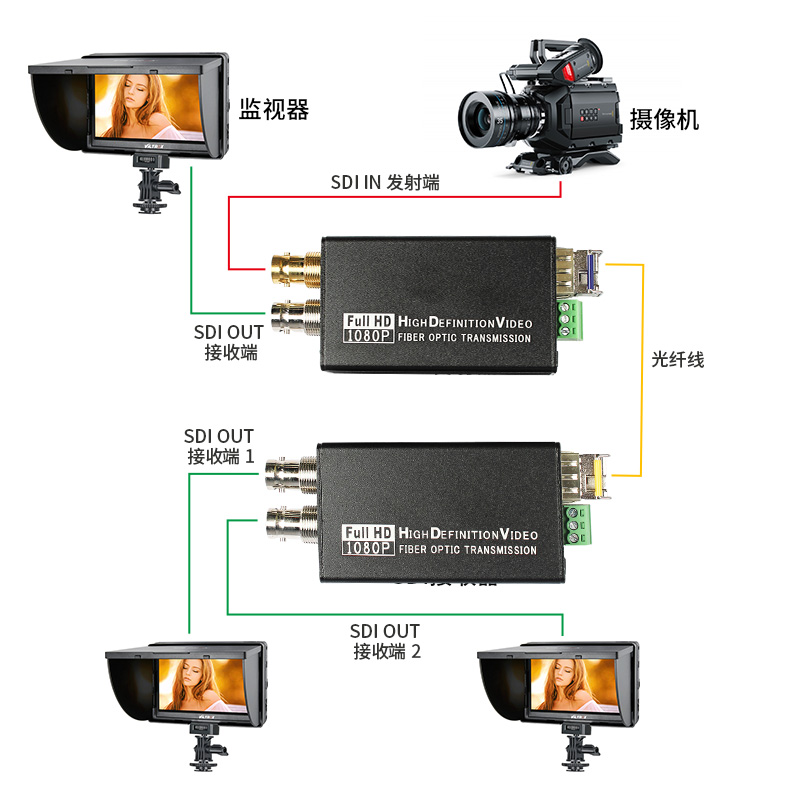

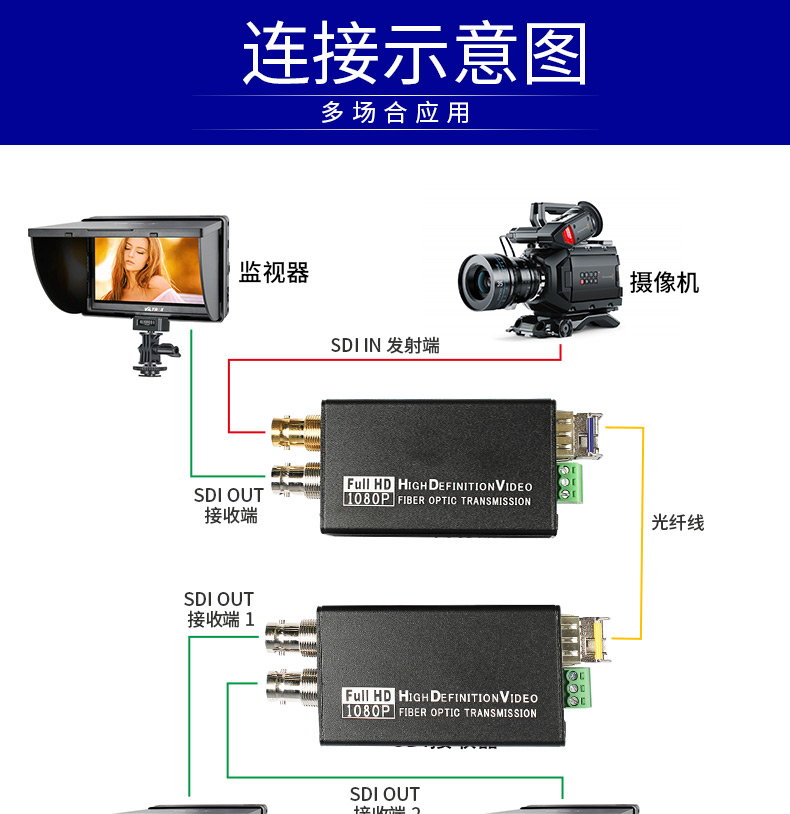

With this 3G-SDI extension over fiber optic cable, you can connect up to two displays to an HD 3G-SDI video source located up to 20 kilometers away.

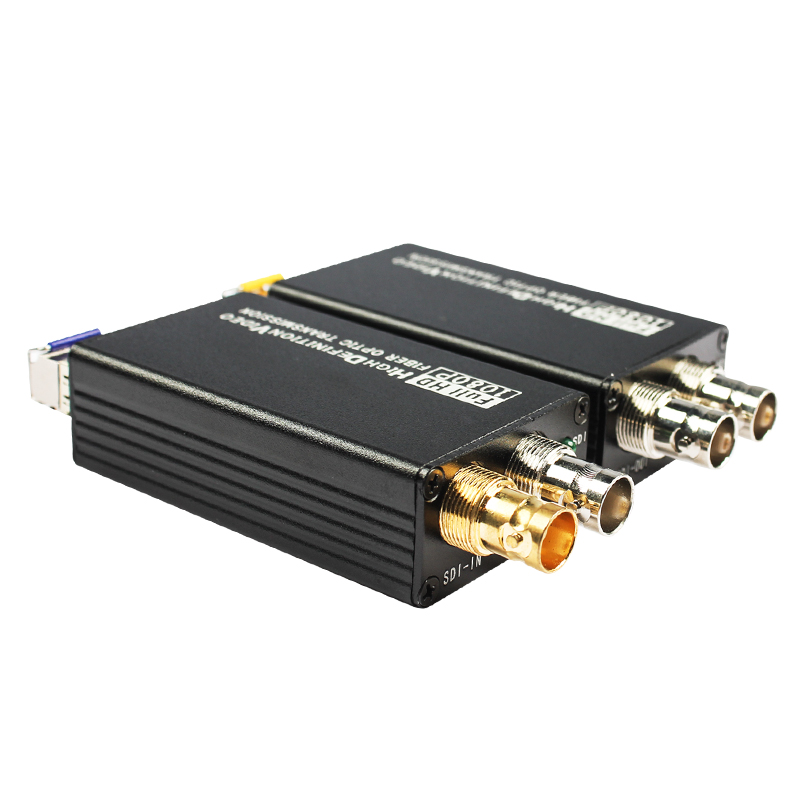

This device for 3G-SDI video signals from consists of a transmitter and a receiver to which you can connect up to two HD 3G-SDI displays, which are connected via a singlemode LC fiber optic cable.

Meets SMPTE SDI standards maintaining error free transmission of SMPTE 424M, 292M, 259M and ASI over the entire 20 Km distance

It provides error free transmission . Along with SDI video, bi-directional RS- 485 serial data and tally is sent on the same fiber.

The transmission of RS485 control signals makes this 3G HD-SDI extender ideal for use in CCTV applications in conjunction with PTZ cameras.

SPECIFICATIONS:

OperatingTemperatureRange	-5 to +35℃(+23 to +95℉)
OperatingHumidityRange	5 to 90%RH (No Condensation)
Video Input(Transmitter)	1xHDMI Type A, 19-pin, female
Video Output(Receiver)	1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)	1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required^①	SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format	4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format	Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input	HDCP 2.2, HDCP 1.4
HDCP Output	HDCP 1.4
Power consumption	Transmitter: 3watts(Maximum) Receive: 3watts(Maximum)
Dimension (L×W×H)	Transmitter: 9610025mm Receive: 9610025mm
Net Weight	475g(Pair)
