HD 3G sdi Fiber Optic Extender with bilateral audio rs485/422 1920x1080p@60hz LC

  • 3G-SDI and HD-SDI video and asi signal automatic recognition

  • Compliant with SMPTE424M, smpte292m,SMPTE297M,SMPTE305M,SMPTE310M

  • Buffered 3G-SDI/HD-SDI/SDI loop-through input

  • 10km single mode fiber (SM)

  • HDMI output: 1 x HDMI type A

  • description

  •  HD 3G sdi Fiber Optic Extender with bilateral audio rs485/422 1920x1080p@60hz LC

       Brief details.

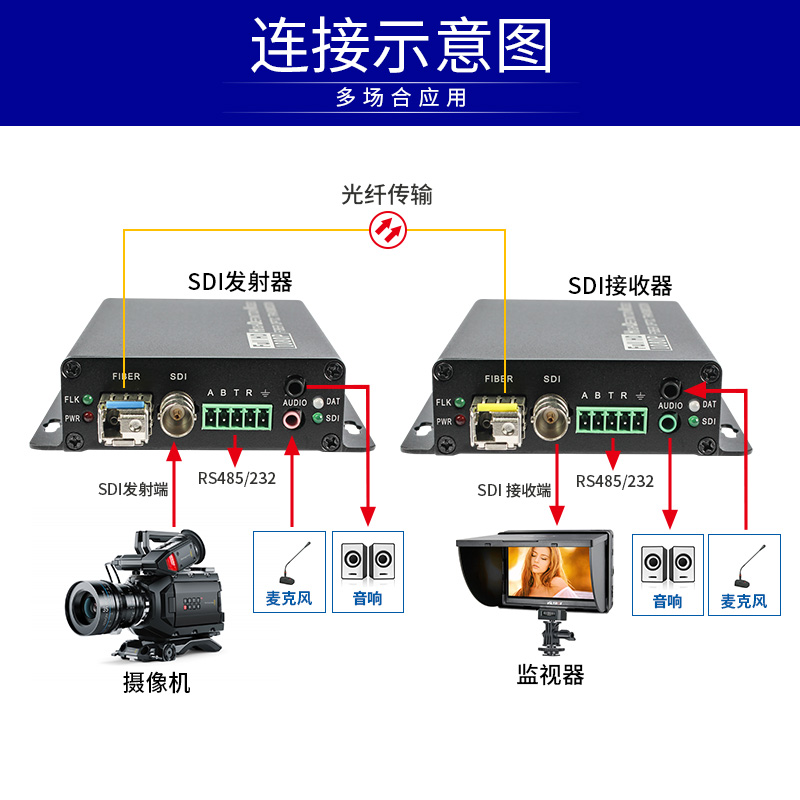

    This HD 3G digital video fiber optic transmission system can transmit one 2970Mbps and 3G-SDI to super high-definition digital video, through four fiber single mode or multimode fiber with SMPTE424M, smpte292m standards.
    Thanks to modern digital fiber transmission and SDI 3Gbit / s technology , almost no need to do any configuration, easy to set up, easy to operate, so very suitable application in the TV station, digital TV, IPTV, mobile TV, cell phone, television and other new media fields.

    This series transmitter is equipped with an automatic cable alignment circuit, and a cable driver circuit available on the receiver.
    , on both the transmitter and receiver, signal jitter elimination circuitry existing, to ensure high quality signal transmission over long distances optical cable.

    3G-SDI and HD-SDI video and asi signal automatic recognition, no need to select manually
    Compliant with SMPTE424M, smpte292m,SMPTE297M,SMPTE305M,SMPTE310M standards
    Conforms to DVB-ASI standard
    Automatic adaptation to 3G-SDI and HD-SDI speed with 1483.5M,1485M,2970Mbps
    When input signal, automatic cable alignment function, and when output signal, with driver function
    When re-sync function on the transmitter and receiver
    Perfect design LED indicators, very convenient to keep track of the transmitter and receiver working well or not
    All components including connectors are ordered from world famous manufacturers, high stability and assurance of reliability

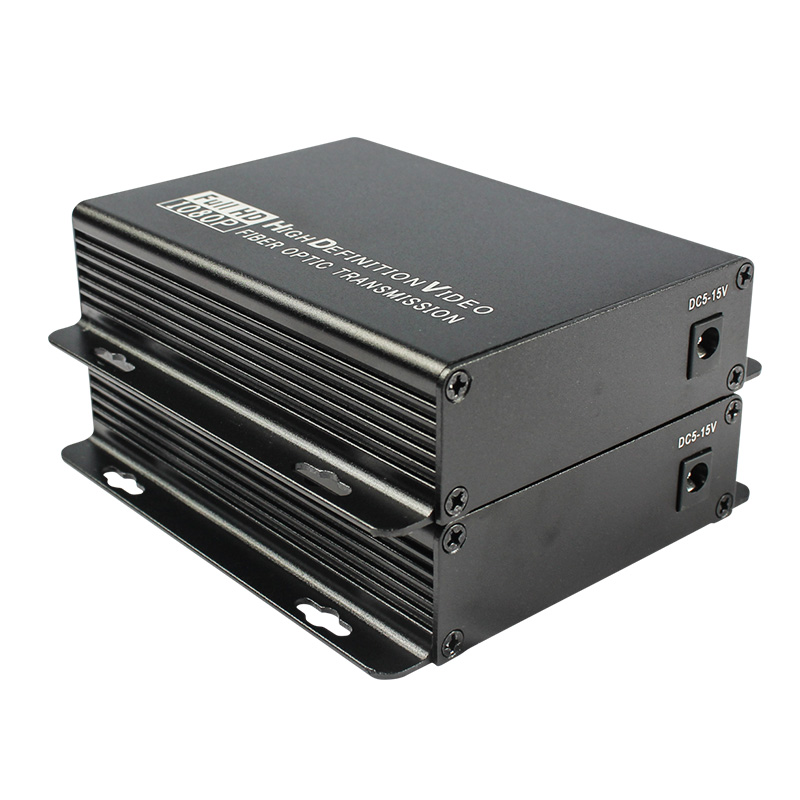

    The box body material is made of aluminum, elegant appearance and light weight
    External power supply, wide voltage range, reliable long-term running






      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
