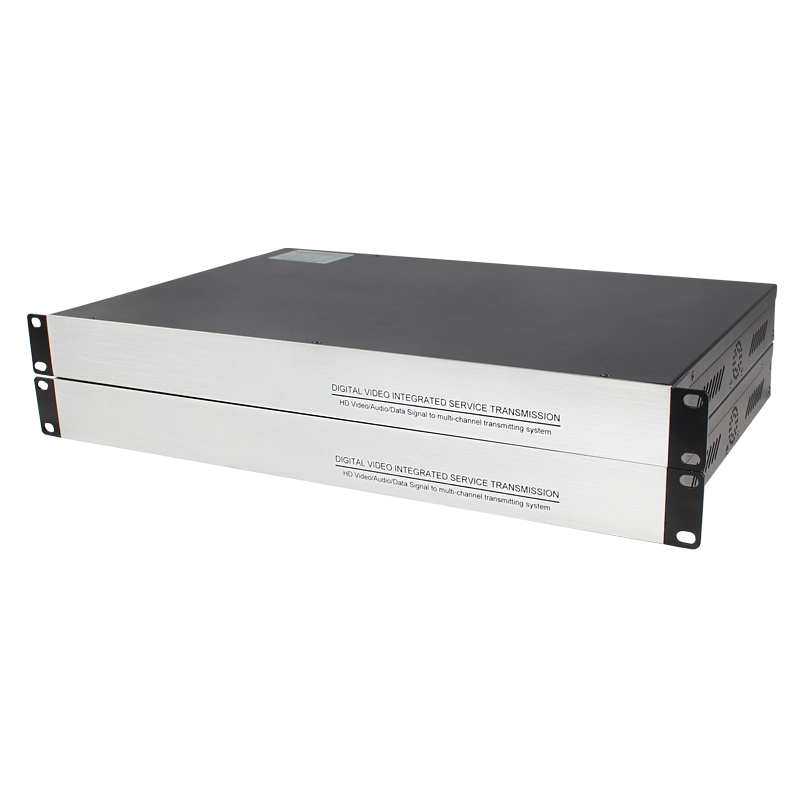

8 Channels unidirectional / 4 Channels bilateral hd 3G SDI / HDSDI Over 1 Fiber Optic Transmission Multiplexer, Handles pathological pattern

8 Channels unidirectional / 4 Channels bilateral hd 3G SDI / HDSDI Over 1 Fiber Optic Transmission Multiplexer, Handles pathological pattern

8 Ch unidirectionalHD 3G -SDI Fiber Kit
4 Channels bilateral hd 3G SDI / HDSDI Over 1 Fiber Optic Transmission
Fiber optic transmission : 300 m (MM)
10km single mode fiber (SM)
HDMI output: 1 x HDMI type A

description

8 Channels unidirectional / 4 Channels bilateral hd 3G SDI / HDSDI Over 1 Fiber Optic Transmission Multiplexer, Handles pathological pattern

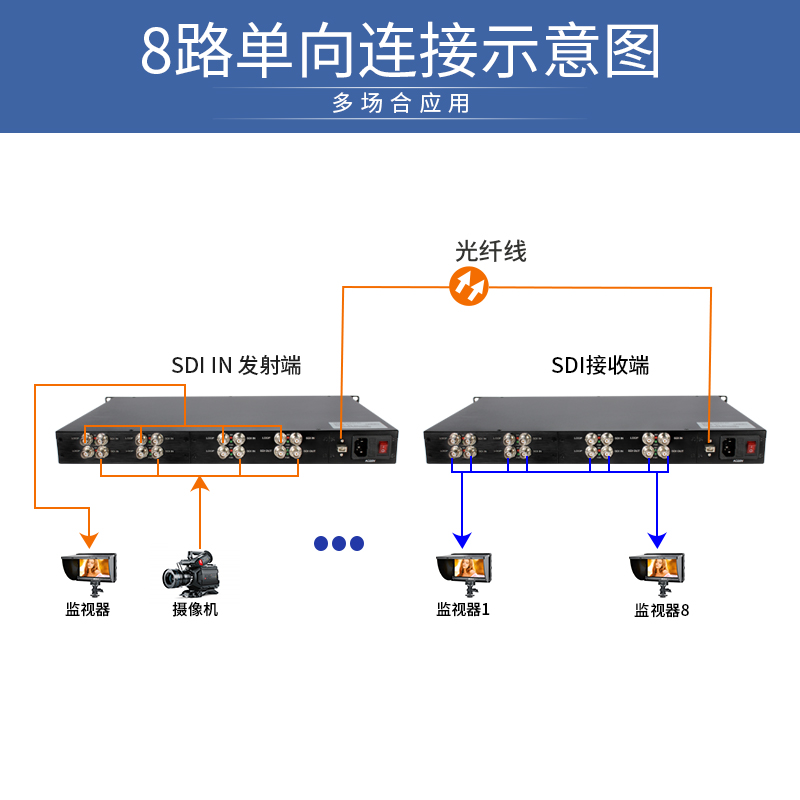

8 Channels unidirectional hd 3G SDI / HDSDI Over 1 Fiber Optic Transmission Multiplexer, Handles pathological pattern
4 Channels bilateral hd 3G SDI / HDSDI Over 1 Fiber Optic Transmission Multiplexer, Handles pathological pattern

8 Ch unidirectionalHD 3G -SDI Fiber Kit (4 Ch bilateral HD 3G -SDI Fiber Kit)
Extend HD-SDI or SD-SDI digital video signals over long distances with a single mode fiber-optic cable

Transport up to eight HD-SDI digital video signal rates at 3 Gbps each over a single fiber cable chain up to 10-80 km long.

Each of the 8 3G HD-SDI signals are completely isolated from each other, and operate at a total of 3 Gbps data rate. Each channel has its own embedded audio and ancillary data and operates as if it were the only signal in the fiber. This is achieved with CWDM technology.

Features
Supports 8 Full HD-SDI @ 3Gbps or below SDI
Carries embedded audio channels as well as SDI ancillary data
Link alarm indicators on both Tx & Rx indicate a fiber problem

SPECIFICATIONS:

OperatingTemperatureRange	-5 to +35℃(+23 to +95℉)
OperatingHumidityRange	5 to 90%RH (No Condensation)
Video Input(Transmitter)	1xHDMI Type A, 19-pin, female
Video Output(Receiver)	1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)	1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required^①	SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format	4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format	Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input	HDCP 2.2, HDCP 1.4
HDCP Output	HDCP 1.4
Power consumption	Transmitter: 3watts(Maximum) Receive: 3watts(Maximum)
Dimension (L×W×H)	Transmitter: 9610025mm Receive: 9610025mm
Net Weight	475g(Pair)
