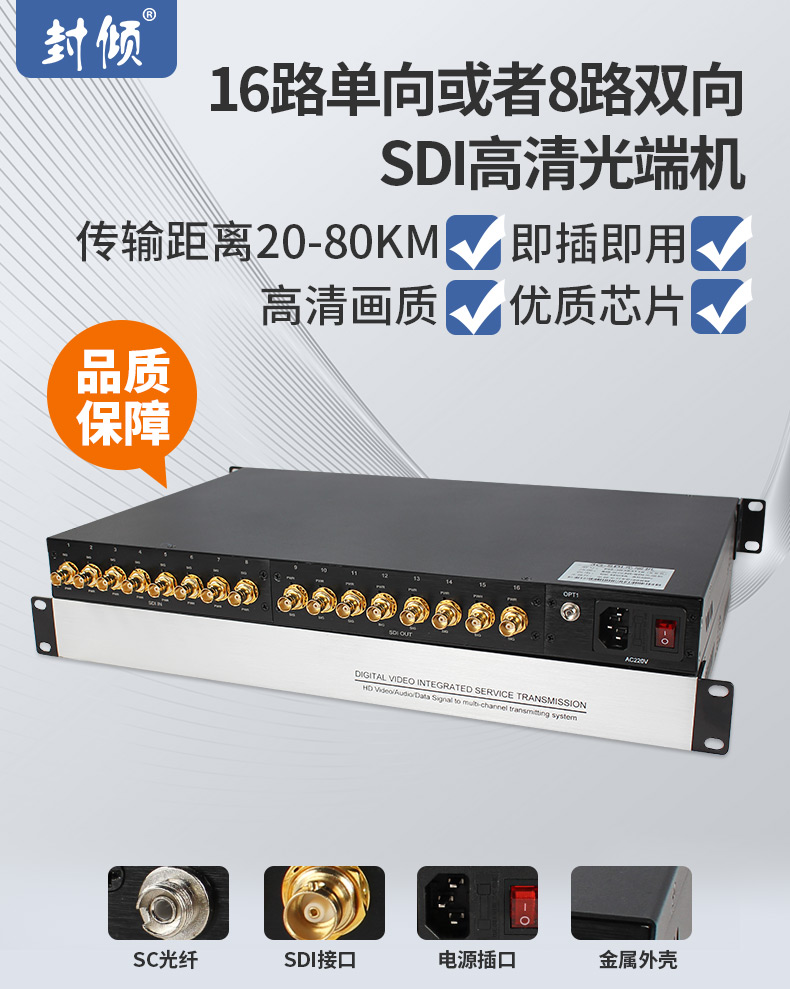

16 Channels unidirectional / 8 Channels bilateral hd 3G SDI / HDSDI Over 1 Fiber Optic Transmission Multiplexer, Handles pathological pattern

16 Channels unidirectional / 8 Channels bilateral hd 3G SDI / HDSDI Over 1 Fiber Optic Transmission Multiplexer, Handles pathological pattern

16 Ch unidirectionalHD 3G -SDI Fiber Kit
8 Channels bilateral hd 3G SDI / HDSDI Over 1 Fiber Optic Transmission
Fiber optic transmission : 300 m (MM)
10km single mode fiber (SM)
HDMI output: 1 x HDMI type A

description

16 Channels unidirectional / 8 Channels bilateral hd 3G SDI / HDSDI Over 1 Fiber Optic Transmission Multiplexer, Handles pathological pattern

16 channel unidirectional 3G SDI Over 1 Fiber 1080p@60HZ Extender

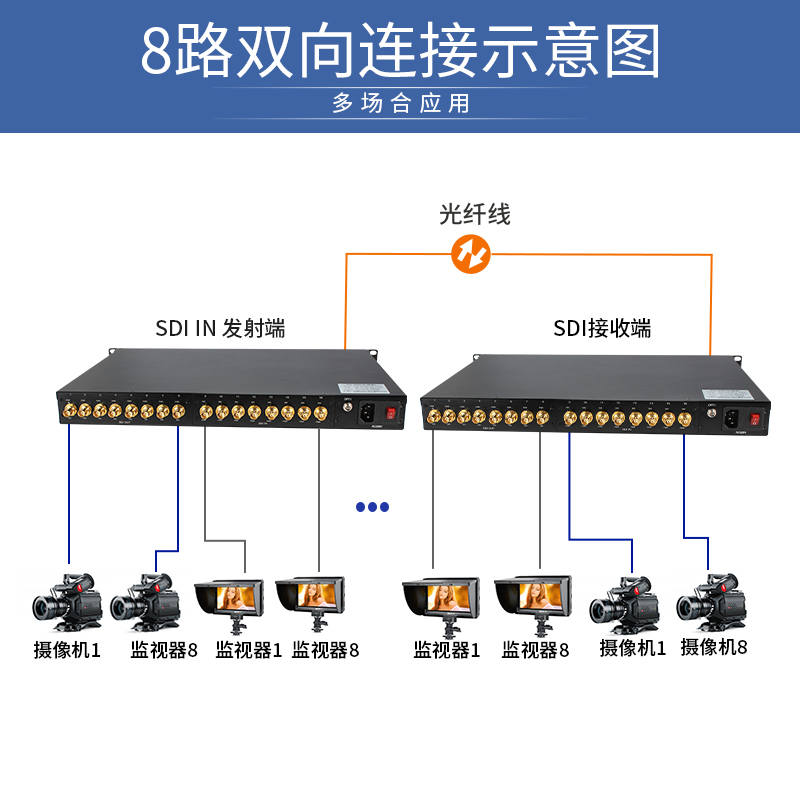

8 channel bilateral 3G SDI Over 1 Fiber 1080p@60HZ Extender

16 channel unidirectional 3G SDI / HDSDI Over 1 Fiber Extender
8 channel bilateral 3G SDI / HDSDI Over 1 Fiber Extender

16 Channel unidirectional 3G HD-SDI Fiber Optic Extender
Extend four 3G HD-SDI or SD-SDI digital video signals over long distances on single mode fiber optic cable

SDI is normally run over coaxial cable on the BNC connector, however, the maximum cable distance is limited to about 100 meters.
This kit is a compact power house that will allow any user to transport four channels of 3 Gbps HD-SDI Serial Data Interface over a single strand of fiber. In addition, this Thor Fiber Transmitter and Receiver Kit will send RS485 in reverse for easy control over the kit. This robust unit creates an easy drop in environment for users requiring multiple HD-SDI sources on one Fiber across any application

No Link Alarms
The link alarm status on both the transmitter and receiver indicates when the link is not functional.

Features
Supports 4 Full HD-SDI @ 3 Gbps or below SDI or ASI digital video
Carries embedded audio channels as well as SDI ancillary data
RS-485 serial return path channel for control equipment on the Tx end
Link alarm indicators on both Tx & Rx indicate a problem with the fiber

SPECIFICATIONS:

OperatingTemperatureRange	-5 to +35℃(+23 to +95℉)
OperatingHumidityRange	5 to 90%RH (No Condensation)
Video Input(Transmitter)	1xHDMI Type A, 19-pin, female
Video Output(Receiver)	1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)	1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required^①	SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format	4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format	Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input	HDCP 2.2, HDCP 1.4
HDCP Output	HDCP 1.4
Power consumption	Transmitter: 3watts(Maximum) Receive: 3watts(Maximum)
Dimension (L×W×H)	Transmitter: 9610025mm Receive: 9610025mm
Net Weight	475g(Pair)
