Uncompressed HD3G SDI Fiber Optic Extender with loop out ,sm/mm single fiber, LC 300m -20km

  • Supports data rates from 270 Mbps to 2.97 Gbps

  • SD Pro Processing provides de-interlacing of SD video

  • Buffered 3G-SDI/HD-SDI/SDI loop-through input

  • 10km single mode fiber (SM)

  • HDMI output: 1 x HDMI type A

  • description

  •  Uncompressed HD3G SDI Fiber Optic Extender with loop out ,sm/mm single fiber, LC 300m -20km

      Main Features
    Converts 3G-SDI, HD-SDI, and SDI signals for long distance fiber optic transmission to a FOX Series DisplayPort, HDMI, DVI, or VGA receiver.
    Supports data rates from 270 Mbps to 2.97 Gbps
    SD Pro Processing provides de-interlacing of SD video
    Buffered 3G-SDI/HD-SDI/SDI loop-through input
    Bi-directional RS-232 signals over fiber optic cable for AV device control Audio embedding

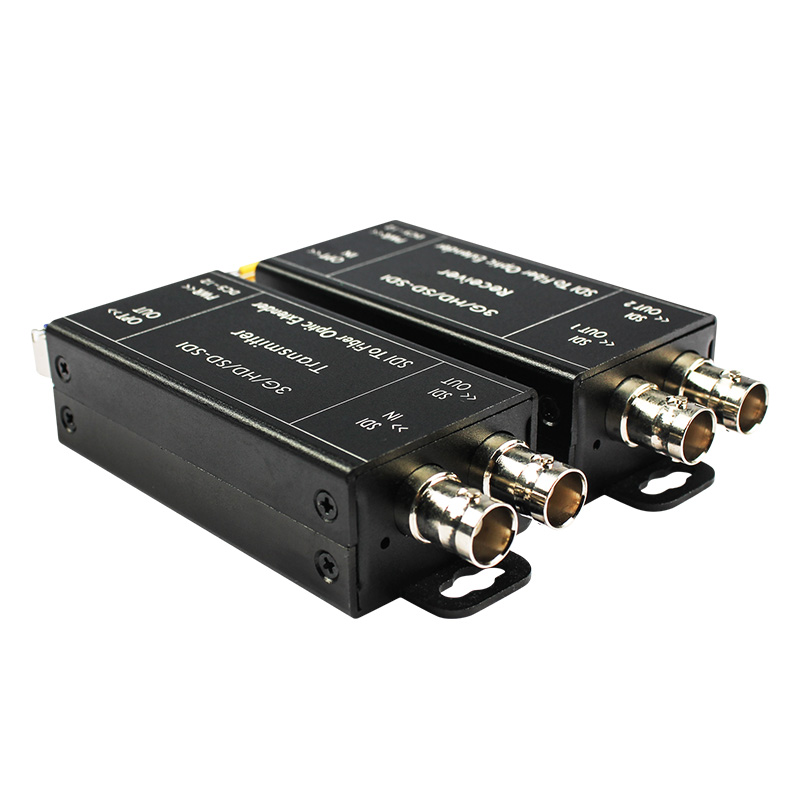

    The HD-SDI fiber optic transmitter converts 3G-SDI, HD-SDI, and SDI video signals . The HD-SDI transmitter provides simple, state-of-the-art integration of SDI content to non-SDI displays in a fiber-optic AV system.

    The transmitter is ideal for many different applications where high quality video transmission of high resolution content over long distances is required. Because the content sent over fiber is secure from unauthorized access, fiber applications are especially preferred in government, military, and medical applications. The transmitter has connections for industry standard LC connectors.

    It is ideal for installations in auditoriums, houses of worship, distance learning and other environments where transmissions

    The FOXBOX T HD-SDI MM supports 850 nm multimode fiber, most commonly used in buildings or facilities with medium transmission distances (max. 2 km). The FOXBOX T HD-SDI SM accepts both singlemode and multimode 1310 nm fiber. Very long transmission distances of up to 30 km are possible with singlemode fiber. Singlemode is used in very large facilities, such as airports and stadiums, and to connect over very long distances, such as between buildings in a university.

    Features
    Converts 3G-SDI, HD-SDI, and SDI signals for long distance fiber optic transmissions to a DisplayPort, HDMI, DVI, or VGA FOX Series receiver.
    Inputs: BNC connector with buffered loop-through input, unbalanced stereo audio on 3.5 mm stereo jack socket
    Buffered 3G-SDI/HD-SDI/SDI loop-through input - A buffered 3G-SDI loop-through i







    •


      SPECIFICATIONS:

      OperatingTemperatureRange

      -5 to +35℃(+23 to +95℉)

      OperatingHumidityRange

      5 to 90%RH (No Condensation)

      Video Input(Transmitter)





      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .



      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight

      475g(Pair)

     .
