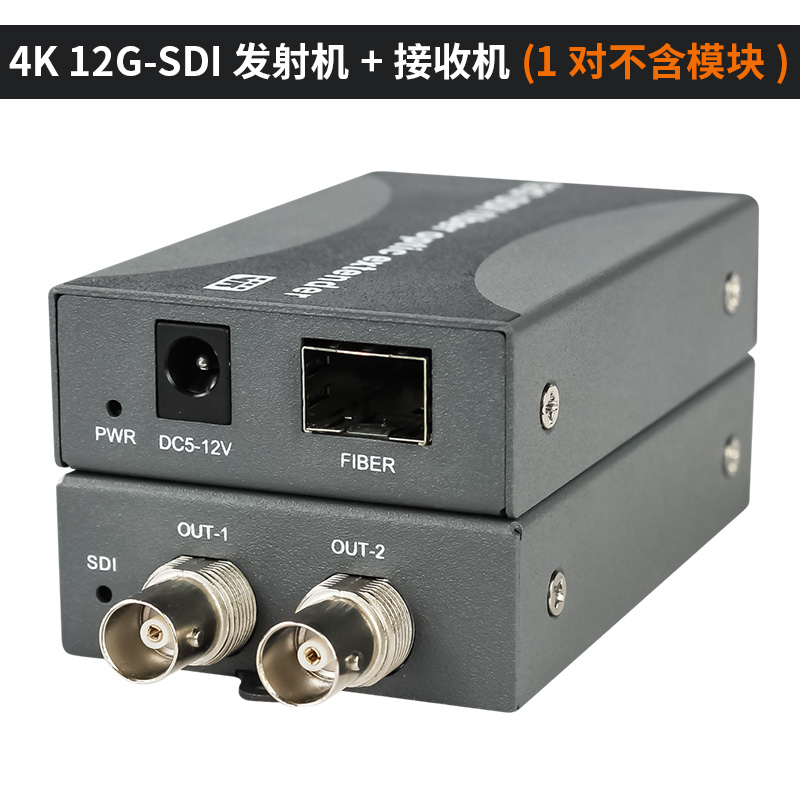

12G-SDI to fiber convertor 3840x2160, SM or MM LC Fiber Optic, pathological patterns ,Local loop out

12G-SDI to fiber convertor 3840x2160, SM or MM LC Fiber Optic, pathological patterns ,Local loop out.

Max. 3840 x 2160 @ 60 Hz 4:2:2/10Bit resolution
12G SDI 4K KVM Extender over Fiber
Fiber optic transmission : 300 m (MM)
10km single mode fiber (SM)
HDMI output: 1 x HDMI type A

description

12G-SDI to fiber convertor 3840x2160, SM or MM LC Fiber Optic, pathological patterns ,Local loop out

Real uncompressed - for transmission of extreme bit patterns
Artifact-free transmission for applications requiring high precision
12G SDI 4K KVM Extender over Fiber
Max. 3840 x 2160 @ 60 Hz 4:2:2/10Bit resolution

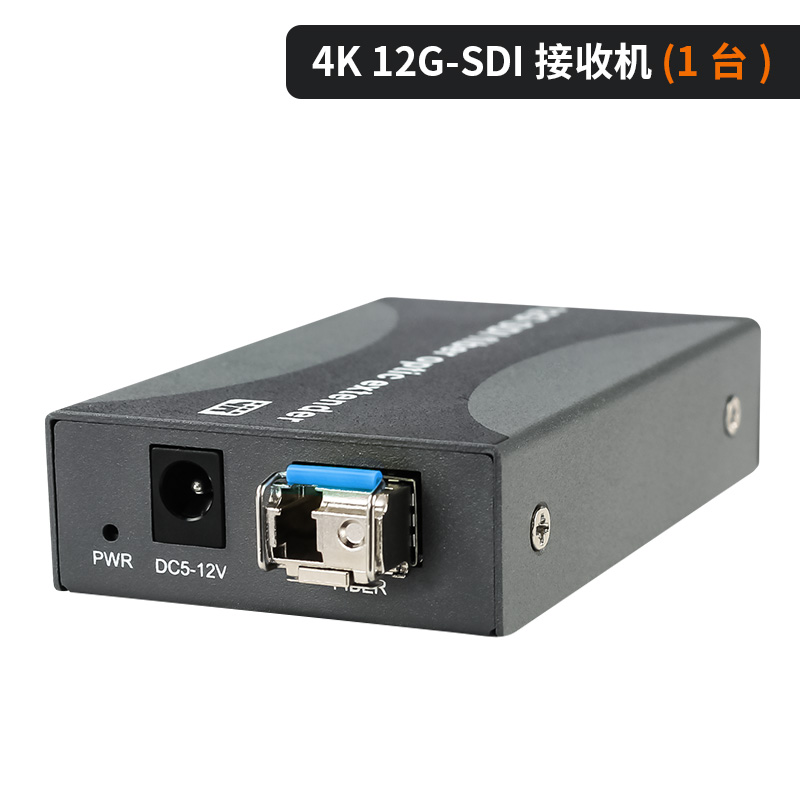

SM or MM SFP+ module up to 300m (opt 10-80km)
4K video in real time
Can be used in a Matrix Switching System up to 2000 endpoints

12G SDI - 4K Extender over fiber enclosure in uncompressed version for all critical applications. The 12G SDI - 4K Extender has a range of 300m at a resolution of 3840 x 2160 @ 60Hz with perfect color coding with 4:2:2 @10 bit per color. The 4K Extender transmits all extreme bit patterns without artifacts in uncompressed version and is suitable for all applications requiring high precision. 4K videos in real time.

12G SDI - 4K for medical, broadcast and AV applications

FEATURES

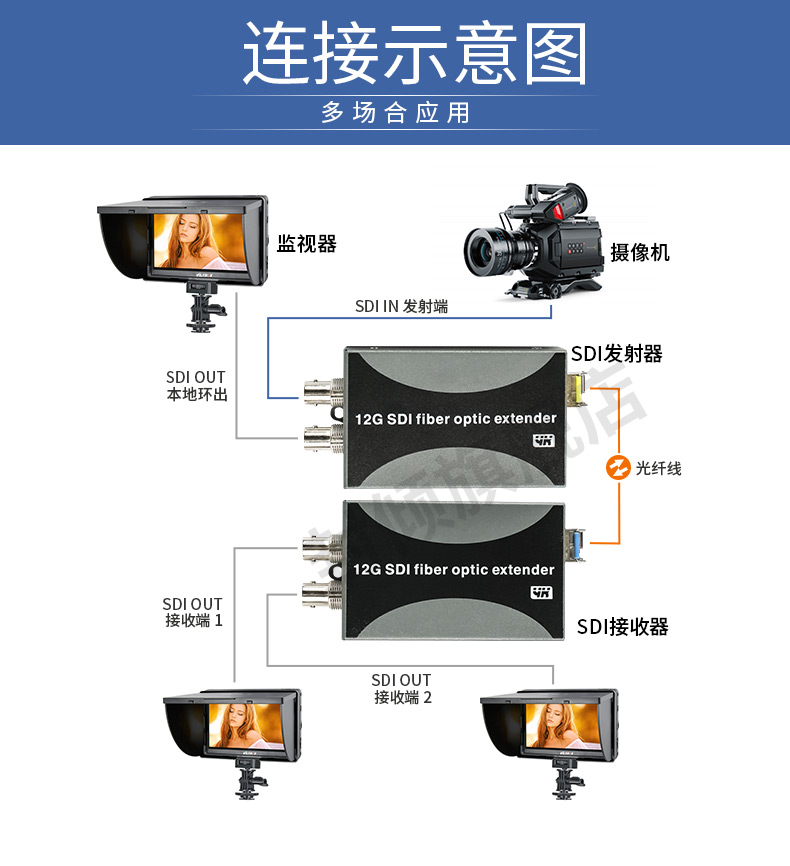

1 channel video and audio transmission of 12G SDI - 4K Extender signal over optic fiber
Handles pathological pattern
Automatic cable equalization to ensure signal integrity
With integrated reclocker 270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
Supports SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI,
Long transmission capability at least 300M (MM fiber)/10KM(SM fiber)
Terminal block power input for industrial application
Supports hot swapping and hot plugging

SPECIFICATIONS:

OperatingTemperatureRange	-5 to +35℃(+23 to +95℉)
OperatingHumidityRange	5 to 90%RH (No Condensation)
Video Input(Transmitter)	1xHDMI Type A, 19-pin, female
Video Output(Receiver)	1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)	1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required^①	SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format	4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format	Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input	HDCP 2.2, HDCP 1.4
HDCP Output	HDCP 1.4
Power consumption	Transmitter: 3watts(Maximum) Receive: 3watts(Maximum)
Dimension (L×W×H)	Transmitter: 9610025mm Receive: 9610025mm
Net Weight	475g(Pair)
