4k@60Hz 12G SDI Fiber Optic Extender with 100M/1000M Ethernet, bilateral rs232 , FC single fiber

  • 12G HD-SDI + 100/1000M Ethernet over Fiber Single Extender

  • Unidirectional RR-485 Data control

  • Fiber optic transmission : 300 m (MM)

  • 10km single mode fiber (SM)

  • HDMI output: 1 x HDMI type A

  • description

  •  4k@60Hz 12G SDI Fiber Optic Extender with 100M/1000M Ethernet, bilateral rs232 , FC single fiber

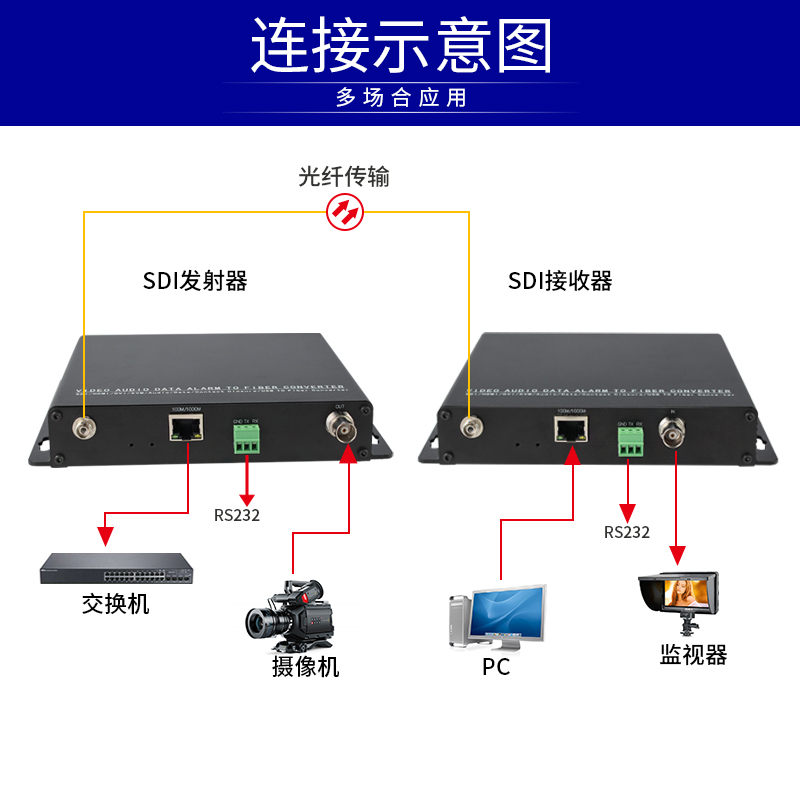

    12G HD-SDI and Ethernet 100/1000M + Bi-Directional RS232 over a single TX/RX Fiber

    12G HD-SDI + 100/1000M Ethernet over Fiber Single Extender
    12G SDI signal over single fiber
    Bi-Directional 100/1000M Etherent (RJ45)
    Unidirectional RR-485 Data control

    This deviuce Fiber is a compact power house that will allow any user to transport a single channel of 12 Gbps HD-SDI Serial Data Serial Bi-Directional Interface while simultaneously transmitting 100/1000M Ethernet Data. In addition, this Thor Fiber Fiber Transmitter and Receiver Kit will send Bi-Directional RS232for easy control over the kit.

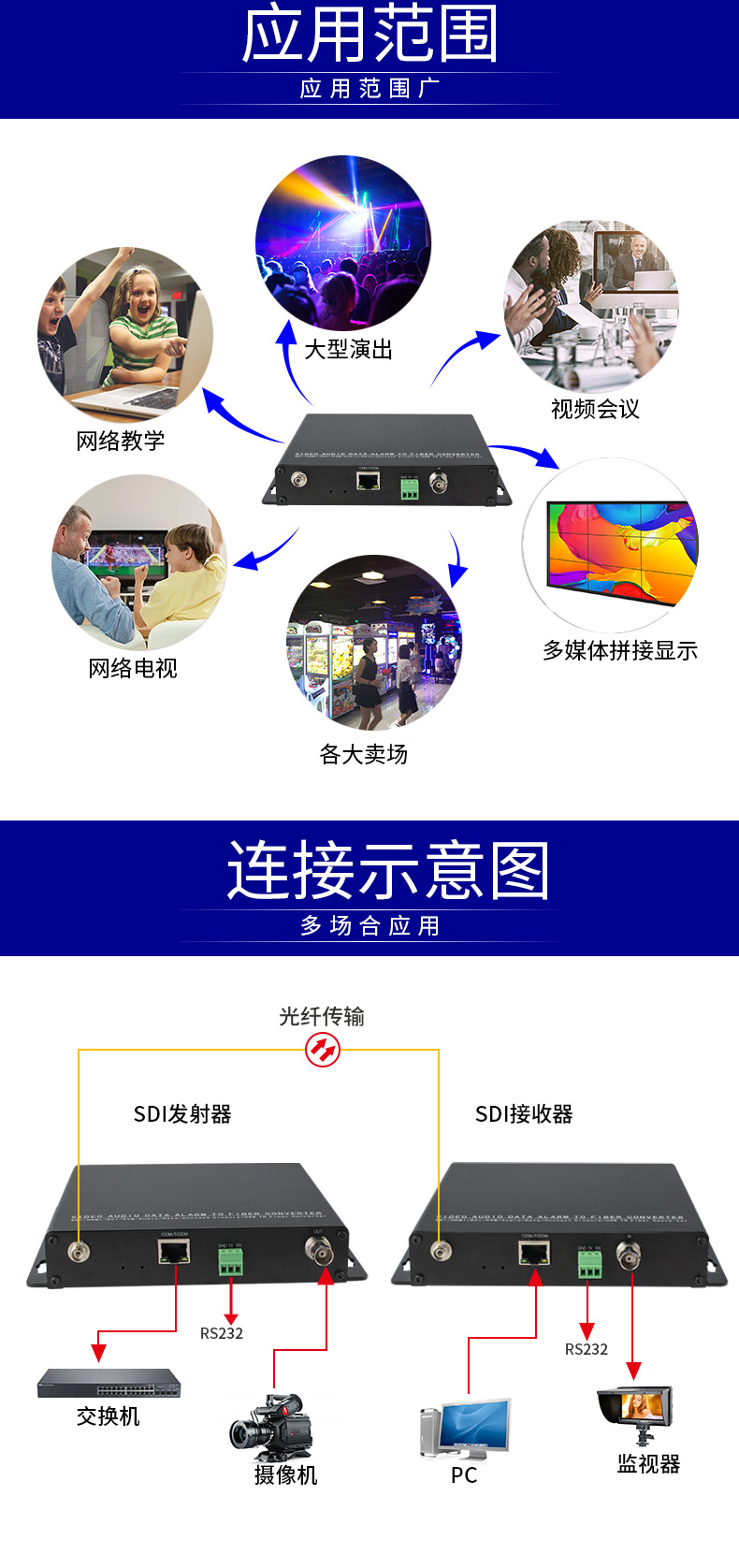

    This rugged unit creates an easy drop in environment for users requiring 12G HD-SDI and Fast Ethernet through application and even allows additional AUX Cards that can enable a host of other options such as RS232 and RS422, in place of the embedded SDI We has an excellent reputation for high quality and low cost products to help complete the project on time, in a high quality loss connection kit that will ensure you stay under budget. Commonly used in security applications, live performance environments, video surveillance, SDI control and distribution in any environment.

    Compatible with SMPTE 292M HD-SDI and SDI SMPTE 259M SD-SDI standard .

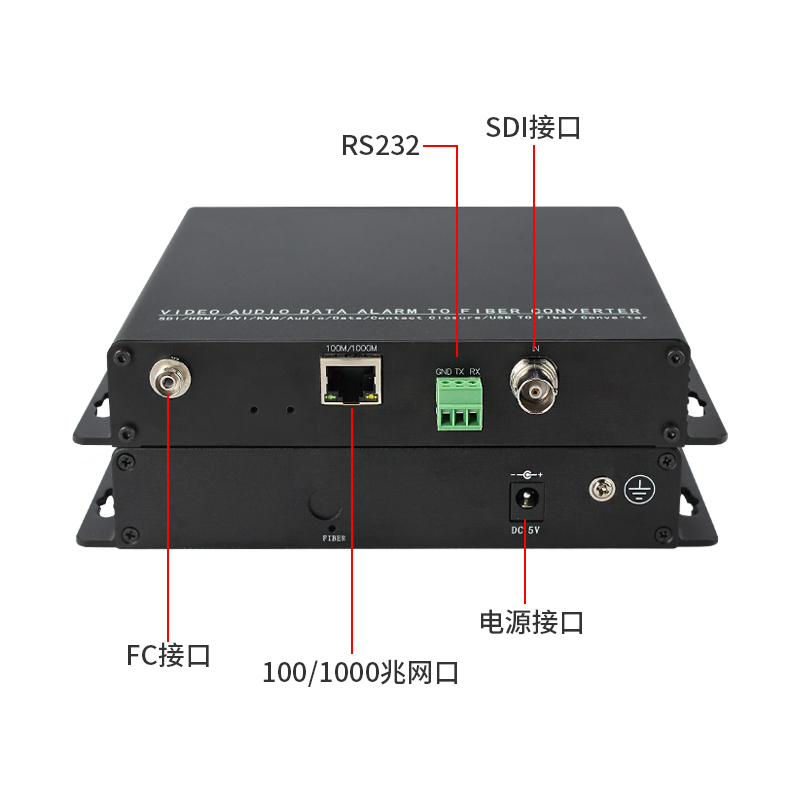

    One SD/HD-SDI(BNC), SD/ HD-SDI(BNC) and one of the fast Ethernet interfaces

    Built-in cable equalizer
    Integrated ESD and over-voltage protection circuit to avoid static and thunder damage
    With NOP (No Optical Signal) alarm indications, output status indicator and input lock indicator
    With APC circuit to stably realize the optical power






      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
