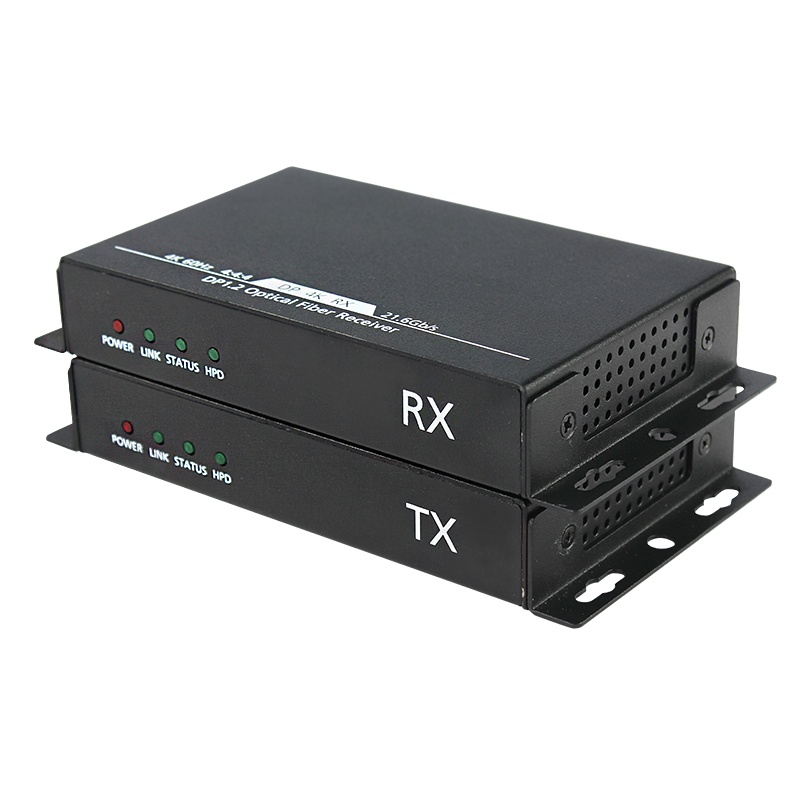

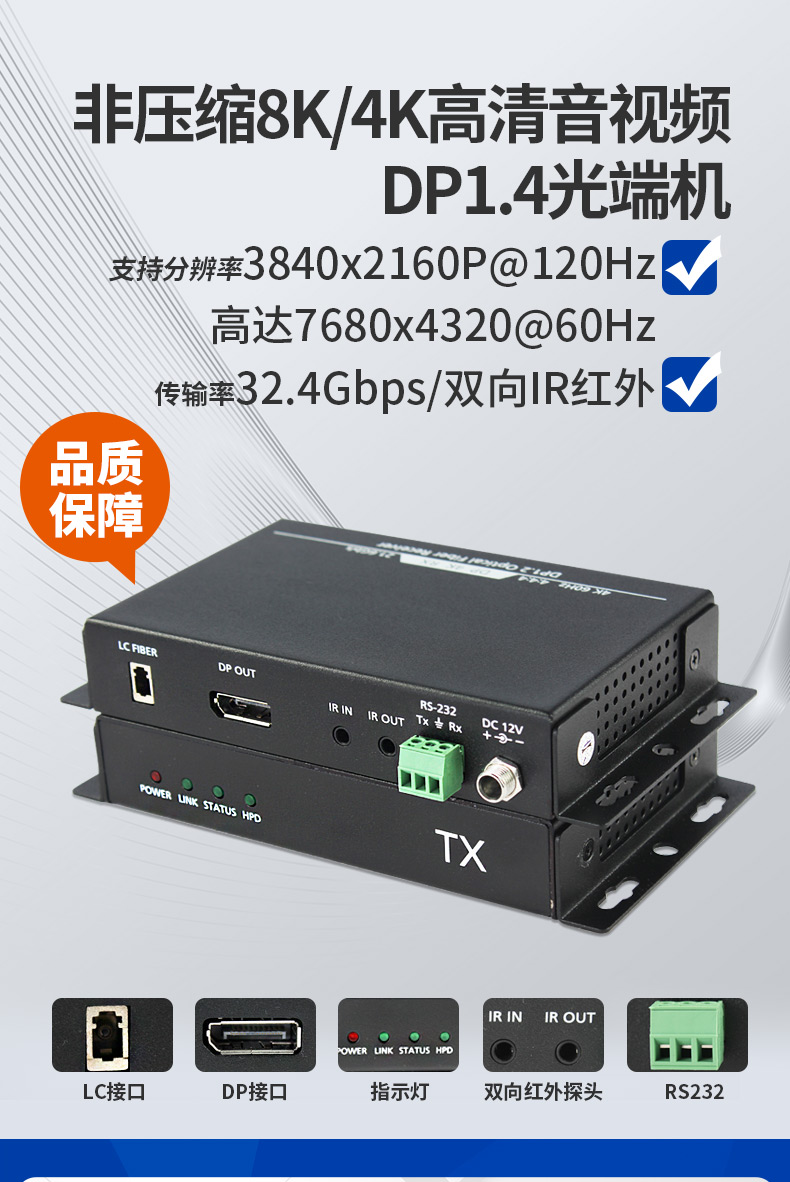

DisplayPort 1.4 Fiber Optic Extender with IR / RS232 ,sm or mm fiber, LC

DisplayPort 1.4 Fiber Optic Extender with IR / RS232 ,sm or mm fiber, LC.

Supports DisplayPort 1.4 signals up to at least 7680x4320 with DPCP
no quality loss due to compression artifacts

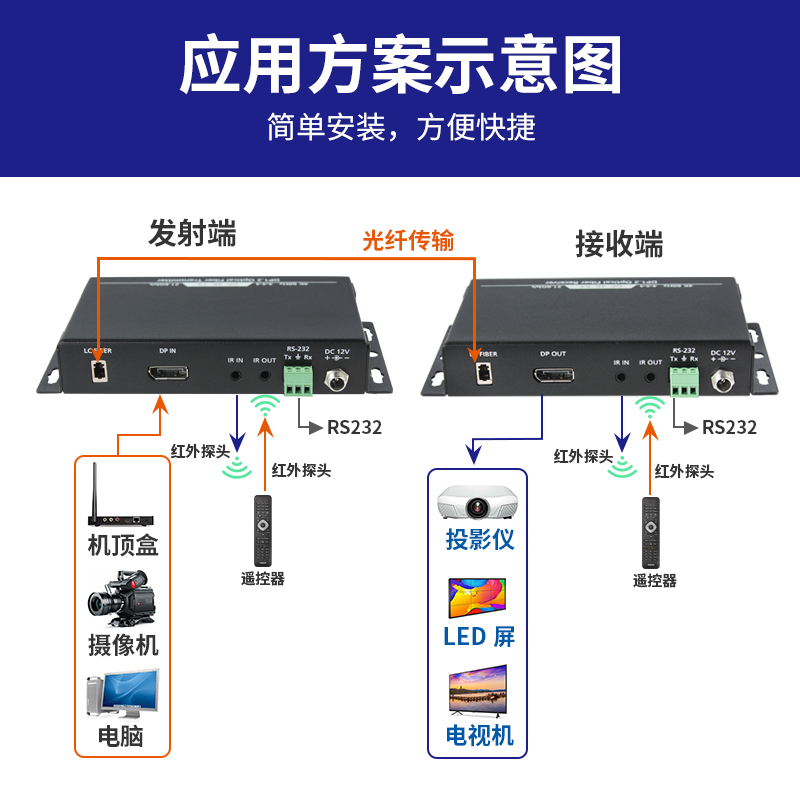

EXTEND AV SIGNALS VIA COPPER / FIBER OPTIC HYBRID
Hybrid cable - fiber for A/V; copper for power & data,
Gold-plated precision mating contacts

description

DisplayPort 1.4 Fiber Optic Extender with IR / RS232 ,sm or mm fiber, LC

Supports DisplayPort 1.4 signals up to at least 7680x4320 with DPCP (DP Content Protection), DPCP/HDCP and audio
Supports MST Multi Stream Transport and HBR3 and thus also MST hubs and multiscreen transmissions
Uncompressed transmission in full bandwidth, no quality loss due to compression artifacts
For highest resolutions and color depths, the connection cables must not be longer than 2m and they must be of correspondingly high quality
Supports Eyefinity active adapters for conversion to HDMI/DVI/VGA
Suitable for highest requirements also for professional signal transmission in medical, military and presentation areas
Galvanically isolated fiber optic transmission between transmitter and receiver to avoid EMC and grounding problems

SPECIFICATIONS:

OperatingTemperatureRange	-5 to +35℃(+23 to +95℉)
OperatingHumidityRange	5 to 90%RH (No Condensation)
Video Input(Transmitter)	1xHDMI Type A, 19-pin, female
Video Output(Receiver)	1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)	1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required^①	SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format	4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format	Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input	HDCP 2.2, HDCP 1.4
HDCP Output	HDCP 1.4
Power consumption	Transmitter: 3watts(Maximum) Receive: 3watts(Maximum)
Dimension (L×W×H)	Transmitter: 9610025mm Receive: 9610025mm
Net Weight	475g(Pair)
