DisplayPort 1.2 extender up to 21.6 Gbps over optical fiber

  • supports true 4K UHD resolution (3840x2160 or 4096x2160 at 60Hz)

  • no quality loss due to compression artifacts


  • Hybrid cable - fiber for A/V; copper for power & data,

  • Gold-plated precision mating contacts

  • description

  •  DisplayPort 1.2 extender up to 21.6 Gbps over optical fiber

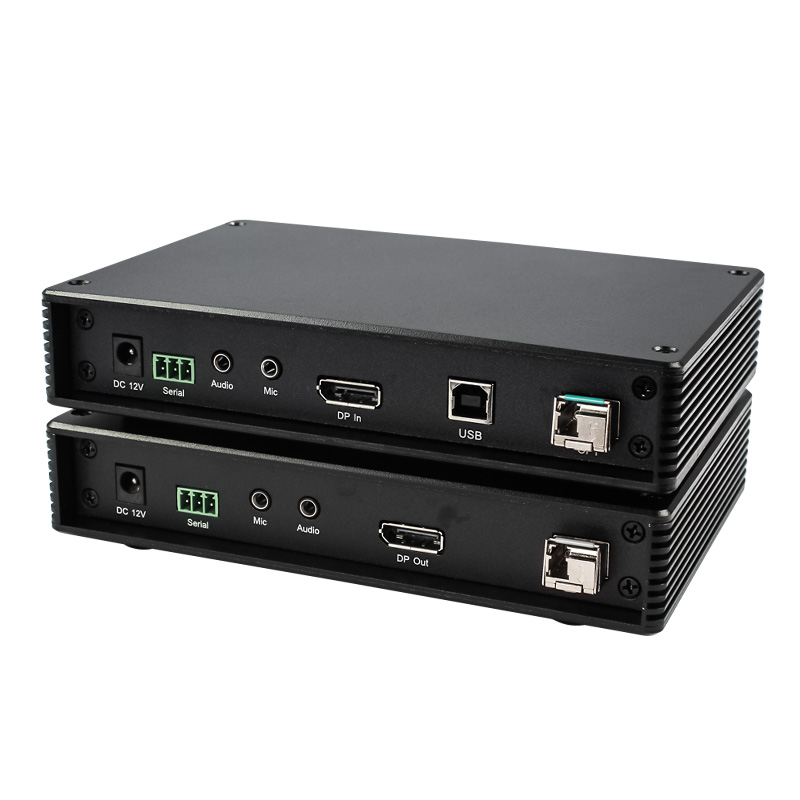

  •   DisplayPort 1.2 fiber optic extender (transmitter and receiver kit) that provides uncompressed DisplayPort signal extension to a range of 100 m over a single SC multimode fiber.

    This extender supports true 4K UHD resolution (3840x2160 or 4096x2160 at 60Hz) and up to 21.6 Gbps video bandwidth.
    Its compact design makes it ideal for adapting to various installation environments or live events.

    Compatible withDisplayPort 1.2 standards.
    Up to 200m (655 ft.) over one SC multimode fiber (OM3).
    Uncompressed video up to 21.6Gbps.
    Support formats up to 4K@60Hz 10-bit 4:4:4.
    Compatible with DPCD(DisplayPort Configuration Data).
    Compatible with HDCP 2.2.
    Compatible with EDID standards for carrying HDR signals.
    Compact design.
    Status LED for easy troubleshooting.
    Plug-and-play operation (no software required).
    Supports up to 8 embedded audio channels.
    No additional latency.
    External 5V DC power adaptors provided.





      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
