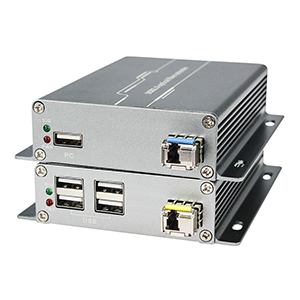

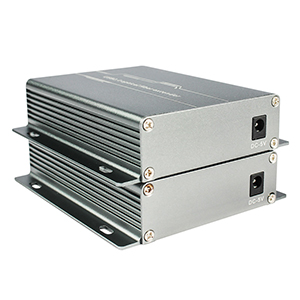

4 usb2.0 port Fiber Optic Extender ,sm single or twin fiber ,LC,5KG

4 usb2.0 port Fiber Optic Extender ,sm single or twin fiber ,LC,5KG

No new driver installation is required.
True plug-and-play capabilities
Ideal for a wide range of USB devices.
Locking USB and power ports secure connection
longer distances can be realized with some hosts and drivers

description

4 usb2.0 port Fiber Optic Extender ,sm single or twin fiber ,LC,5KG

It enables the transmission of a Hi-Speed USB2.0 or USB1.1 over 1 fiber optic cable with 1 singlemode fiber up to 5km. Supports the following PC systems Windows, Mac OS and Linux

No new driver installation is required.
True plug-and-play capabilities.
Ideal for a wide range of USB devices.

This USB Extender works with all USB device types: Control, Interrupt, Bulk and Isochronous at up to 480 Mbps. It is ideal for a variety of USB devices such as printers, scanners, hard drives, audio devices, touchscreens and webcams.

This USB Extender extends these devices up to 275 m with 62.5-μ multimode fiber (OM1), up to 300 m with 50-μ multimode fiber (OM2+), and an enormous 5 km with single-mode cables

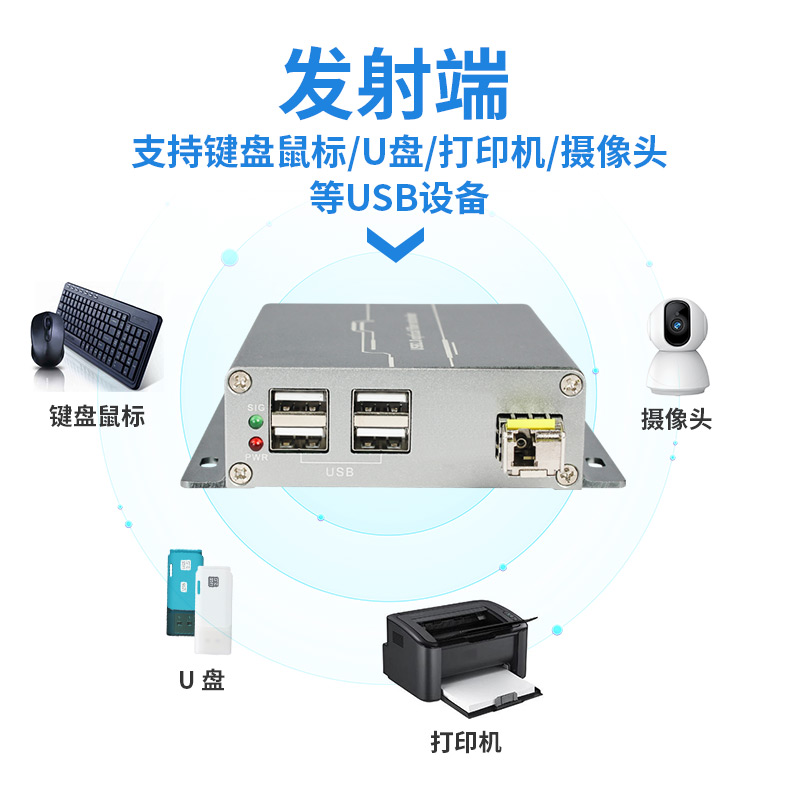

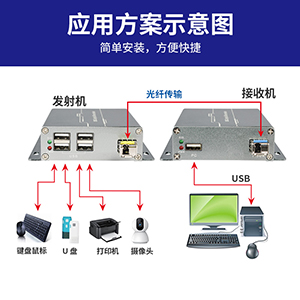

The USB Extender over UTP is ideal for a variety of USB devices such as printers, scanners, hard drives, audio devices, touchscreens, webcams and more. You can use it for any or all of the following applications:
Industrial control
KVM extension
Digital signage
USB connections from remote desktops
Security: web camera, access control
Medical device connectivity
USB web device sharing: Print, scan, store

.

SPECIFICATIONS:

OperatingTemperatureRange	-5 to +35℃(+23 to +95℉)
OperatingHumidityRange	5 to 90%RH (No Condensation)
Video Input(Transmitter)	1xHDMI Type A, 19-pin, female
Video Output(Receiver)	1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)	1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required^①	SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format	4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format	Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input	HDCP 2.2, HDCP 1.4
HDCP Output	HDCP 1.4
Power consumption	Transmitter: 3watts(Maximum) Receive: 3watts(Maximum)
Dimension (L×W×H)	Transmitter: 9610025mm Receive: 9610025mm
Net Weight	475g(Pair)
