USB3.0/USB2.0 aoc fiber extend cable

  • No new driver installation is required.

  • True plug-and-play capabilities

  • Ideal for a wide range of USB devices.

  • Locking USB and power ports secure connection

  • longer distances can be realized with some hosts and drivers

  • description

  •      USB3.0/USB2.0 aoc fiber extend cable

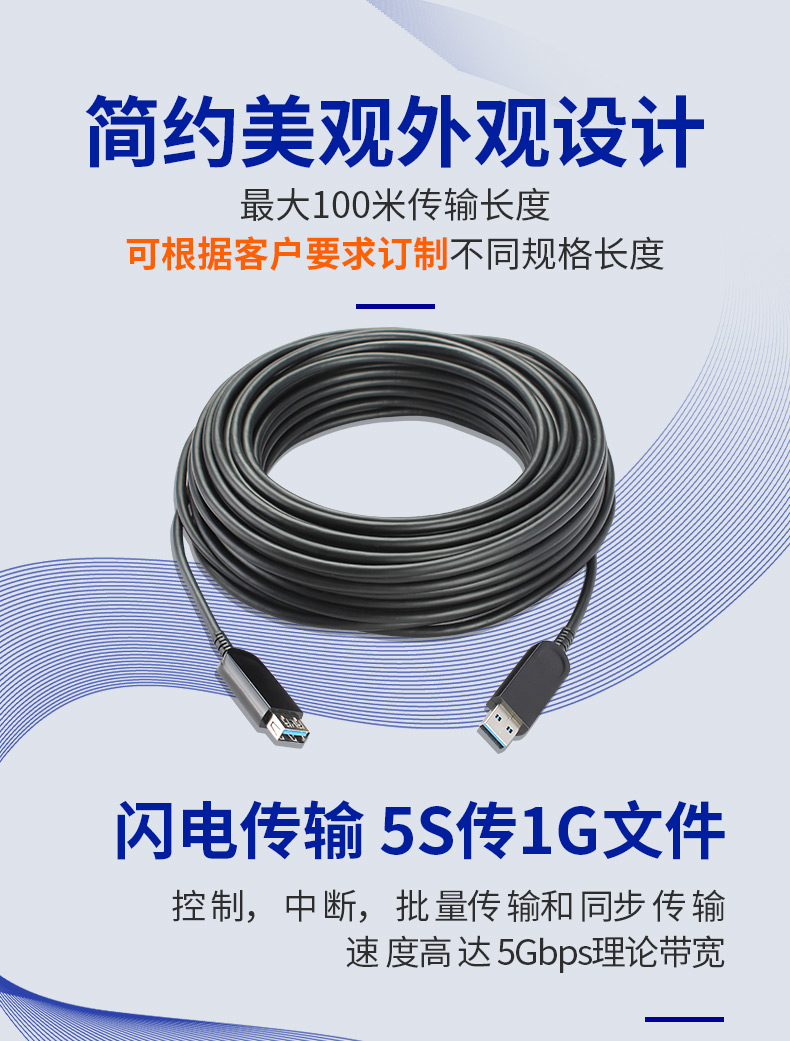

        USB 3.0 /USB2.0 Active Optical Extension Cable, 50m
    Supports transfer rates up to 5 Gbps
    Low sensitivity to RFI/EMI interference
    Plug & Play installation

    The USB 3.0/USB2.0 Fiber Optic Extension Cable supports much longer distances than copper cables, while maintaining SuperSpeed transfer rates up to 5Gbit/s. The smaller diameter and flexibility of the cable allows it to be easily installed through ducts, conduits, and ducts, while ensuring low sensitivity to RFI/EMI interference.
    For maximum convenience, the USB 3.0 /USB2.0 Fiber Optic Extension Cable comes with a USB Micro-B cable and external power supply, which can be connected for use with power-hungry USB devices.

    Technical specifications
    Connector A: USB type A male
    Connector B: USB type A female
    Power supply: USB Micro-B female
    Housing material: Plastic
    Connector coating: C2680
    Pin material: C2680+Nickel+Gold
    Pin coating: Gold plated
    Dimensions (approx.) WxDxH:
    USB A female: 20x78x12mm (0.79x3.07x0.47in)
    USB A male: 16x65x8mm (0.63x2.56x0.31in)

    Cable details
    Length: 100m
    Standard: USB 3.1 Gen 1 / 3.0
    Color: Orange
    Type: Round
    Jacket diameter: 3mm (0.12in)
    Jacket Material: LSZH
    Conductor material: -
    Conductor cross section: -
    Shielding: Tinned aluminum foil

    Supported bandwidth: 5 Gbits/s
    Nominal attenuation: 2.5dBm/km
    Minimum bending radius: 37.5mm (1.48in)
    Maximum tensile load: 0.7GN/m2.
    Operating temperature: 0°C - 50°C (32°F - 122°F)
    Storage temperature: -20°C - 70°C (-4°F - 158°F)
    Transmission media: 50/125 multimode fiber optic
    Transmission technology: 850nm optical fiber








      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
