Armored HDMI 2.0 AOC, Hybrid 18Gbps 4K@60Hz Active Optical Cable - Outdoor Rated

Armored HDMI2.0 4K@60Hz Fiber Optic AOC cable

18G ,HDR, 4:4:4, No power required
HDMI 2.0 Active Optical Cable (AOC)
Support HDMI 2.0 / HDMI 4K (4Kx2K @ 60HZ)
Support Deep color, 3D
Support HDMI ARC port, HDCP 2.2

description

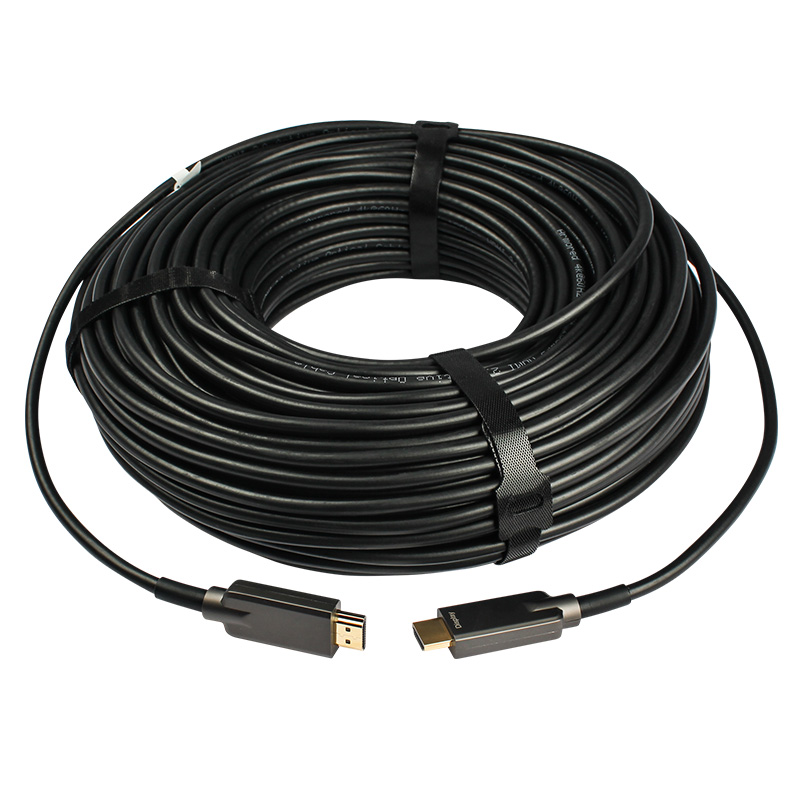

Armored HDMI 2.0 AOC, Hybrid 18Gbps 4K@60Hz Active Optical Cable - Outdoor Rated

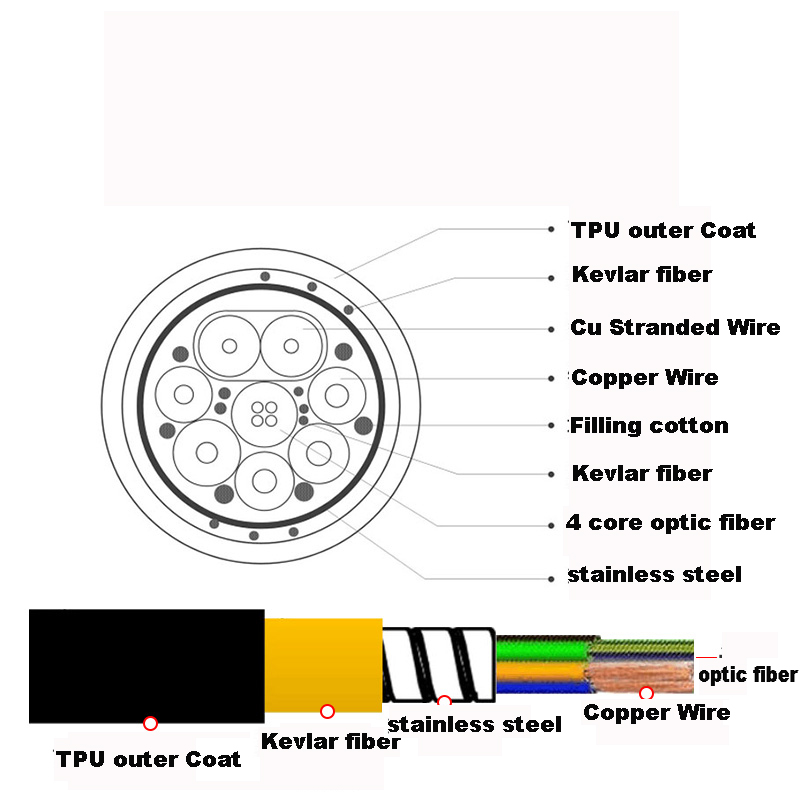

Our armored HDMI active hybrid cables are the most competitive long-haul HDMI interconnect solutions on the market.The armored HDMI 2.0 active optical cable is designed for stable use in challenging environments. The stainless steel tubing with Kevlar elements provides 500Kg of compressive armor and strength to withstand the most rugged applications. It supports HDMI data rates of 6Gbps per channel and a total of 18Gbps in a lightweight, flexible and ultra-compact long-term bend radius (45mm) hybrid cable. Embedded with our advanced optical engine. This HDMI hybrid cable provides full HDMI signal integrity and supports a maximum length of 100M / 328FT, plug and play. The industrial grade TPU jacket has an operating temperature of -40°C ~ 80°C. Ideal for displays in surgical, military, naval, temporary staging or anywhere where extended HDMI cables exist in challenging environments.
No external power supply is required.

Key Features
-Max 100m (customizable length)
-Low power consumption: 250mW (maximum)

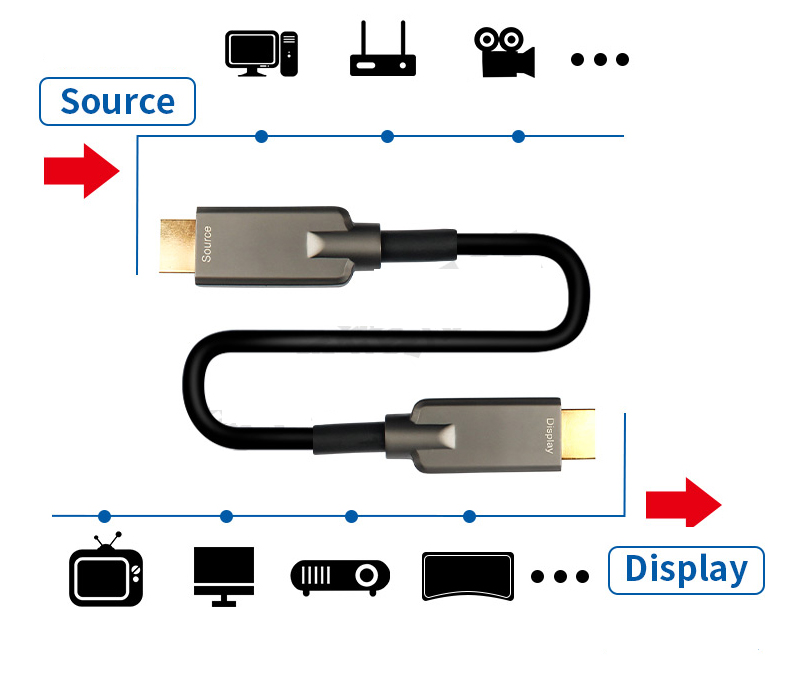

- Plug-and-play
-Compatible with HDMI 2.0 standard
-Supports ARC of up to 100M / 328FT
-Support HDCP1.4 / 2.2
-Self-detection function of EDID information
-No signal loss -Provides clear digital images instantly
-Supports up to 1080P and 4K2K (60P) computer resolutions
-Fiber optic and copper hybrid fiber optic cable
- Crush resistance: 100kg long term; 200k short term

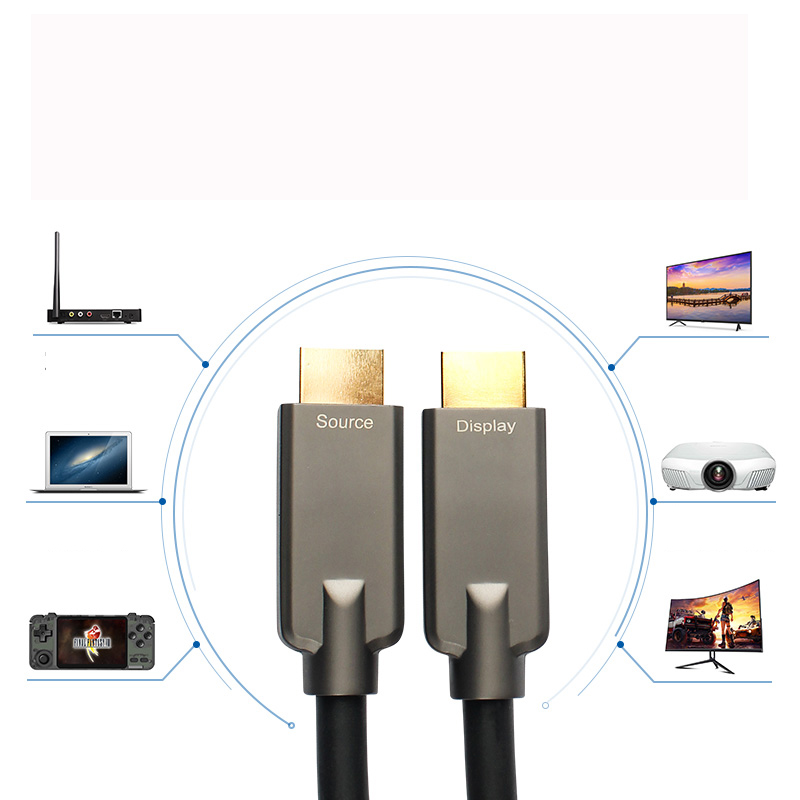

Applications
Permanent and Temporary Staging
Medical Equipment Displays
Shipboard Displays
Aerospace Displays
Digital or LED Signage
TV Broadcast Station
Security systems

SPECIFICATIONS:

OperatingTemperatureRange	-5 to +35℃(+23 to +95℉)
OperatingHumidityRange	5 to 90%RH (No Condensation)
Video Input(Transmitter)	1xHDMI Type A, 19-pin, female
Video Output(Receiver)	1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)	1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required^①	SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format	4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format	Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input	HDCP 2.2, HDCP 1.4
HDCP Output	HDCP 1.4
Power consumption	Transmitter: 3watts(Maximum) Receive: 3watts(Maximum)
Dimension (L×W×H)	Transmitter: 9610025mm Receive: 9610025mm
Net Weight	475g(Pair)
