4k@60hz HDMI 2.0 Extender via SM Fiber Optics LC 10Km

4k@60hz HDMI 2.0 Extender via SM Fiber Optics LC 10Km

RGB, YCbCr 4:4:4, YCbCr 4:2:2 and YCbCr 4:2:0
Bandwidth up to 600 MHz (18 Gbps)
Supports HDCP 2.2
Up to 48-bit color depth
via MM Fiber Optics ,mpo ,300m

description

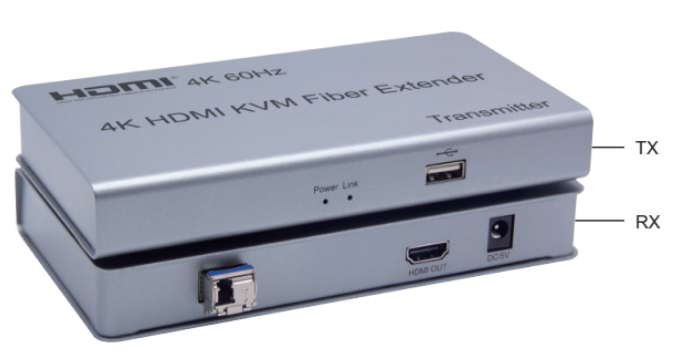

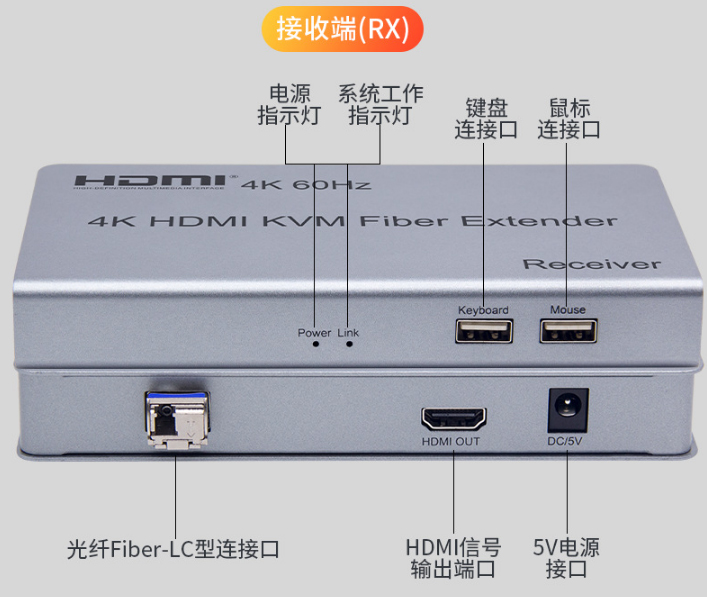

4k@60hz HDMI 2.0 Extender via SM Fiber Optics LC 10Km

4K 2.0 10km HDMI Extender over Fiber with Fiber Optic LC Port and KVM USB Keyboard and Mouse Video Support

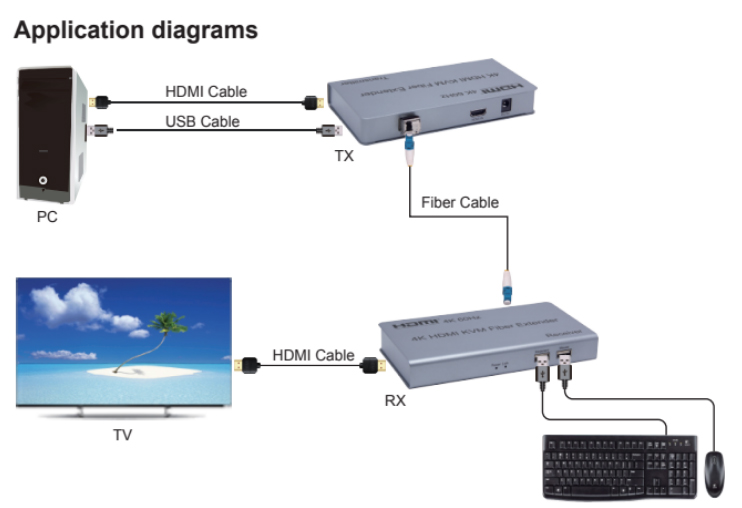

The HDMI Extender over Fiber is a device that transmits high-definition audio and video signals over a single-mode fiber optic cable. It uses a single fiber optic cable to transmit the high resolution signal from an HD display up to 10km away from the HDMI or DVD source (or only 300m if it has HDCP and EDID). It is also easy to transmit HDMI audio and video signals via point-to-point mode.

Features
* Support HDMI 4K@60Hz/HDCP2.2;
* Support point-to-point mode;
* Support signal mode and LC single core fiber transmission;
* Pure hardware design, plug and play, do not need to install additional software..

SPECIFICATIONS:

OperatingTemperatureRange	-5 to +35℃(+23 to +95℉)
OperatingHumidityRange	5 to 90%RH (No Condensation)
Video Input(Transmitter)	1xHDMI Type A, 19-pin, female
Video Output(Receiver)	1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)	1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required^①	SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format	4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format	Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input	HDCP 2.2, HDCP 1.4
HDCP Output	HDCP 1.4
Power consumption	Transmitter: 3watts(Maximum) Receive: 3watts(Maximum)
Dimension (L×W×H)	Transmitter: 9610025mm Receive: 9610025mm
Net Weight	475g(Pair)
