4K@60Hz HDMI2.0 Fiber Extender with IR / rs232 ,18G Uncompressed, LC ,MM fiber:300M, SM fiber:1000M

4K@60Hz HDMI2.0 Fiber Extender with IR

Uncompressed, LC ,MM fiber:300M, SM fiber:1000M
High data rate: 18 Gbit/s (600MHz clocking)
Supports HDCP 2.2
Compatible with multi-mode fiber optic cables
1000m at 4K @60Hz - over SM optical fiber

description

4K@60Hz HDMI2.0 Fiber Extender with IR / rs232 ,18G Uncompressed, LC ,MM fiber:300M, SM fiber:1000M

300m at 4K @60Hz - over MM optical fiber
1000m at 4K @60Hz - over SM optical fiber
This HDMI2.0 Fiber Optic Extender Set extends 4K HDMI with ARC up to 300m-1000m over one mm or sm fiber optic cable and supports HDMI2.0 , HDCP2.2, and resolutions up to 4Kx2K @60Hz (4:4:4) with HDR. This HDMI2.0 fiber optic extension consists of an HDMI2.0 fiber optic transmitter (UH-300X-LWL1T) and an HDMI2.0 fiber optic receiver

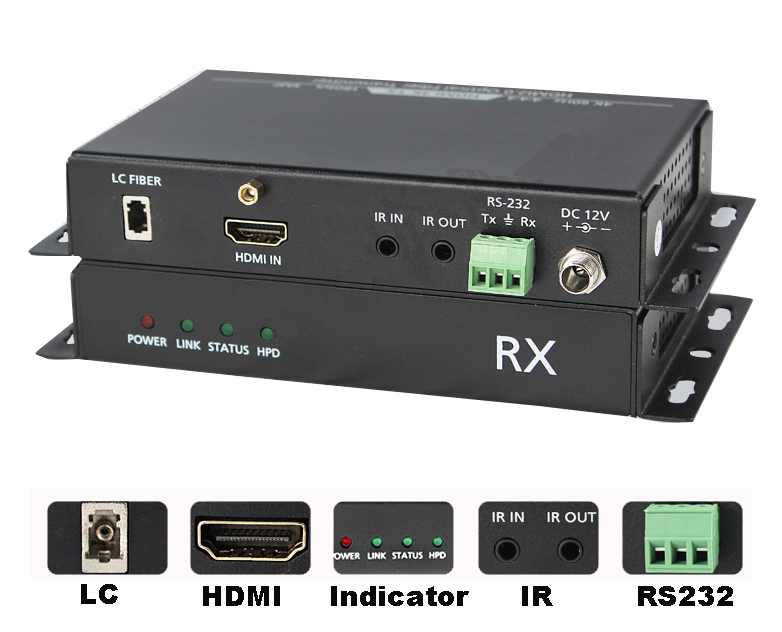

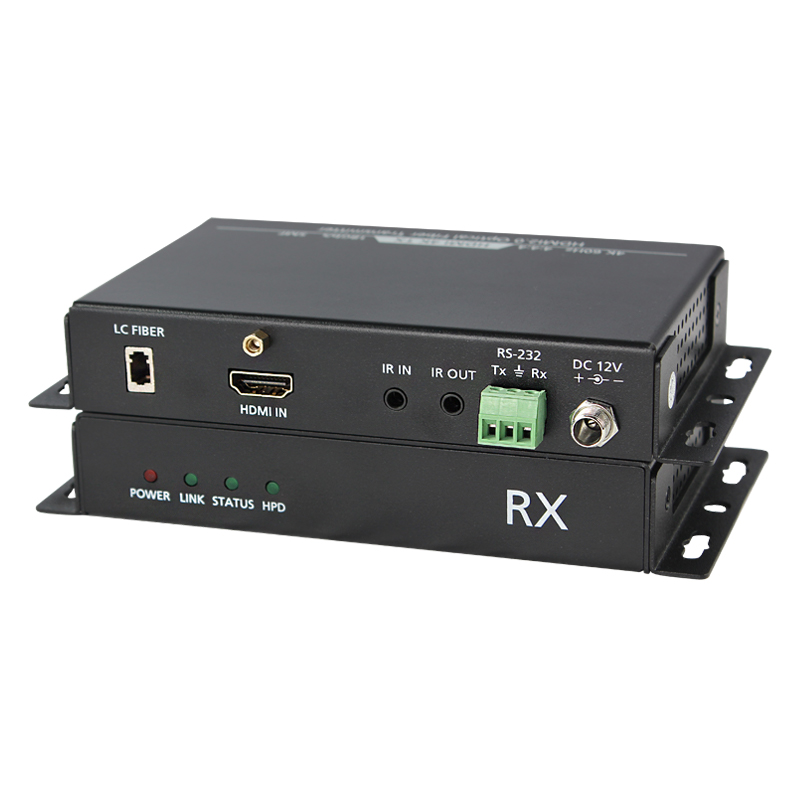

Both the transmitter and receiver of this HDMI2.0 fiber optic extension have IR In and IR Out, as well as RS232 connectors.

HDMI 2.0 Fiber Optic Extender Set with IR and RS232 Pass Through
The HDMI2.0 Fiber Optic Extension UH-300X-LWL1 supports, besides the transmission of HDMI signals with HDR up to 4Kx2K @60Hz (4:4:4), the pass through of IR and RS232 control signals (IR/ RS232 Pass Through) over distances up to 1000m over sm optical fiber, so that you can control and operate your devices even from a remote point.

Features of 4K HDMI2.0 Fiber Optic Extender Set

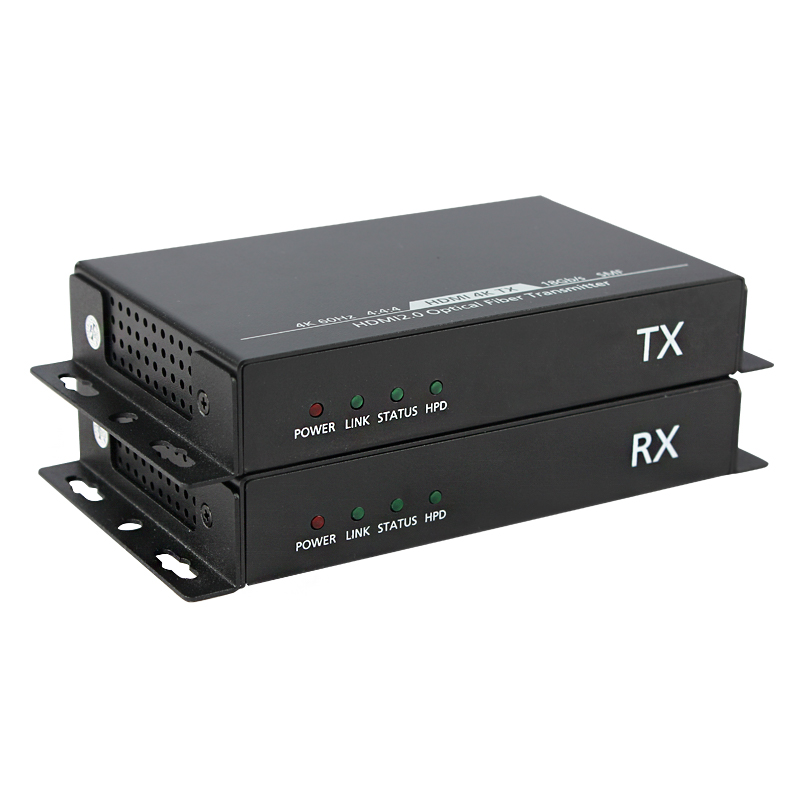

4K HDMI2.0 fiber optic extender set, consisting of 4K HDMI2.0 fiber optic transmitter and 4K HDMI2.0 fiber optic receiver
Supports 4K/60Hz - 4Kx2K @60Hz 4:4:4 HDR
Supports HDCP2.2 - backward compatible with older HDCP versions
High data rate: 18 Gbit/s (600MHz clocking)
Compatible with multi-mode fiber optic cables 1000m transmission range at 4Kx2K @60Hz 4:4:4 - over one sm optical fiber

SPECIFICATIONS:

OperatingTemperatureRange	-5 to +35℃(+23 to +95℉)
OperatingHumidityRange	5 to 90%RH (No Condensation)
Video Input(Transmitter)	1xHDMI Type A, 19-pin, female
Video Output(Receiver)	1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)	1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required^①	SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format	4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format	Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input	HDCP 2.2, HDCP 1.4
HDCP Output	HDCP 1.4
Power consumption	Transmitter: 3watts(Maximum) Receive: 3watts(Maximum)
Dimension (L×W×H)	Transmitter: 9610025mm Receive: 9610025mm
Net Weight	475g(Pair)
