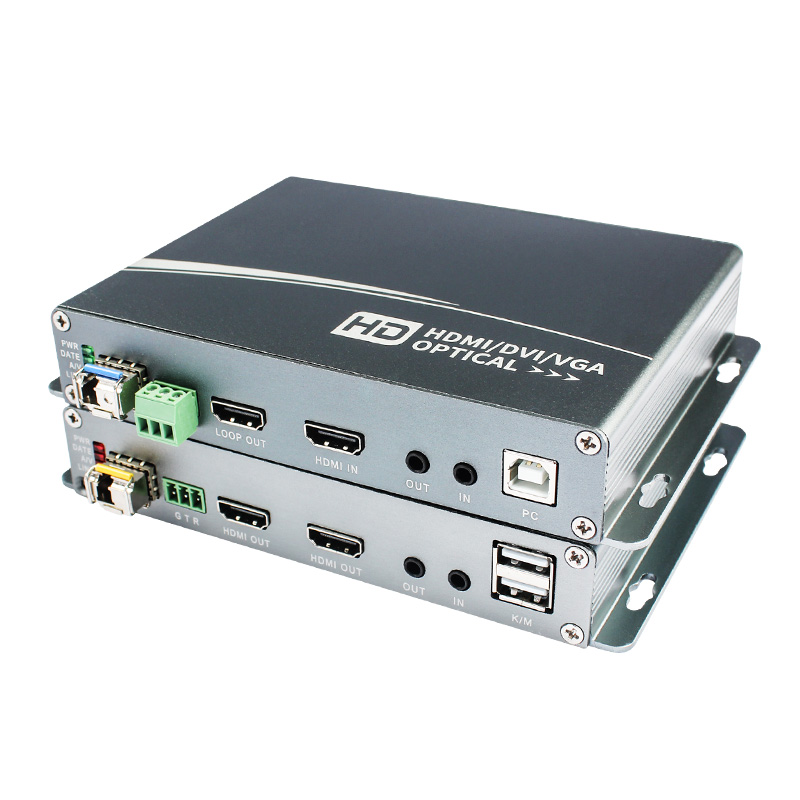

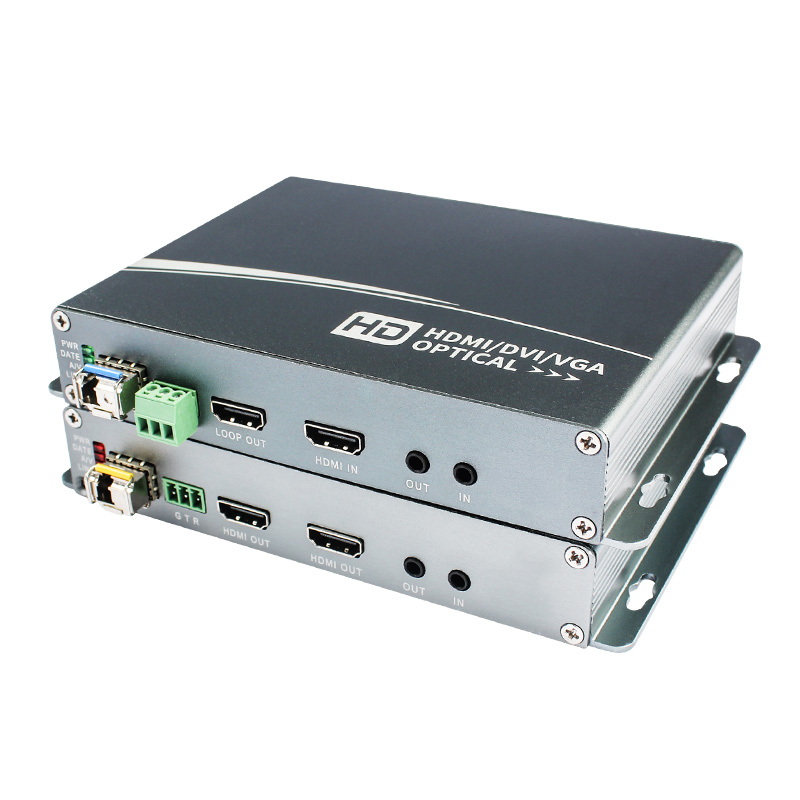

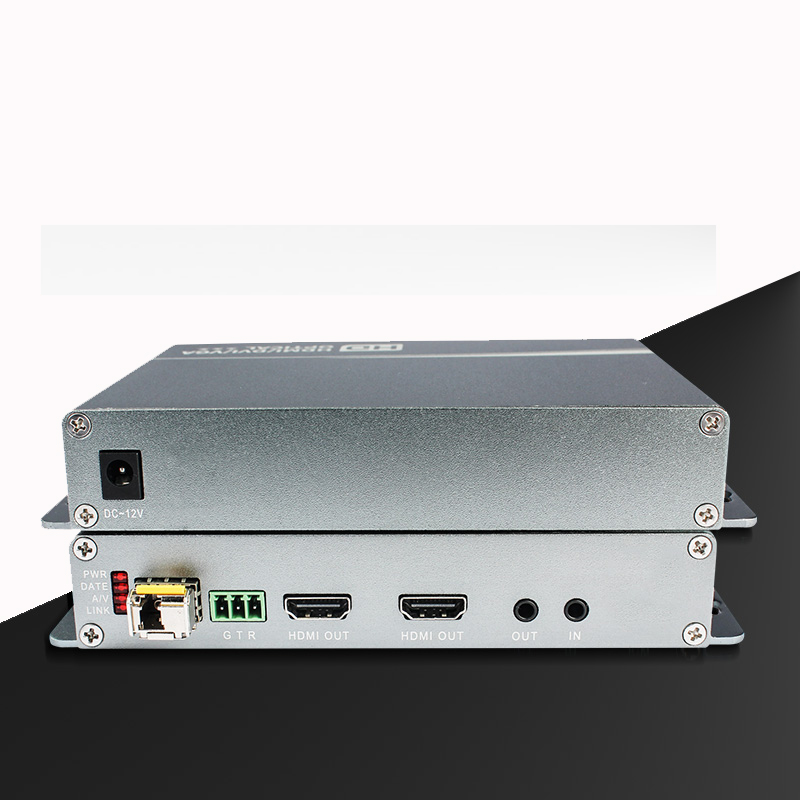

HDMI 4K@30Hz Fiber Optic Extender + Loop Out +bidirectio audio + rs232 + KVM

HDMI 4K@30Hz Fiber Optic Extender

Loop Out +bidirectio audio + rs232 + KVM
Uncompressed HDMI1.4 video transmission up to 4K@30Hz
Supports HDCP 2.2
Fiber-LC type port of the receiver
Use a fiber optic cable of up to 10 km

description

HDMI 4K@30Hz Fiber Optic Extender + Loop Out +bidirectio audio + rs232 + KVM

It is a device for transmitting HD audio and video hDMI 1.4 signals via Single
mode fiber optic cable. It transmits HD displays at high resolution up to 10km
(or only 300m if with HDCP and EDID) away from HDMI or DVD sources
using a single fiber optic cable. Also, it is convenient to transmit HDMI audio
Point-to-point mode video signals.

Description
HDMI input resolution: 4k @ 30Hz / 1080p / 720p / 480p
HDMI output resolution: 4k @ 30Hz / 1080p / 720p / 480p
Hdmi Loop Out
bidirectio audio
KVM
rs232 /RS485
Power consumption: HDMI transmitter: 3W HDMI receiver: 3W
Power adapter specifications: Input AC (50HZ, 60HZ) 100V-240V Output 5VDC / 1A
Support HDMI 4K@60Hz/HDCP2.2;
Support point-to-point mode.
support signal mode and LC single-core fiber optic transmission.
Pure hardware design, plug-and-play, no need to install other software.

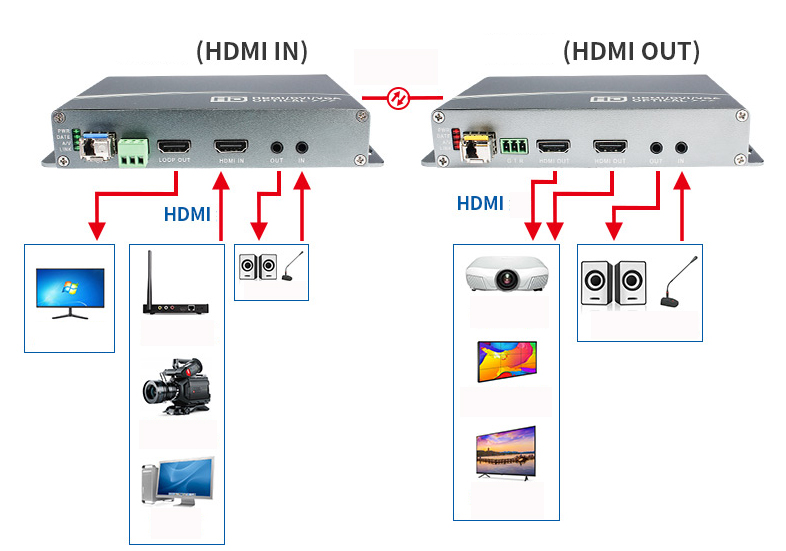

Connection and Operation
1) Connect the HDMI signal to the HDMI transmitter with HDMI cable
2) Connect the HDMI receiver to the HDTV display with an HDMI cable
3) Use a fiber optic cable of up to 10 km to connect the Fiber-LC type port of the Transmitter, and
Fiber-LC type port of the receiver (if with HDCP and EDID, send only 300 meters)
4) Connect two 5V power supplies to the transmitter and receiver, power
device and LEDs illuminate. When the link indicator lights up, the device

Uncompressed HDMI1.4 video transmission up to 4K@30Hz
Supports HDCP 2.2
Supports HDMI loop out for local display or Simultaneous transmission of dual video streams
Supports transmission of 4K up to 30Km with single-mode
Supports USB 2.0 pass through up to 480Mbps data rate
Supports multiple control signal, such as bi-directional IR, RS232
Audio out supports audio pass through or audio de-embedding .

SPECIFICATIONS:

OperatingTemperatureRange	-5 to +35℃(+23 to +95℉)
OperatingHumidityRange	5 to 90%RH (No Condensation)
Video Input(Transmitter)	1xHDMI Type A, 19-pin, female
Video Output(Receiver)	1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)	1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required^①	SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format	4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format	Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input	HDCP 2.2, HDCP 1.4
HDCP Output	HDCP 1.4
Power consumption	Transmitter: 3watts(Maximum) Receive: 3watts(Maximum)
Dimension (L×W×H)	Transmitter: 9610025mm Receive: 9610025mm
Net Weight	475g(Pair)
