8×1 HDMI 4K@60Hz Switch l

  • 8 HDMI signal sources to 1 HDMI display

  • supports HDCP2.2 HDMI input and output signals

  • comprehensive EDID management - Multiple built-in EDID settings

  • Switching memory function&2 switching methods

  •   HDMI  extension for home theaters

  • description

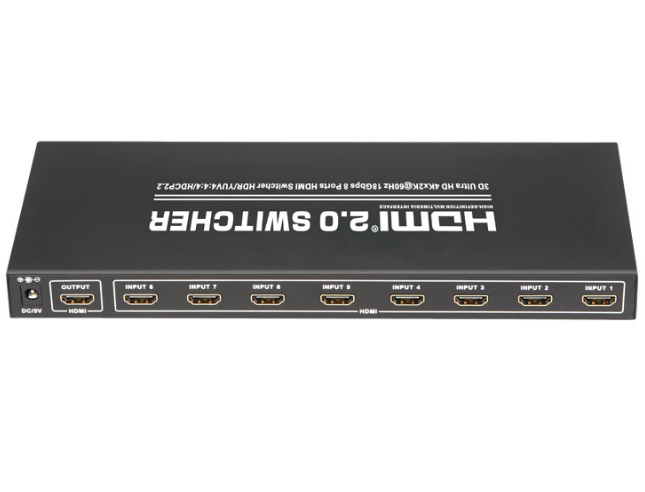

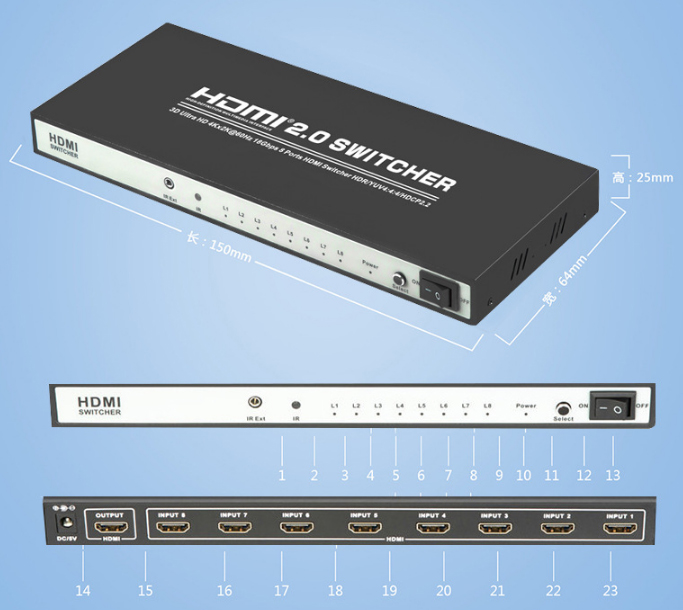

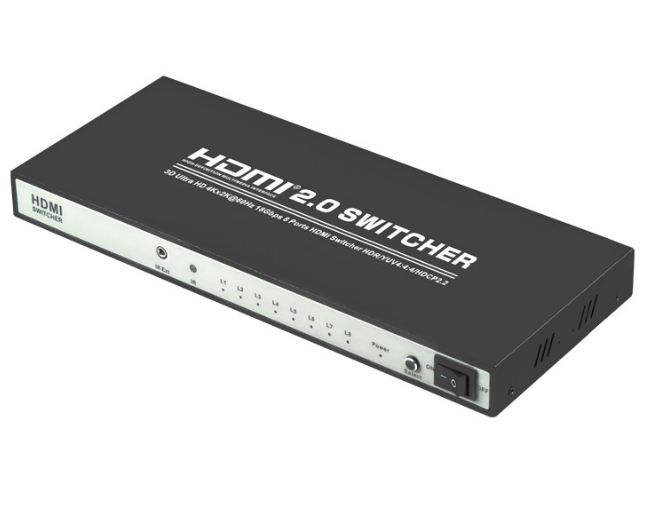

  •  8×1 HDMI 4K@60Hz Switch

      8 in 1 out with with hassle-free auto switching
    This 8 port HDMI switcher is the perfect solution for sharing 1 HDMI screen or projector with 8 HDMI source devices. It ensures effortless operation with automatic switching that detects and selects the last connected device. The switch also supports manual operation, including IR remote control and front panel push buttons.

    Crystal clear video&Smart EDID management
    Can output vivid picture quality with support for up to 4K@60Hz 4:4:4. It is HDCP 2.2 compliant. With EDID management, it automatically detects and analyzes the EDID of all connected HDMI displays. Then the HDMI source player outputs the best resolution to ensure all HDMI displays can show images.

    Hot plug detection&19 inch rack mountable
    This HDMI switch has hot plug detection. You can connect or disconnect devices to the HDMI switch at any time without turning off devices.






      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
