8x1 HDMI1.4 4K30Hz switcher

  • 8 HDMI signal sources to 1 HDMI display

  • supports HDCP2.2 HDMI input and output signals

  • comprehensive EDID management - Multiple built-in EDID settings

  • Switching memory function&2 switching methods

  •   HDMI  extension for home theaters

  • description

  •   8x1 HDMI1.4 4K30Hz switcher

  •
        This product is 8-in/1-out switcher which supports switching 8 channels of 4K Ultra HD signal to 1 channel of 4K Ultra HD display. The highest resolution supported by this product is 4K@30Hz. It supports panel and infrared remote control, and also supports RS232 serial port and network port terminal control command to control the switching of the switcher. Support automatic input detection function, when there is a new input device access automatically jump to the port of the new access device to go. Support EDID virtual display device function, so that the input side of the connected computer in the process of switching ports can also maintain the user's computer desktop window settings do not change.

    Product features

    support input port virtual display device, to avoid switching channel process host display settings change
    support hot-swappable, all devices connected to the switcher can be increased or decreased at any time without turning off the power of the device
    support automatic tour scan switching each channel, switching interval time can be set

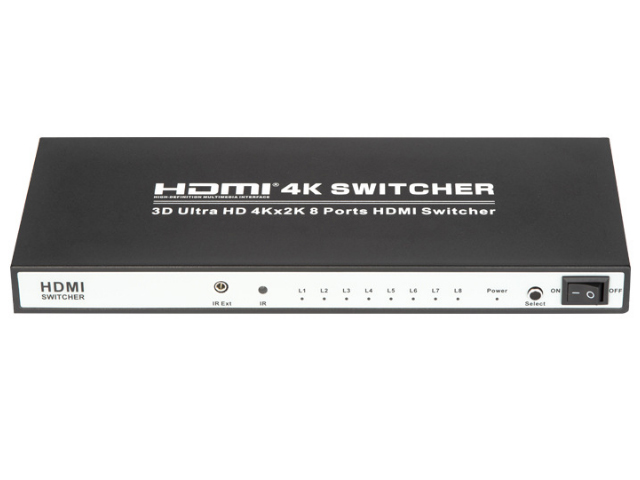

    support infrared remote control, panel keys
    support 3840*2160@30Hz and below resolution
    support port input auto-detection function, automatically switch the channel to the newly entered device when there is a new device access









    •


      SPECIFICATIONS:

      OperatingTemperatureRange

      -5 to +35℃(+23 to +95℉)

      OperatingHumidityRange

      5 to 90%RH (No Condensation)

      Video Input(Transmitter)





      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .



      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight

      475g(Pair)

     .
