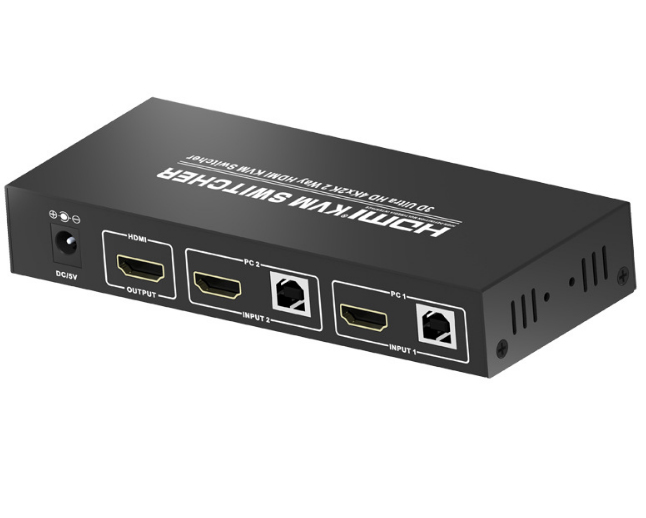

2x1 KVM switch with USB and HDMI
2HDMI signal sources to 1 HDMI display
-
supports HDCP2.2 HDMI input and output signals
-
comprehensive EDID management - Multiple built-in EDID settings
-
Switching memory function&2 switching methods
-
HDMI extension for home theaters
- description
2x1 KVM switch with USB and HDMI
KVM switch with HDMI video support

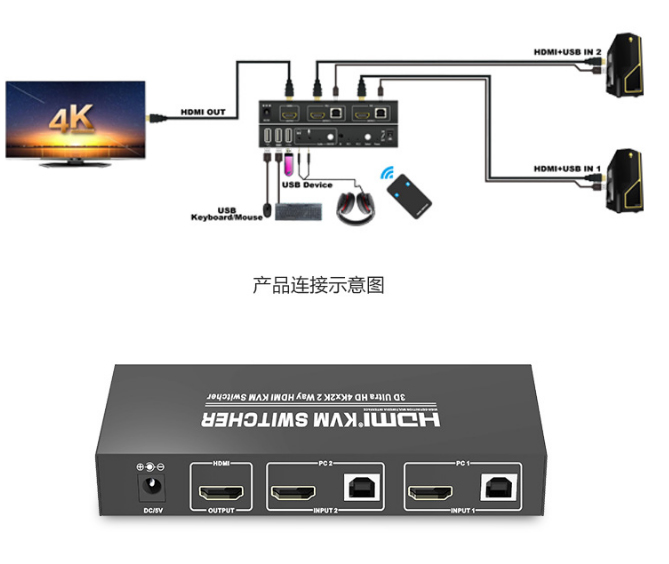

Allows you to share a high-definition television or monitor with a USB keyboard, mouse and microphone between 2 USB and HDMI-equipped computers
Provides an additional shared USB 2.0 port with surge verification and control

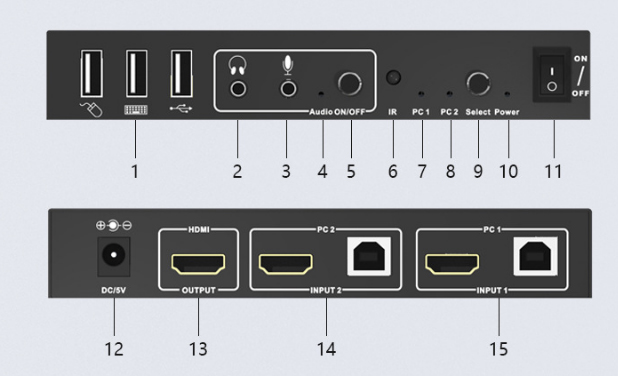

Switch between peripherals via key combination or on-device push button
Supports 4K@30Hz resolution and UXGA 1920×1200 PC resolution
Supports Dolby True HD and DTS HD Master Audio audio formats
Compatible with HDMI v1.4 & HDCP
KVM Switch with HDMI video support
Allows you to share a high-definition television or monitor with a USB keyboard, mouse and microphone between 2 USB and HDMI-equipped computers
Provides an additional shared USB 2.0 port with surge verification and control
Switch between peripherals via key combination or on-device push button
Supports 4K@30Hz resolution and UXGA 1920×1200 PC resolution
Supports Dolby True HD and DTS HD Master Audio audio formats
Compatible with HDMI v1.4 & HDCP
Video bandwidth: up to 3Gb/s
Metal housing for better shielding
Package Contents
2x1 KVM switch with USB and HDMI
Power supply
HDMI AM & USB2.0 AM to HDMI AM & USB2.0 BM cable
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
