2x1 4K@60HZ HDMI Switcher
Switching memory function&2 switching methods
-
supports HDCP2.2 HDMI input and output signals
-
comprehensive EDID management - Multiple built-in EDID settings
-
Switching memory function&2 switching methods
-

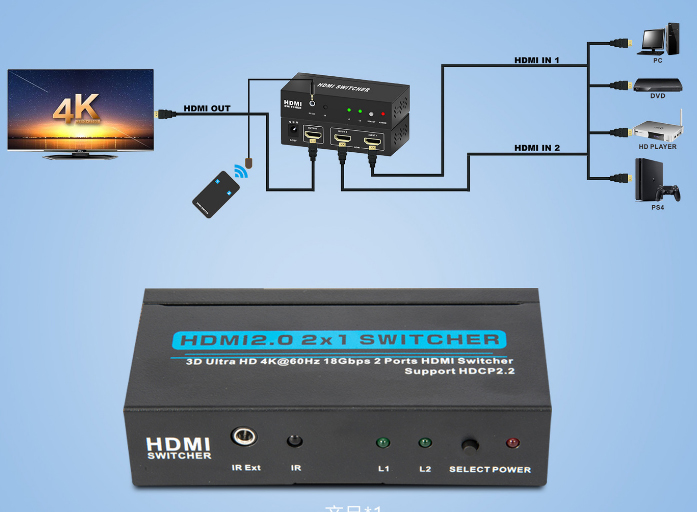

HDMI extension for home theaters
- description

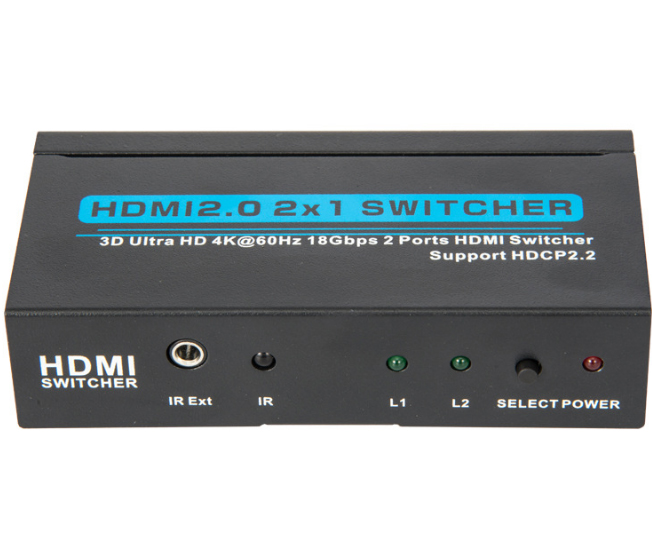

2x1 4K@60HZ HDMI Switcher
It is a high performance automatic switcher for 4K HDR, HDCP 2.2 and HDMI 2.0, it provides switching options by priority or last connection, it switches automatically according to the selected option with detection of active video signal.
Features:
Max. Data rate - 17.82 GBit/s
HDMI 2.0 and HDCP 2.2 compliant
Support for 4K @60 Hz UHD (4:4:4)
HDR support
HDMI signal switching - Supports HDR, HDCP 2.2, Deep Color, x.v.Color , lip sync, uncompressed audio channels, Dolby True-HD, 2K, 4K and 3D according to HDMI 2.0 specifications.
Multi-channel audio switching - Up to 32 channels of digital, uncompressed stereo signals to support studio-quality surround sound.
I-EDIDPro Kramer Intelligent EDID Processing - Intelligent EDID be.
Cost-effective maintenance - Status LED indicators for HDMI connections facilitate easy local troubleshooting.
Easy Installation - Compact fanless DigiTOOLS? enclosure is suitable for convenient mounting under tables or suspended ceiling, or for mounting 3 units side-by-side in a 1U rack with the recommended rack adapter.
Typical applications:
Presentation systems in conference and board rooms, auditoriums, hotels, churches, production studios, rental and stage equipment.
Standard small-medium meeting
Technical data:
Input:
2x HDMI
Output:
1x HDMI
Data ports:
2 Contact-Closure Switches: On a 3-pin terminal block connector for remote device operation
Video:
MAX. DATA RATE: 17.82 GBit/s (5.94 GBit/s per graphics channel)
MAX. RESOLUTION: 4K @60 Hz (4:4:4)
HDMI Support: Deep Color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0
CONFORMITY: HDR10, HDCP 2.2 (without HDCP 1.4)and HDMI 2.0
ENVIRONMENTAL CONDITIONS:
OPERATING TEMPERATURE: 0 to +40 °C
STORAGE TEMPERATURE: -40 to +70 °C
REL. AIR HUMIDITY: 10 to 90 %, non-condensing
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
