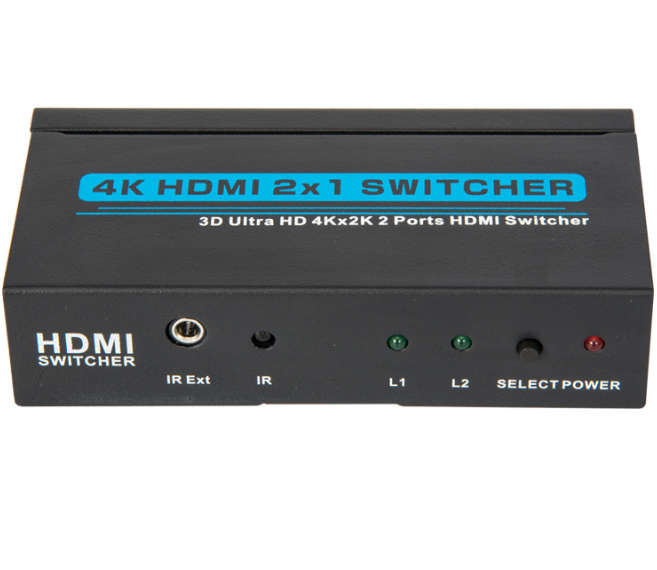

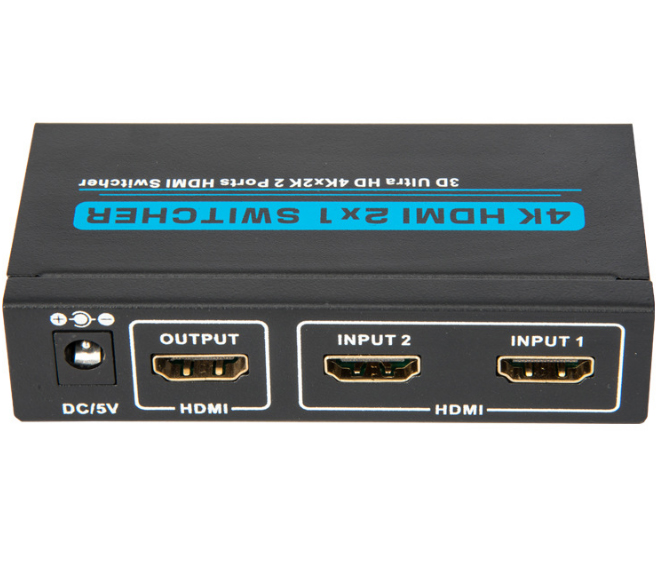

2x1 HDMI1.4 4K@30Hz Switch

  • 2 HDMI signal sources to 1 HDMI display

  • supports HDCP2.2 HDMI input and output signals

  • comprehensive EDID management - Multiple built-in EDID settings

  • Switching memory function&2 switching methods

  •   HDMI  extension for home theaters

  • description

  •   2x1 HDMI1.4 4K@30Hz Switch

       The 2x1 HDMI Switch is an HDMI combiner with Hot Plug support and supports HDMI 1.4 3D, 1080p@60Hz Full HD. The 2x1 HDMI combiner allows you to switch the signal from 2 inputs to 1 TV or monitor. The HDMI switch supports LPCM 7.1, Dolby and DTS audio codecs. The 2-input, 1-output HDMI switch has a small footprint. It comes with a remote control that allows you to select the signal source.

    Number of inputs2
    Number of outputs1
    Max. resolution4Kx2K@24Hz
    HDMI1.4 Version
    SupportsHDCP 2.2, 12-Bit Deep Color, LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio protocols
    Bandwidth10.2 Gbps
    Power supply5






      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

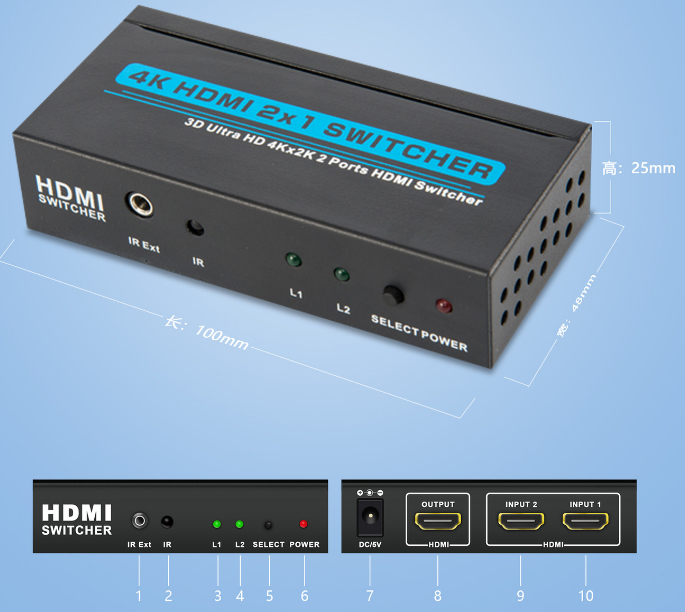

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
