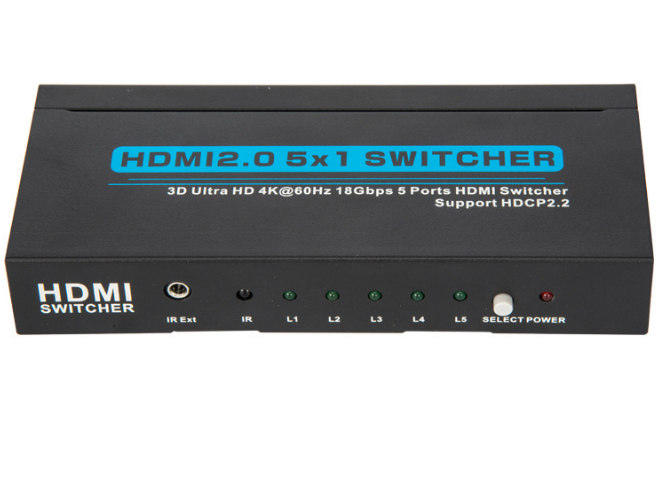

5×1 4K@60Hz HDMI Switch with IR Remote Control

  • 5 HDMI signal sources to 1 HDMI display

  • supports HDCP2.2 HDMI input and output signals

  • comprehensive EDID management - Multiple built-in EDID settings

  • Switching memory function&2 switching methods

  •   HDMI  extension for home theaters

  • description

  •  5×1 4K@60Hz HDMI Switch with IR Remote Control

     5×1 HDMI selector switch can connect 5 HDMI signal sources to 1 HDMI display, making all HDMI devices work at the same time. No software or drivers required. It can be switched with remote control and device buttons.

    This HDMI Switcher supports HDMI resolutions up to 4Kx2K @ 60Hz, backward compatible with 4Kx2K @ 30Hz, 1080p 3D @ 60Hz, 1080i, 720p; HDMI passthrough switch supports HDCP 2.2 and HDCP 1.4; Supports 6.0 Gbit/s TMDS / 600 MHz per channel. (To view 4K @ 60Hz resolution, you must use an HDMI 2.0 cable and connect a TV or display that provides the HDMI 2.0 connector. HDMI 1.4 only provides 4K @ 30Hz).

    Original audio is reproduced perfectly. Extracting audio from the HDMI source and outputting it through the optical and L / R interfaces (5.1-channel digital surround audio on the optical output and 2.0-channel analog stereo on the R / L output) support the ARC (Audio Return Channel) function. You can extract audio from your TV to your soundbar system, which supports DTS Digital, DTS-HD, Dolby True-HD, Dobly Digital and LPCM formats.

    This HDMI Switcher is suitable for most devices with standard HDMI interface and works with all built-in HDMI devices. Input source can be connected PS3, PS4, PS4 Pro, computer / laptop, notebook, Xbox 360, Xbox One, Nintendo Switch / Wii, Blu-ray player, DVD player, Roku stick / Fire stick, ROKU; The output can be connected to Apple TV, Samsung TV, Ultra 4K (UHD) TV, HDTV, monitor, display or large screen projector.





      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
