2x2 Port HMDI2.0 4K@60Hz Switch / Splitter
HDMI splitter/Switch supports HDMI video resolutions up to 4K @60Hz
-
supports HDCP2.2 HDMI input and output signals
-
comprehensive EDID management - Multiple built-in EDID settings
-
1x2 4K60 HDMI splitter /Switch
-
HDMI extension for home theaters
- description

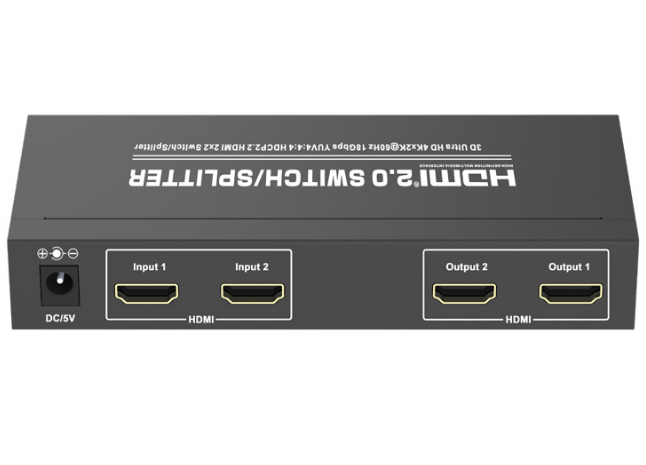

2x2 Port HMDI2.0 4K@60Hz Switch / Splitter
Save time and effort by automatically switching between HDMI audio/video sources with the HDMI automaticSwitch / Splitter . With this easy-to-use HDMI Switch / Splitter, ensure a seamless transition when switching between video and display sources thanks to EDID Copy video resolution maintenance.
Seamless signal selection
Ensure seamless transition when switching video sources by maintaining native resolution with support for 1080p through EDID Copy. Video connection emulation ensures that settings from connected computers are not disrupted when switching to a different video source.
Effortless control
Save time by connecting two HDMI video sources to two independent HDMI displays by manually connecting individual cables. Includes mounting hardware for clean, professional installation.
Versatile switching options
Enjoy operation without fuss thanks to four different switching modes:
Automatic port selection: Allows the last activated video source to be displayed automatically.
Port selection by priority: Prioritizes input number two higher than input number one. If the video source on input number two is activated, then that source will be displayed.

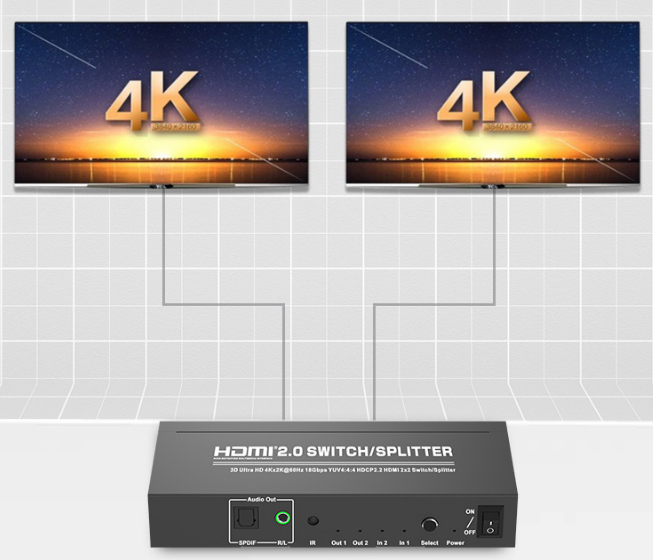

Matrix port selection: Independently switches two displays between two video sources.
Manual port selection: Allows manual selection of HDMI source using the user-friendly buttons on the front panel.
Applications
Switching between different video sources on digital signage displays in hospitals, shopping malls or schools
Connect and switch between two video sources and two displays in a test environment for troubleshooting computers
Automatically switch between Blu-ray player, satellite receiver or game console in a home theater environment
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
