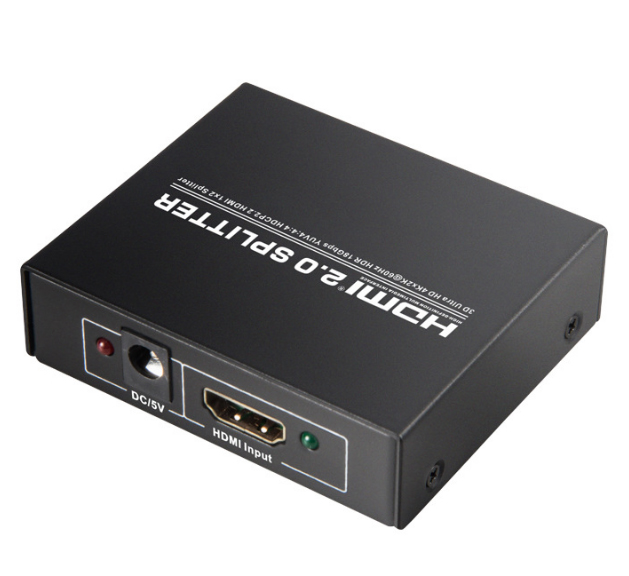

1x2 HDMI2.0 4Kx2K@60Hz Splitter Distributor

  • HDMI splitter supports HDMI video resolutions up to 4K @60Hz

  • supports HDCP2.2 HDMI input and output signals

  • comprehensive EDID management - Multiple built-in EDID settings

  • 1x2 4K60 HDMI splitter

  • Up to 200m HDMI1.4 extension for home theaters

  • description

  •   1x2 HDMI2.0 4Kx2K@60Hz Splitter Distributor

  • HDMI Splitter Distributor 1x2 - HDMI 2.0 - 4Kx2K, 1080P, 3D, HDR

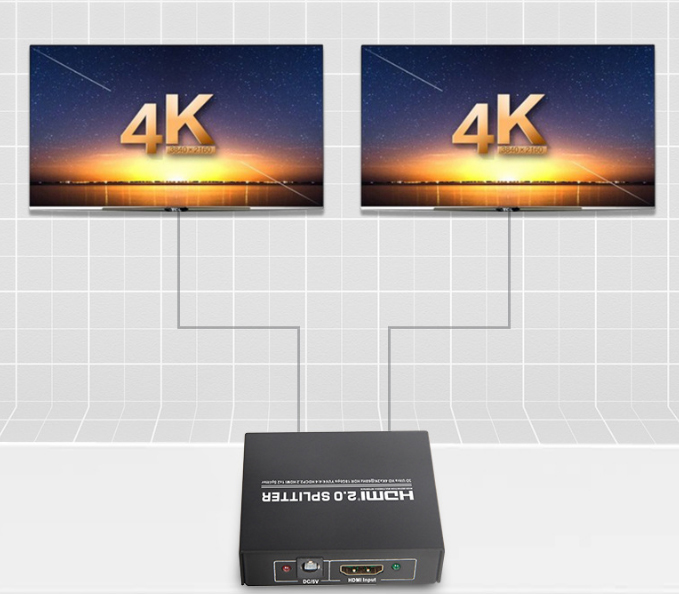

    This HDMI splitter 1x2 allows you to connect two screens to the same HDMI source, so you can see the same picture in two different rooms, for example. With 3D, HDR and resolution up to 4K.
    For two screens: the HDMI 2.0 splitter splits the signal of an HDMI device such as a game console or Blu-ray player to two HDMI-compatible screens and duplicates image and sound simultaneously. A practical solution for both home and office or educational use.

    4K, 3D and HDR compatible: Ultra HD 2160P 4Kx2K@60Hz, 3D and HDR - for a great movie or gaming experience.

    Input video signal: 0.5 ~ 1.0 volt pp
    DDC signal input: 5 volts pp (TTL)
    Max. 3860 x 2160 P 60 Hz
    Video output: HDMI 2.0 + HDCP2.2
    DTV / HDTV resolutions: 480p / 576i / 576p / 720p / 1080i / 1080p / 2160p
    HDMI version: HDMI 2.0
    Operating frequency: Up to 600 MHz
    Frequency bandwidth: 18 Gbit / s
    Deep Color color support: 30 bit, 36 bit, 48 bit
    Digital audio formats: DTS-HD / Dolby True-HD / LPCM 7.1 / DTS / Dolby-AC3 / DSD





      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
