HDMI Splitter 1×4 4K@30Hz HDMI Splitter

  • HDMI splitter/Switch supports HDMI video resolutions up to 4K @30Hz

  • supports HDCP2.2 HDMI input and output signals

  • comprehensive EDID management - Multiple built-in EDID settings

  • 1x2 4K30 HDMI splitter /Switch

  •   HDMI  extension for home theaters

  • description

  •   2 HDMI Splitter 1×4 4K@30Hz HDMI Splitter

  •  1 In 4 Out Supports HDR 3D HDCP 1.4 for HDTV/PC/STB/DVD Player/TV Box/PS3/4/Xbox/Switch/

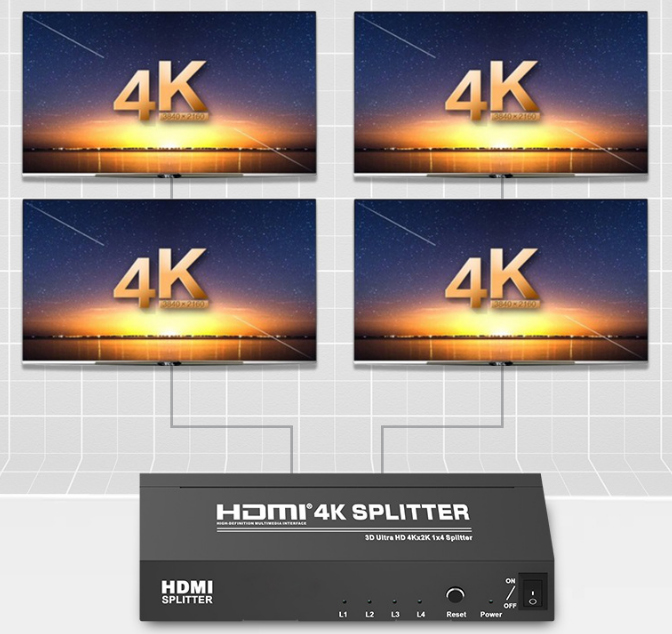

    Easily distribute signal from 1 HDMI device to 4 HDMI displays simultaneously. Supports resolutions up to 3840x2160 at 30Hz, 36 bit/pixel Deep Color, HDMI 1.4, HDCP 1.4 and 3D video. No lag or blur.
    EDID management automatically detects and analyzes the EDID of all connected HDMI displays. In EDID management, the HDMI source display outputs the lowest resolution to ensure that all HDMI displays are supported.

    HD audio formats supported: LPCM 7.1, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. It provides long distance HDMI signal transmission up to 20m.
    Ideal for home, business collaboration, classroom and sales displays. Works well with PS3/4, Xbox, Switch, Blu-ray players, set-top boxes, Apple TV, Fire TV Stick, etc. Elegant design helps you save space.





      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
