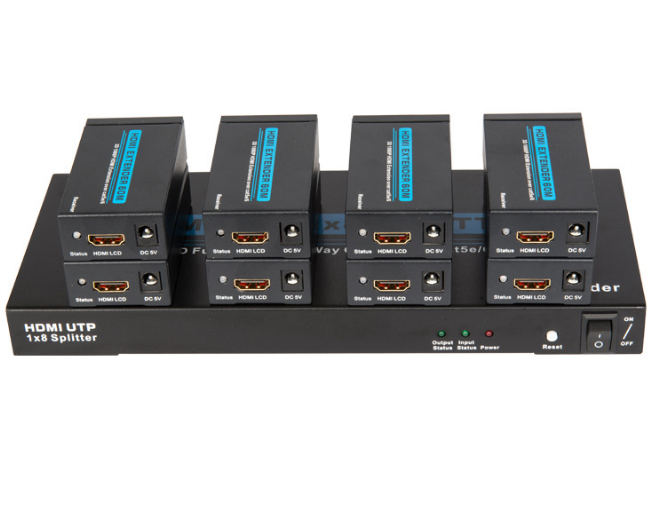

1x8 HDMI Splitter and Extender Kit

  • transmission length of up to 60m

  • supports HDCP2.2 HDMI input and output signals

  • comprehensive EDID management - Multiple built-in EDID settings

  • Switching memory function&2 switching methods

  •   HDMI  extension for home theaters

  • description

  •  1x8 HDMI Splitter and Extender Kit

  •  1 HDMI source to 8 HDMI displays over cat5/6/7 cable simultaneously
    Cat5/6/7 HDMI transmitter is equipped with 8 port Cat5/6/7 output
    IR remote control commands from the receiver end to transmit back to the transmitter side to control to the HDMI source remotely
    Compatible with Cat6/7 ethernet network cables.

    Durable and easy to set up and operate without any software installations. Ideal for businesses, churches, test bench facilities, data centers and help desks to duplicate HDMI signals at long range.

    It is an ideal solution to help you create a custom HDMI distribution and extension for many applications including digital signage and video conferencing.

    Distributes 1 HDMI signal to (8) RJ45 HDMI Receivers simultaneously
    Kit contains an 8-Port Splitter/Extender and (8) CAT5e/6 Extender/Receivers
    Output signals are synchronized
    Extends the signal via a single CAT5e/6 cable to hdmi receivers (CAT5e/6 cables sold separately)
    Supports Full HD 1080P Resolution up to 60M
    Supports High Definition Audio: Dolby TrueHD, DTS-HD Master Audio
    Supports 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth
    Supports 8bit per channel (24bit all channels) deep color
    Supports uncompressed 2 channel audio such as LPCM
    Supports compressed audio such as DTS Digital, Dolby Digital (Including DTS-HD and Dolby True HD)
    Supports 3D





      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

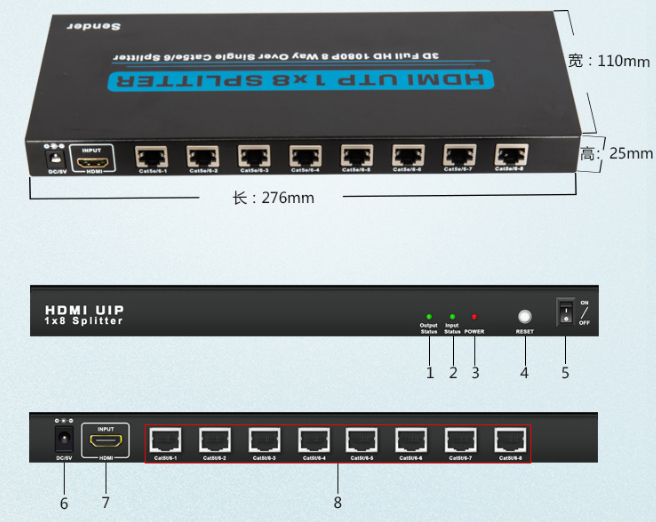

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
