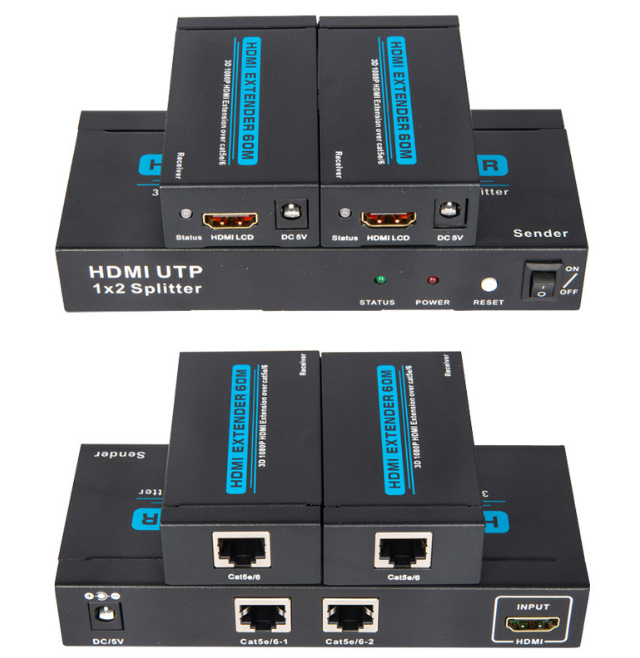

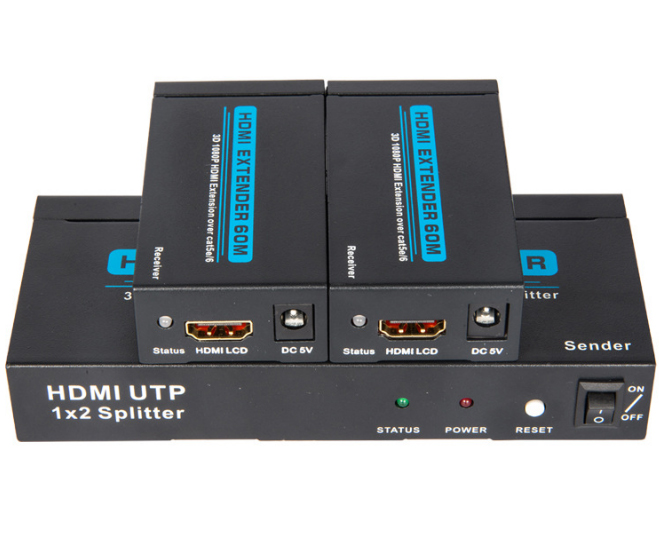

HDMI1.4 1x2 Extender/Splitter Set with IR over network cable up to 60m
transmission length of up to 60m
-
supports HDCP2.2 HDMI input and output signals
-
comprehensive EDID management - Multiple built-in EDID settings
-
Switching memory function&2 switching methods
-
HDMI extension for home theaters
- description
HDMI1.4 1x2 Extender/Splitter Set with IR over network cable up to 60m

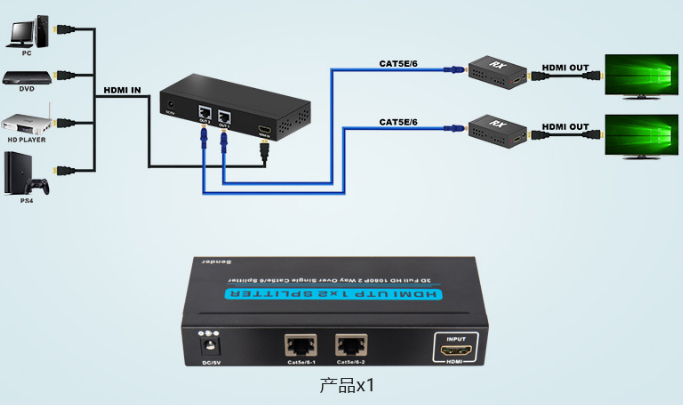

- Simultaneous splitting of one HDMI source to 2 HD displays via network cable
- Supported network cables: Cat.6 / 6A and 7
- The highest supported resolution is max. 1080p / 60Hz, with a transmission length of up to 60m
- Transmission of infrared signals for easy operation of the end devices
- Data is sent uncompressed and without delay time
- Plug & Play
Scope of delivery
- 1x transmitter unit
- 2x receiver unit
- 1x power supply DC5V/2A
- 1x IR transmitter cable
- 1x IR receiver cable
- 1x manua
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
