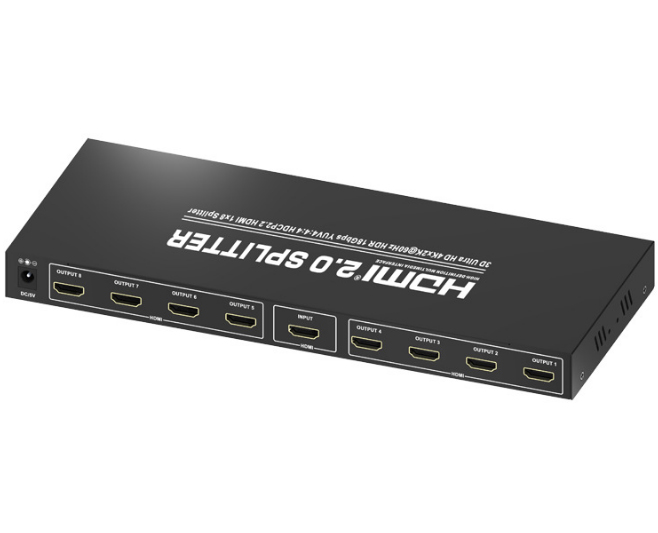

1X8 HDMI2.0 Splitter 1x IN 8x OUT, 4K2K@60hz

  • HDMI splitter supports HDMI video resolutions up to 4K @60Hz

  • supports HDCP2.2 HDMI input and output signals

  • comprehensive EDID management - Multiple built-in EDID settings

  • 1x8 4K60 HDMI splitter

  • Up to 200m HDMI1.4 extension for home theaters

  • description

  •  1X8 HDMI2.0 Splitter 1x IN 8x OUT, 4K2K@60hz

  • Expand your home entertainment system with the 4K2K@60hz splitter series.

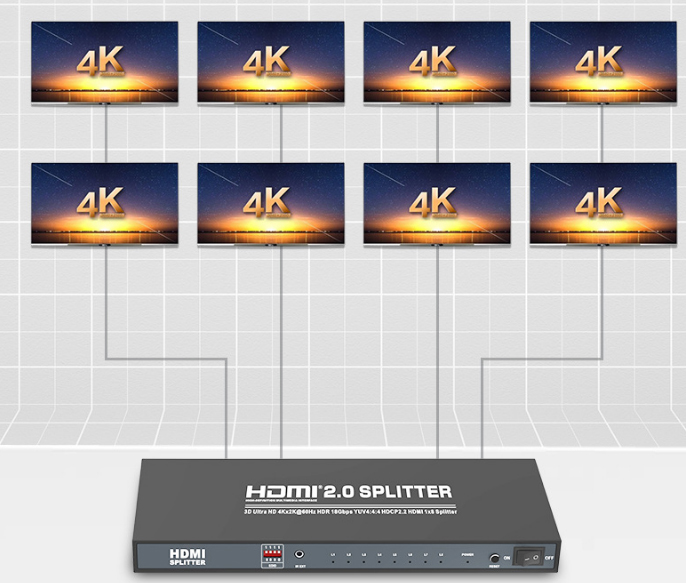

    The 4K2K@60hz splitter offer you the possibility to distribute the signals of one source device
    (e.g. DVD player, etc.) to up to 8 output devices, such as monitors
    or projectors simultaneously in 4K2K. Source devices: e.g., SAT
    Receiver, DVD Player, Blue Ray Player, PC, etc. Output devices: e.g. LCD/
    Plasma TV or a projector. Connect your HDMI devices with
    the high quality 1x8 HDMI splitter and immerse yourself in perfect pictures
    and cinema sound. Experience 3D in all its facets, a 4K resolution and the
    new integrated color spaces.

    Inputs: 1x HDMI A, 1x DC 5V
    Outputs: 8x HDMI A
    Contact material: gold plated
    Shielding: aluminum housing

    Signal transmission
    Transmission types: video and audio
    Bandwidth up to: 18 Gbit/s
    Resolution up to: 4K2K (60 Hz), 1080p (3D)
    Audio standards: Dolby Digital/Plus, Dolby TrueHD,
    DTS-HD Master Audio, DVDAudio, SA-CD
    other standards: 4K2K, UHD, 3D, HDCP, CEC, 4K Ultra
    HD (2160i/p), Full HD (1080i/p), HD ready (720i/p), SDTV (480i/p)
    Max cable length: max 10m input / max 10m output

    General Information
    Operating temperature: 0 - 50°C
    Controls: power switch, reset button
    Visual elements: LED indicator lights

    Scope of delivery
    Remote control: No
    Power supply: 5V DC





      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
