1 X4 HDMI 2.0 Splitters
HDMI splitter supports HDMI video resolutions up to 4K @60Hz
-
supports HDCP2.2 HDMI input and output signals
-
comprehensive EDID management - Multiple built-in EDID settings
-
1x4 4K60 HDMI splitter
-
Up to 200m HDMI1.4 extension for home theaters
- description

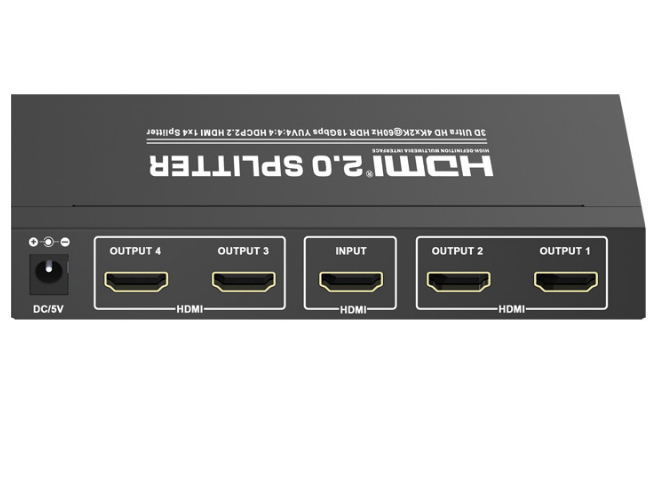

1 X4 HDMI 2.0 Splitters

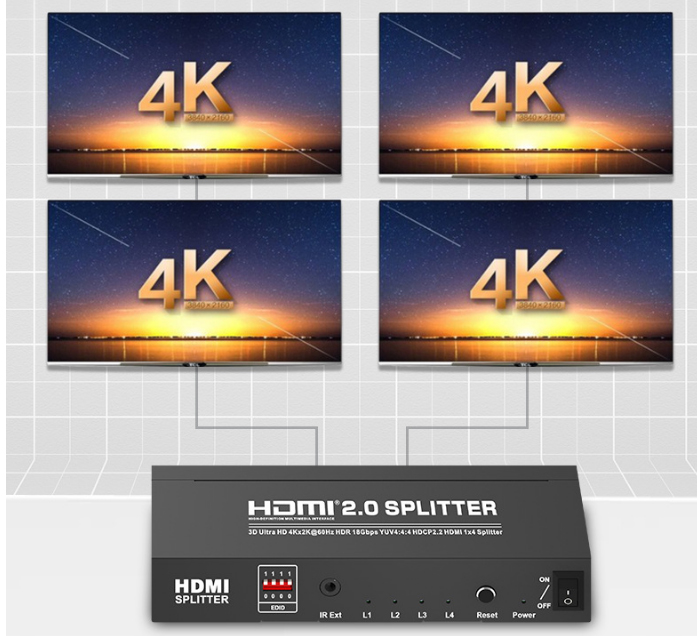

The 1-to-4 HDMI splitter supports HDMI video resolutions up to 4K @60Hz (4:4:4), 1080P 3D, multi-channel audio formats and CEC pass-through.
1x4 HDMI2.0 Splitter with Adjustable EDID
In addition to passing EDID information from the display, this 1x4 4K60 HDMI splitter provides several built-in EDID settings that can be selected via a 4-pin DIP switch on the front panel.
The EDID (Extended Display Identification Data) is used by the HDMI source device to match the video resolution to the connected display. By default, the HDMI source obtains the EDID from the first sink connected to the it. If HDMI sinks (monitors, TVs and/ or projectors) with different resolutions are connected to the it, the EDID value can be set to a fixed value using a DIP switch on the front panel to ensure video resolution compatibility.
Features of the 1x4 HDMI 2.0 distributor at a glance
1 to 4 HDMI 2.0 splitter for resolutions up to 4Kx2K/ 60Hz (4:4:4) and 1080P 3D
Supports HDMI 2.0 - with video resolution up to 4K @60Hz 4:4:4 with multi-channel audio formats (Dolby Vision)
HDCP 2.2 Compliant - The supports HDCP2.2 HDMI input and output signals.
Built-in signal enhancement equalizer (signal equalizer) - avoids signal attenuation during transmission and allows the use of longer HDMI cables.
Advanced and comprehensive EDID management - Multiple built-in EDID settings (6 build-in EDIDs) can be selected for different applications
Supports 4K to 1080p downscaling (video resolution downscaling) on all four outputs - The 4K input signal can be automatically downscaled to a 1080P output signal for compatibility with 1080P displays.
High bandwidth 18 Gbps
LEDs to indicate current operating status
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
