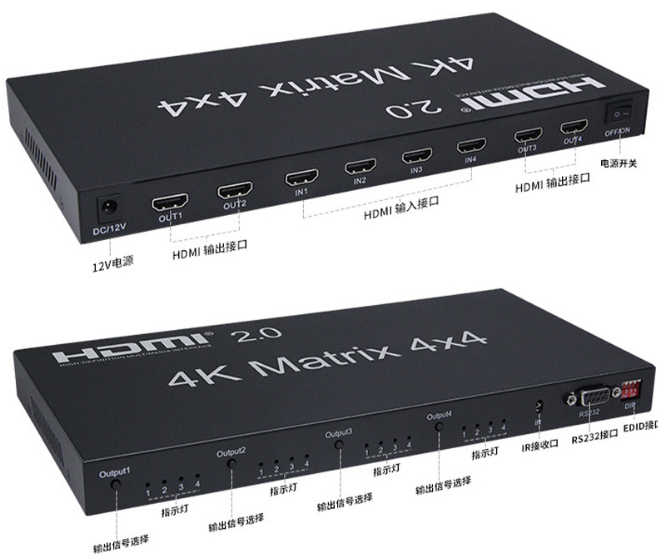

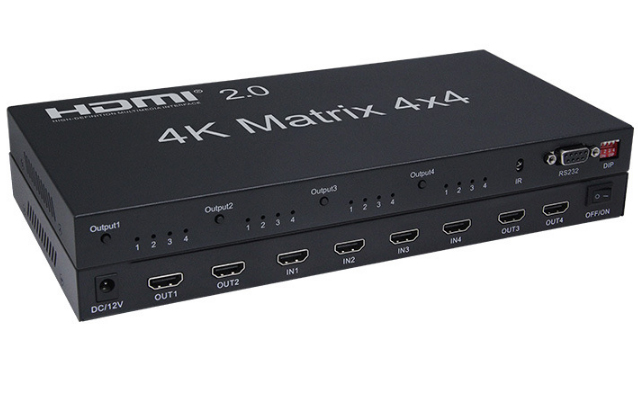

4x4 HDMI 2.0 video matrix with audio and rs232 control

  • Switches between 4 HDMI sources and 4HDMI displays

  • Supports resolutions up to 4K 60Hz and HDR signals

  • Extract audio from HDMI signal to optical port or 3.5mm audio output

  • EDID management system to monitor

  • HDCP 2.2 support

  • description

  •  4x4 HDMI 2.0 video matrix with audio and rs232 control

    Share four separate HDMI A/V signals between four different displays and switch between them in a matrix configuration
    Enjoy outstanding picture quality with support for Ultra HD resolutions up to 4K at 60 Hz
    Install the HDMI switcher as a standalone device or rack-mount it
    Support for EDID data management improves compatibility with your video source and display
    Provides remote management capability with RS232

    This 4x4 HDMI matrix switcher allows you to share four HDMI video sources between four independent displays or projectors, and switch to the active source on each display device.
    True 4K resolution at 60 Hz
    The HDMI switcher delivers a high level of audio and video performance, with superior contrast and crisp, clear images. With support for resolutions up to 4K at 60 Hz (4:4:4 pixel format, 8-bit color depth) and HDR, the Matrix Switch is ideal for conventions or trade shows, restaurants and classrooms, as well as hospital and medical applications.
    In addition, the 4K 60Hz HDMI switcher is backward compatible with previous versions of HDMI, making it easy to use with your existing devices and displays.
    The HDMI switch allows you to toggle each input, which means that different A/V sources can be displayed on each screen or one source can be displayed on all screens.
    Output and switch between four A/V sources on four independent displays
    Create a versatile 4K digital display
    Switch between sources and displays during training sessions






      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
