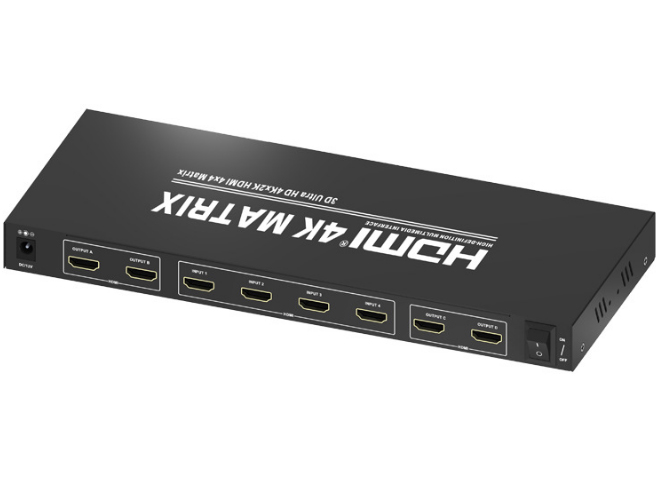

4x4 HDMI 1.4 4K@30Hz Matrix

  • Switches between 4 HDMI sources and 4 HDMI displays

  • Supports resolutions up to 4K 30Hz and HDR signals

  • Extract audio from HDMI signal to optical port or 3.5mm audio output

  • EDID management system to monitor

  • HDCP 2.2 support

  • description

  •     4x4 HDMI 1.4 4K@30Hz Matrix

    4x4 HDM1.4 Matrix 4K@30Hz | 4 in 4 Out HDMI Matrix Switcher HDCP 1.4 Video Switcher Supports IR remote control, RS-232 .

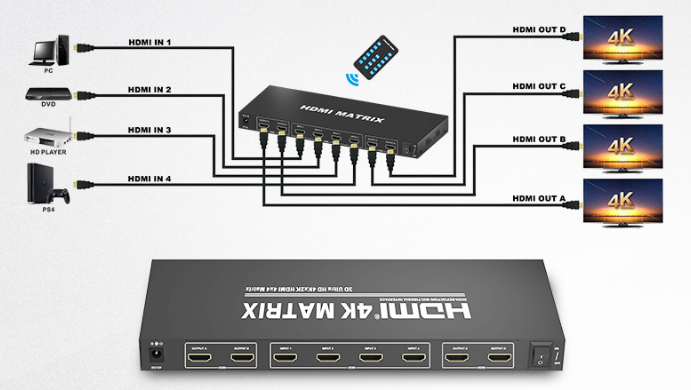

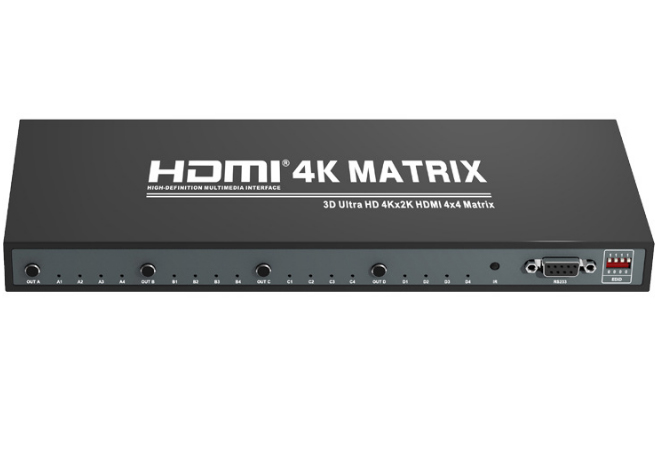

    A perfect solution to route one of 4 HDMI video sources to one of 4 HDMI screens. Allows 4 HDMI source devices to be connected to 4 HDMI screens simultaneously, while independently controlling the output in each possible array. Features a front LCD screen that displays the connection status in real time. Common scenarios are: Classrooms, auditoriums, department stores, commercial and residential AV systems, etc.
    Superior video quality and intelligent EDID management
    Supports superior video quality up to 3840x2160@30Hz (including 1080p 3D video), providing high performance video. It is HDCP 2.2 compliant. With EDID emulators on each input port, it automatically detects and analyzes the EDID of all connected HDMI displays. With EDID management, the HDMI source player outputs the best possible resolution to ensure compatibility of all HDMI displays.

    Multiple control methods and a variety of audio formats are supported
    Supports multiple control methods for system management, including front panel buttons, IR remote control, and RS-232 control. It also supports a variety of audio formats: PCM, Dolby AC3, DTS5.1, DTS7.1 and DSD audio format. No audio delays or dropouts during use.
    Switch off memory function&Mighty memory support for preset and call switcher mode






      -5 to +35℃(+23 to +95℉)


      5 to 90%RH (No Condensation)

      Video Input(Transmitter)



      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .


      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight
