200m HDMI wireless extender 1080P@60hz
HDMI1.4 wireless extender kit - 200 m
-
HDMI Standard: HDMI 1.3, HDCP 1.4
-
HDMI loop output at the transmitter
-
Output Resolution: 720 / 1080P @ 50 / 60Hz
-
HDMI Max Transmission Rate: 6.75Gbps
- description
200m HDMI wireless extender 1080P@60hz
FEATURES
Features:

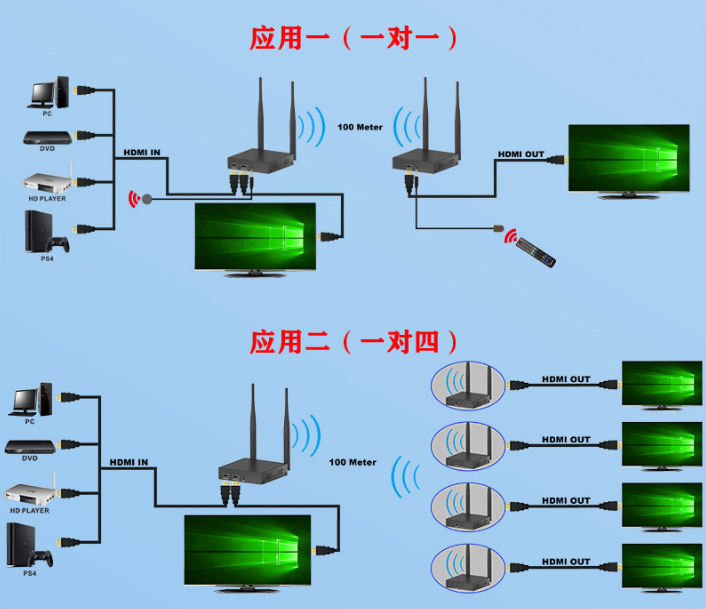

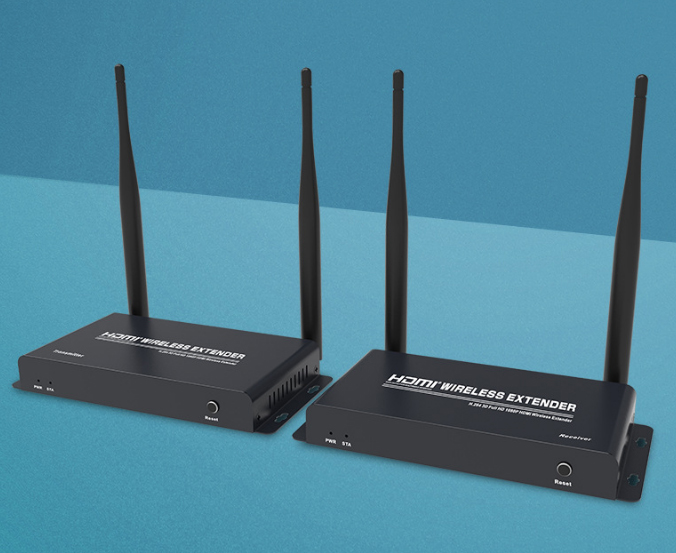

The HDMI IR signal extender, consisting of a transmitter and a receiver, enables wireless transmission of high definition HDMI signals from transmitter to receiver.

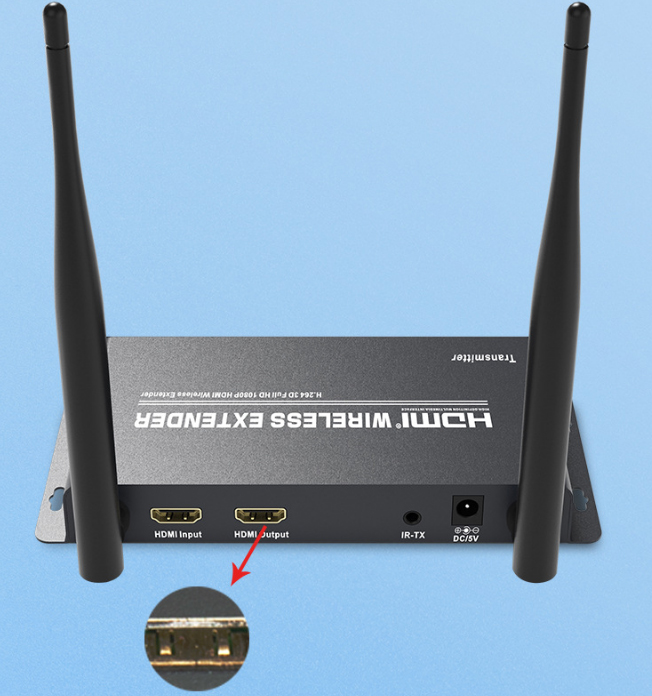

The transmitter supports one HDMI signal input and one HDMI signal output, allows the signal terminal to watch videos simultaneously.
Adopting international 2.4G / 5G wireless dual band transmission signal, higher transmission speed, more powerful anti-interference.
With external dual gain antenna, ultra-long transmission distance, up to 50-100 meters in open space.
Support 1080p resolution at 60Hz, downward compatibility with audio and video transmission, clear and stable images and sounds.
Support DDVD, DVR, IPTV, CCTV camera, satellite receiver, digital STB audio and video output devices, etc.
Easy to use, plug and play.
Features:
HDMI Standard: HDMI 1.3, HDCP 1.4
Output Resolution: 720 / 1080P @ 50 / 60Hz
HDMI Audio Format: QG 1080p
HDMI Max Transmission Rate: 6.75Gbps
Wireless Transmission Standard: IEEE 802.11a / b / g / n
Operating Frequency: 2.4GHz, 5M ISM band
Maximum wireless transmission rate: 2.4 G 150 Mbps, 5 G 300 Mbps
Wireless transmission power (IPEX): 16 ± 2dBm
Max Transmission distance: 200m (open space accessibility)
IR frequency range: 38KHz
DC Input: AC 100V-240V 50/60Hz
DC output: DC 5V / 2A
Operating Temperature: -10 ℃ ~ + 50
Operating Humidity: 10 to 80% relative humidity (non-condensing).
-
SPECIFICATIONS:
OperatingTemperatureRange
-5 to +35℃(+23 to +95℉)
OperatingHumidityRange
5 to 90%RH (No Condensation)
Video Input(Transmitter)
1xHDMI Type A, 19-pin, female
Video Output(Receiver)
1xHDMI Type A, 19-pin, female
Link(Transmitter/ Receiver)
1m~60Kmsingle / Multimode single / Duplex fiber optical cable
Module type required①
SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
Video Format
4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P
Audio Format
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
HDCP Input
HDCP 2.2, HDCP 1.4
HDCP Output
HDCP 1.4
Power consumption
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
Dimension (L×W×H)
Transmitter: 96*100*25mm
Receive: 96*100*25mm
Net Weight
475g(Pair)
.
